概述
WPF常用的表格控件是DataGrid，这个控件在前台XAML编写的话，一般列已经固定，然后给每个列去绑定数据，但是如果我的列不固定，随着运算结果变动呢？这时候DataGrid，就比较难实现这个需求，这节我就从后台代码去添加控件去实现这个功能..

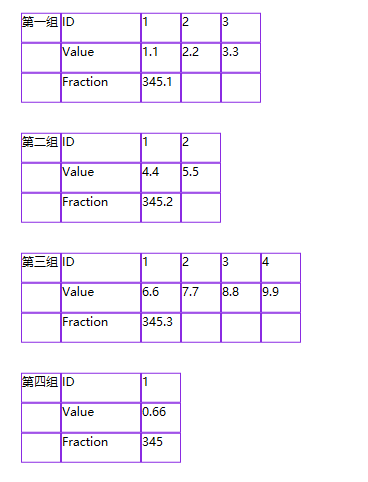

效果演示
实现方法
-. 前台XAML:
<dxlc:LayoutControl>
<Grid HorizontalAlignment="Left" VerticalAlignment="Top" cal:Message.Attach="[Event Loaded]=[Grid_Loaded($source,$eventArgs)]" />
</dxlc:LayoutControl>

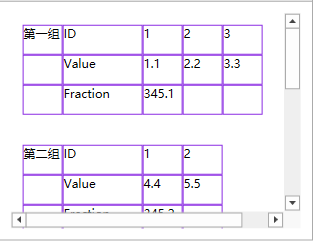

这里我把grid放到了dxlc:LayoutControl中，这样可以实现grid尺寸超出界面分配的长宽时，横纵出现滑动条：如下图
-.后台代码：
数据模型：
public class WidthMetrologyDTO
{
/// <summary>
///
/// </summary>
public bool IsMeasureSuccess { get; set; }
/// <summary>
///
/// </summary>
public double Degree { get; set; }
/// <summary>
///
/// </summary>
public string ImageFilePath { get; set; }
/// <summary>
///
/// </summary>
public double Width { get; set; }
public double EdgeNum { get; set; }
public List<EdgePosition> EdgePositions { get; set; }
}
public class EdgePosition
{
public double EdgesAmplitude { get; set; }
}
①定义grid以及数据集合：
public Grid resultDisplayGrid;
public BindableCollection<WidthMetrologyDTO> WidthMetrologyData { get; set; }
= new BindableCollection<WidthMetrologyDTO>();
②控件加载时获取grid对象：
public void Grid_Loaded(object sender, RoutedEventArgs e)
{
resultDisplayGrid = (Grid)sender;
}
③添加数据集合：
public void ResultDispaly()
{
try
{
WidthMetrologyData.Clear();
WidthMetrologyData.Add(new WidthMetrologyDTO
{
Width = 345.1,
EdgeNum = 3,
EdgePositions = new List<EdgePosition>
{
new EdgePosition(){EdgesAmplitude = 1.1},
new EdgePosition(){EdgesAmplitude = 2.2},
new EdgePosition(){EdgesAmplitude = 3.3},
},
});
WidthMetrologyData.Add(new WidthMetrologyDTO
{
Width = 345.2,
EdgeNum = 2,
EdgePositions = new List<EdgePosition>
{
new EdgePosition(){EdgesAmplitude = 4.4},
new EdgePosition(){EdgesAmplitude = 5.5},
},
});
WidthMetrologyData.Add(new WidthMetrologyDTO
{
Width = 345.3,
EdgeNum = 4,
EdgePositions = new List<EdgePosition>
{
new EdgePosition(){EdgesAmplitude = 6.6},
new EdgePosition(){EdgesAmplitude = 7.7},
new EdgePosition(){EdgesAmplitude = 8.8},
new EdgePosition(){EdgesAmplitude = 9.9},
},
});
WidthMetrologyData.Add(new WidthMetrologyDTO
{
Width = 345.0,
EdgeNum = 1,
EdgePositions = new List<EdgePosition>
{
new EdgePosition(){EdgesAmplitude = 0.66},
},
});
AddResultGrid();
}
catch (Exception ex)
{
//logger.Debug($"ResultData add fail : {ex}");
}
}
④数据表格生成
public void AddResultGrid()
{
try
{
resultDisplayGrid.Children.Clear();
var gridColumns = 2 + WidthMetrologyData.OrderByDescending(index => index.EdgePositions.Count).FirstOrDefault().EdgePositions.Count;
var gridRows = 16;
//添加grid行
for (int i = 0; i < gridColumns; i++)
{
var columnDefinition = new ColumnDefinition();
resultDisplayGrid.ColumnDefinitions.Add(columnDefinition);
if (i == 1)
{
columnDefinition.Width = new GridLength(2, GridUnitType.Star);//相对尺寸
}
else
{
columnDefinition.Width = new GridLength(1, GridUnitType.Star);
}
//columnDefinition.Width = GridLength.Auto;
}
//添加grid列
for (int i = 0; i < gridRows; i++)
{
var rowDefinition = new RowDefinition();
resultDisplayGrid.RowDefinitions.Add(rowDefinition);
rowDefinition.Height = new GridLength(30, GridUnitType.Pixel);//绝对尺寸
}
//添加数据
//var controlWidth = 100;
//var controlHeight = 30;
for (int degreeIndex = 0; degreeIndex < WidthMetrologyData.Count; degreeIndex++)
{
var rowsCount = 3;
var columnsCount = WidthMetrologyData[degreeIndex].EdgePositions.Count;
for (int row = 0; row < rowsCount; row++)
for (int column = 0; column < columnsCount + 2; column++)
{
TextBlock tb = new TextBlock();
//tb.Width = controlWidth;
//tb.Height = controlHeight;
//tb.HorizontalAlignment = HorizontalAlignment.Left;
//tb.VerticalAlignment = VerticalAlignment.Center;
Border border = new Border();
border.BorderBrush = System.Windows.Media.Brushes.BlueViolet;
border.BorderThickness = new Thickness(1);
border.Child = tb;
border.SetValue(Grid.RowProperty, row + degreeIndex * 4);
border.SetValue(Grid.ColumnProperty, column);
resultDisplayGrid.Children.Add(border);
if (row == 0 && column >= 2)
{
tb.Text = (column - 1).ToString();
}
else if (row == 1 && column >= 2)
{
tb.Text = WidthMetrologyData[degreeIndex].EdgePositions[column - 2].EdgesAmplitude.ToString();
}
else if (row == 2 && column >= 2)
{
if (column == 2)
{
tb.Text = WidthMetrologyData[degreeIndex].Width.ToString();
//tb.Width = columnsCount * controlWidth;
tb.SetValue(Grid.ColumnSpanProperty, columnsCount);
}
else
{
continue;
}
}
if (column == 0)
{
if (row == 0)
{
switch (degreeIndex)
{
case 0:
tb.Text = "第一组"; break;
case 1:
tb.Text = "第二组"; break;
case 2:
tb.Text = "第三组"; break;
case 3:
tb.Text = "第四组"; break;
default: break;
}
//tb.Height = 3 * controlHeight;
tb.SetValue(Grid.RowSpanProperty, 3);
}
else
{
continue;
}
}
if (column == 1)
{
switch (row)
{
case 0:
tb.Text = "ID"; break;
case 1:
tb.Text = "Value"; break;
case 2:
tb.Text = "Fraction"; break;
default:
tb.Text = string.Empty; break;
}
//tb.Width = controlWidth;
}
}
}
resultDisplayGrid.Width = (gridColumns + 1)* 40;
//resultDisplayGrid.Height = gridRows * controlHeight;
}
catch (Exception ex)
{
//logger.Error($"Add result grid fail,{ex}");
}
}
解释：
-. grid添加行以及尺寸设置：ridUnitType.Pixel代表绝对尺寸，GridUnitType.Star相对尺寸
var rowDefinition = new RowDefinition();
resultDisplayGrid.RowDefinitions.Add(rowDefinition);
rowDefinition.Height = new GridLength(30, GridUnitType.Pixel);//绝对尺寸
自动尺寸：
columnDefinition.Width = GridLength.Auto;-. link的使用：按照集合中EdgePositions数量降序排列后获取第一个列表值
WidthMetrologyData.OrderByDescending(index => index.EdgePositions.Count).FirstOrDefault().EdgePositions.Count;-.生成控件并添加到grid中，并通过SetValue设置控件在grid中的行列位置
TextBlock tb = new TextBlock();
//tb.Width = controlWidth;
//tb.Height = controlHeight;
//tb.HorizontalAlignment = HorizontalAlignment.Left;
//tb.VerticalAlignment = VerticalAlignment.Center;
Border border = new Border();
border.BorderBrush = System.Windows.Media.Brushes.BlueViolet;
border.BorderThickness = new Thickness(1);
border.Child = tb;
border.SetValue(Grid.RowProperty, row + degreeIndex * 4);
border.SetValue(Grid.ColumnProperty, column);
resultDisplayGrid.Children.Add(border);
源码
链接：https://pan.baidu.com/s/1mgzyTRVwvq1XpJ6y0iyVww 提取码：6666
