C# 动态生成控件

今天这个主题主要也是群里小伙伴提到的一个问题,就是如何动态的生成控件,他是想自动生成一级二级菜单这样,我这里主要是动态生成的picturebox,希望能给他起到借鉴的作用,然后举一反三完成自己的项目!

以下代码是从好几年前的一个项目中抠出来的,然后做了一些小的改动,以动态生成控件展示图片为核心!.

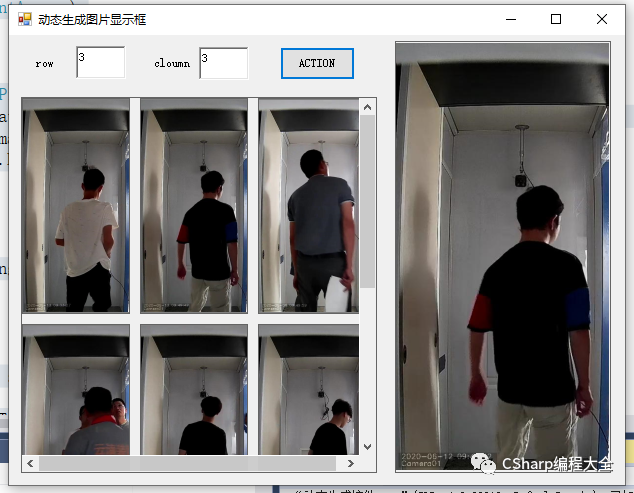

接下来介绍下项目:控件:richTextBox1,richTextBox2 代表生产的图片框的行数和列数,可以自定义,button1名字是ACTION ,点击后自动生成图片框并加载图片,生成的picture位于panel1中,每次双击pictrue,会放大图片显示到右边的图片框!

using System;using System.Drawing;using System.IO;using System.Windows.Forms;
namespace 动态生成控件{    public partial class Form1 : Form    {        public Form1(){            InitializeComponent();        }        private void Form1_Load(object sender, EventArgs e){            panel1.AutoScroll = true;//让panel显示滚动条                   }        public  string ImagePath = Application.StartupPath +"\\image\\";        string[,] ImageFromPath = new string[300, 300];        int Row = 3, Cloumn = 3;        public string AmpImagePath = string.Empty;        /// <summary>        /// 自动生成图片控件并加载图片,同时给图片控件添加双击事件        /// </summary>        /// <param name="row">生成图片控件的行数</param>        /// <param name="cloumn">生成图片控件的列数</param>        public void PictureControl(int row, int cloumn){            try            {               int ImageBoxCount = 0;               panel1.Controls.Clear();               for (int i = 0; i < row; i++)                    for (int j = 0; j < cloumn; j++)                    {                        PictureBox p = new PictureBox();                        p.Name = ImageBoxCount.ToString();                        p.Size = new System.Drawing.Size(108, 216);//长宽比例是1.25:1                        p.Top = i * 226;                        p.Left = j * 118;                        p.MouseDoubleClick += M;//鼠标双击事件                        ImageBoxCount++;                        p.BackColor = Color.Gray;                        p.SizeMode = PictureBoxSizeMode.Zoom;                        p.BorderStyle = BorderStyle.FixedSingle;                        if (IsFileInUse(ImageFromPath[i, j]) == false)                        {                                                       Stream s = File.Open(ImageFromPath[i, j], FileMode.Open);                            p.Image = Image.FromStream(s);                            s.Close();                            s.Dispose();                        }                        else                        {                            //p.Image = Image.FromFile(ImageFromPath[i, j]);                        }                        p.BackColor = Color.Gray;                        this.panel1.Controls.Add(p);                    }            }            catch(Exception e)            {                MessageBox.Show(e.ToString());            }        }        private void M(object sender, EventArgs e){            try            {                PictureBox p = sender as PictureBox;                AmpImagePath = ImageFromPath[Convert.ToInt32(p.Name) / Cloumn,Convert.ToInt32(p.Name) % Cloumn];                Stream s = File.Open(AmpImagePath, FileMode.Open);                pictureBox1.Image = Image.FromStream(s);                s.Close();            }            catch (Exception ex)            {                MessageBox.Show(ex.ToString());            }
        }        private void button1_Click(object sender, EventArgs e){            Row = int.Parse(richTextBox1.Text);            Cloumn = int.Parse(richTextBox2.Text);            for (int i = 0; i < Row; i++)                for (int j = 0; j < Cloumn; j++)                {                    ImageFromPath[i, j] = ImagePath + (i * Cloumn + j + 1).ToString() + ".jpg"; //保存每张图的路径                    //Console.WriteLine(ImagePath + (i * 3 + j + 1).ToString() + ".jpg");                }            PictureControl(Row, Cloumn);        }
        public static bool IsFileInUse(string fileName){            bool inUse = true;            FileStream fs = null;            try            {                fs = new FileStream(fileName, FileMode.Open, FileAccess.Read, FileShare.None);                inUse = false;            }            catch            {            }            finally            {                if (fs != null)                    fs.Close();            }            return inUse;//true表示正在使用,false没有使用        }
    }}

C# 动态生成控件

github代码地址:

https://github.com/zyr365/Dynamically-build-control  需要的朋友可以上去下载源码,都是我测试通过的!

学习心得:代码这东西一定记得勤动手实践,不要光看,以免眼高手低,项目也不是做的越多越好,你可以把一个项目做的很细很完美,不断添加各种功能模块上去也是很不错的学方法!
