正文
在第一部分中,我们了解了如何使用 NativeAOT
让我们用C#编写一个分析器,以及如何暴露一个伪造的 COM
对象来使用分析API。在第二部分中,我们改进了解决方案,使用实例方法替代静态方法。现在我们知道了如何与分析API进行交互,我们将编写一个源代码生成器,自动生成实现 ICorProfilerCallback
接口中声明的70多个方法所需的样板代码。
首先,我们需要手动将 ICorProfilerCallback
接口转换为C#。从技术上讲,本可以从C++头文件中自动生成这些代码,但是相同的C++代码在C#中可以用不同的方式翻译,因此了解函数的目的以正确语义进行转换十分重要。
以 JITInlining
函数为实际例子。在C++中的原型是:
-
HRESULT JITInlining(FunctionID callerId, FunctionID calleeId, BOOL *pfShouldInline);
一个简单的C#版本转换可能是:
-
HResult JITInlining(FunctionId callerId, FunctionId calleeId, in bool pfShouldInline);
但是,如果我们查看函数的文档,我们可以了解到pfShouldInline是一个应由函数自身设置的值。所以我们应该使用out关键字:
-
Result JITInlining(FunctionId callerId, FunctionId calleeId, out bool pfShouldInline);
在其他情况下,我们会根据意图使用in或ref关键字。这就是为什么我们无法完全自动化这个过程。
在将接口转换为C#之后,我们可以继续创建源代码生成器。请注意,我并不打算编写一个最先进的源代码生成器,主要原因是API非常复杂(是的,这话来自于一个教你如何用C#编写分析器的人),你可以查看Andrew Lock的精彩文章来了解如何编写高级源代码生成器。
编写源代码生成器
要创建源代码生成器,我们在解决方案中添加一个针对 netstandard2.0
的类库项目,并添加对 Microsoft.CodeAnalysis.CSharp
和 Microsoft.CodeAnalysis.Analyzers
的引用:
-
<Project Sdk="Microsoft.NET.Sdk">
-
<PropertyGroup>
-
<TargetFramework>netstandard2.0</TargetFramework>
-
<ImplicitUsings>enable</ImplicitUsings>
-
<LangVersion>latest</LangVersion>
-
<IsRoslynComponent>true</IsRoslynComponent>
-
</PropertyGroup>
-
<ItemGroup>
-
<PackageReference Include="Microsoft.CodeAnalysis.CSharp" Version="4.0.1" PrivateAssets="all" />
-
<PackageReference Include="Microsoft.CodeAnalysis.Analyzers" Version="3.3.3">
-
<PrivateAssets>all</PrivateAssets>
-
<IncludeAssets>runtime; build; native; contentfiles; analyzers; buildtransitive</IncludeAssets>
-
</PackageReference>
-
</ItemGroup>
-
</Project>
接下来,我们添加一个实现 ISourceGenerator
接口的类,并用 [Generator]
属性进行修饰:
-
[Generator]
-
public class NativeObjectGenerator : ISourceGenerator
-
{
-
public void Initialize(GeneratorInitializationContext context)
-
{
-
}
-
public void Execute(GeneratorExecutionContext context)
-
{
-
}
-
}
我们要做的第一件事是生成一个 [NativeObject]
属性。我们将用它来修饰我们想要在源代码生成器上运行的接口。我们使用 RegisterForPostInitialization
在管道早期运行这段代码:
-
[Generator]
-
public class NativeObjectGenerator : ISourceGenerator
-
{
-
public void Initialize(GeneratorInitializationContext context)
-
{
-
context.RegisterForPostInitialization(EmitAttribute);
-
}
-
public void Execute(GeneratorExecutionContext context)
-
{
-
}
-
private void EmitAttribute(GeneratorPostInitializationContext context)
-
{
-
context.AddSource("NativeObjectAttribute.g.cs", """
-
using System;
-
[AttributeUsage(AttributeTargets.Interface, Inherited = false, AllowMultiple = false)]
-
internal class NativeObjectAttribute : Attribute { }
-
""");
-
}
-
}
现在我们需要注册一个 ISyntaxContextReceiver
来检查类型并检测哪些类型被我们的 [NativeObject]
属性修饰。
-
public class SyntaxReceiver : ISyntaxContextReceiver
-
{
-
public List<INamedTypeSymbol> Interfaces { get; } = new();
-
public void OnVisitSyntaxNode(GeneratorSyntaxContext context)
-
{
-
if (context.Node is InterfaceDeclarationSyntax classDeclarationSyntax
-
&& classDeclarationSyntax.AttributeLists.Count > 0)
-
{
-
var symbol = (INamedTypeSymbol)context.SemanticModel.GetDeclaredSymbol(classDeclarationSyntax);
-
if (symbol.GetAttributes().Any(a => a.AttributeClass.ToDisplayString() == "NativeObjectAttribute"))
-
{
-
Interfaces.Add(symbol);
-
}
-
}
-
}
-
}
基本上,语法接收器将被用于访问语法树中的每个节点。我们检查该节点是否是一个接口声明,如果是,我们检查属性以查找 NativeObjectAttribute
。可能有很多事情都可以改进,特别是确认它是否是我们的 NativeObjectAttribute
,但我们认为对于我们的目的来说这已经足够好了。

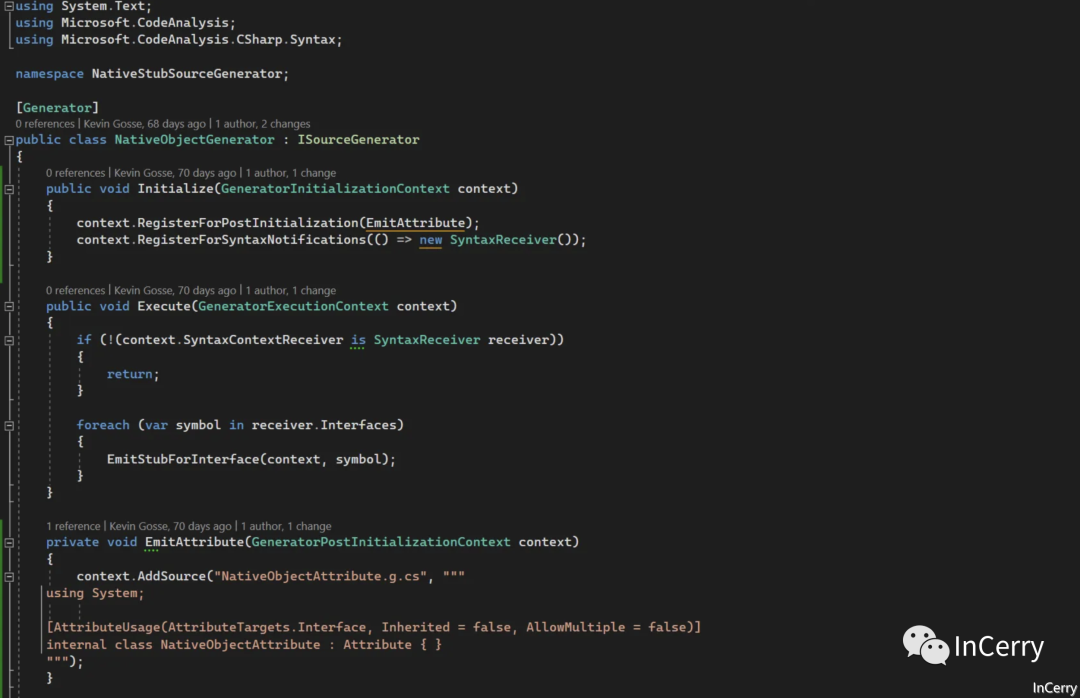

在源代码生成器初始化期间,需要注册语法接收器:
-
public void Initialize(GeneratorInitializationContext context)
-
{
-
context.RegisterForPostInitialization(EmitAttribute);
-
context.RegisterForSyntaxNotifications(() => new SyntaxReceiver());
-
}
最后,在 Execute
方法中,我们获取存储在语法接收器中的接口列表,并为其生成代码:
-
public void Execute(GeneratorExecutionContext context)
-
{
-
if (!(context.SyntaxContextReceiver is SyntaxReceiver receiver))
-
{
-
return;
-
}
-
foreach (var symbol in receiver.Interfaces)
-
{
-
EmitStubForInterface(context, symbol);
-
}
-
}
生成Native包装器
对于EmitStubForInterface方法,我们可以使用模板引擎,但是我们将依赖于一个经典的StringBuilder和Replace调用。
首先,我们创建我们的模板:
-
var sourceBuilder = new StringBuilder("""
-
using System;
-
using System.Runtime.InteropServices;
-
namespace NativeObjects
-
{
-
{visibility} unsafe class {typeName} : IDisposable
-
{
-
private {typeName}({interfaceName} implementation)
-
{
-
const int delegateCount = {delegateCount};
-
var obj = (IntPtr*)NativeMemory.Alloc((nuint)2 + delegateCount, (nuint)IntPtr.Size);
-
var vtable = obj + 2;
-
*obj = (IntPtr)vtable;
-
var handle = GCHandle.Alloc(implementation);
-
*(obj + 1) = GCHandle.ToIntPtr(handle);
-
{functionPointers}
-
Object = (IntPtr)obj;
-
}
-
public IntPtr Object { get; private set; }
-
public static {typeName} Wrap({interfaceName} implementation) => new(implementation);
-
public static implicit operator IntPtr({typeName} stub) => stub.Object;
-
~{typeName}()
-
{
-
Dispose();
-
}
-
public void Dispose()
-
{
-
if (Object != IntPtr.Zero)
-
{
-
NativeMemory.Free((void*)Object);
-
Object = IntPtr.Zero;
-
}
-
GC.SuppressFinalize(this);
-
}
-
private static class Exports
-
{
-
{exports}
-
}
-
}
-
}
-
""");
如果你对某些部分不理解,请记得查看前一篇文章。这里唯一的新内容是析构函数和 Dispose
方法,我们在其中调用 NativeMemory.Free
来释放为该对象分配的内存。接下来,我们需要填充所有的模板部分:{visibility}
、 {typeName}
、 {interfaceName}
、 {delegateCount}
、 {functionPointers}
和 {exports}
。
首先是简单的部分:
-
var interfaceName = symbol.ToString();
-
var typeName = $"{symbol.Name}";
-
var visibility = symbol.DeclaredAccessibility.ToString().ToLower();
-
// To be filled later
-
int delegateCount = 0;
-
var exports = new StringBuilder();
-
var functionPointers = new StringBuilder();
对于一个接口 MyProfiler.ICorProfilerCallback
,我们将生成一个类型为 NativeObjects.ICorProfilerCallback
的包装器。这就是为什么我们将完全限定名存储在 interfaceName
(= MyProfiler.ICorProfilerCallback
)中,而仅将类型名存储在 typeName
(= ICorProfilerCallback
)中。
接下来我们想要生成导出列表及其函数指针。我希望源代码生成器支持继承,以避免代码重复,因为 ICorProfilerCallback13
实现了 ICorProfilerCallback12
,而 ICorProfilerCallback12
本身又实现了 ICorProfilerCallback11
,依此类推。因此我们提取目标接口继承自的接口列表,并为它们中的每一个提取方法:
-
var interfaceList = symbol.AllInterfaces.ToList();
-
interfaceList.Reverse();
-
interfaceList.Add(symbol);
-
foreach (var @interface in interfaceList)
-
{
-
foreach (var member in @interface.GetMembers())
-
{
-
if (member is not IMethodSymbol method)
-
{
-
continue;
-
}
-
// TODO: Inspect the method
-
}
-
}
对于一个 QueryInterface(inGuidguid,outIntPtrptr)
方法,我们将生成的导出看起来像这样:
-
[UnmanagedCallersOnly]
-
public static int QueryInterface(IntPtr* self, Guid* __arg1, IntPtr* __arg2)
-
{
-
var handleAddress = *(self + 1);
-
var handle = GCHandle.FromIntPtr(handleAddress);
-
var obj = (IUnknown)handle.Target;
-
var result = obj.QueryInterface(*__arg1, out var __local2);
-
*__arg2 = __local2;
-
return result;
-
}
由于这些方法是实例方法,我们添加了 IntPtr*self
参数。另外,如果托管接口中的函数带有 in/out/ref
关键字修饰,我们将参数声明为指针类型,因为 UnmanagedCallersOnly
方法不支持 in/out/ref
。
生成导出所需的代码为:
-
var parameterList = new StringBuilder();
-
parameterList.Append("IntPtr* self");
-
foreach (var parameter in method.Parameters)
-
{
-
var isPointer = parameter.RefKind == RefKind.None ? "" : "*";
-
parameterList.Append($", {parameter.Type}{isPointer} __arg{parameter.Ordinal}");
-
}
-
exports.AppendLine($" [UnmanagedCallersOnly]");
-
exports.AppendLine($" public static {method.ReturnType} {method.Name}({parameterList})");
-
exports.AppendLine($" {{");
-
exports.AppendLine($" var handle = GCHandle.FromIntPtr(*(self + 1));");
-
exports.AppendLine($" var obj = ({interfaceName})handle.Target;");
-
exports.Append($" ");
-
if (!method.ReturnsVoid)
-
{
-
exports.Append("var result = ");
-
}
-
exports.Append($"obj.{method.Name}(");
-
for (int i = 0; i < method.Parameters.Length; i++)
-
{
-
if (i > 0)
-
{
-
exports.Append(", ");
-
}
-
if (method.Parameters[i].RefKind == RefKind.In)
-
{
-
exports.Append($"*__arg{i}");
-
}
-
else if (method.Parameters[i].RefKind is RefKind.Out)
-
{
-
exports.Append($"out var __local{i}");
-
}
-
else
-
{
-
exports.Append($"__arg{i}");
-
}
-
}
-
exports.AppendLine(");");
-
for (int i = 0; i < method.Parameters.Length; i++)
-
{
-
if (method.Parameters[i].RefKind is RefKind.Out)
-
{
-
exports.AppendLine($" *__arg{i} = __local{i};");
-
}
-
}
-
if (!method.ReturnsVoid)
-
{
-
exports.AppendLine($" return result;");
-
}
-
exports.AppendLine($" }}");
-
exports.AppendLine();
-
exports.AppendLine();
对于函数指针,给定与前面相同的方法,我们希望建立:
-
*(vtable + 1) = (IntPtr)(delegate* unmanaged<IntPtr*, Guid*, IntPtr*>)&Exports.QueryInterface;
生成代码如下:
-
var sourceArgsList = new StringBuilder();
-
sourceArgsList.Append("IntPtr _");
-
for (int i = 0; i < method.Parameters.Length; i++)
-
{
-
sourceArgsList.Append($", {method.Parameters[i].OriginalDefinition} a{i}");
-
}
-
functionPointers.Append($" *(vtable + {delegateCount}) = (IntPtr)(delegate* unmanaged<IntPtr*");
-
for (int i = 0; i < method.Parameters.Length; i++)
-
{
-
functionPointers.Append($", {method.Parameters[i].Type}");
-
if (method.Parameters[i].RefKind != RefKind.None)
-
{
-
functionPointers.Append("*");
-
}
-
}
-
if (method.ReturnsVoid)
-
{
-
functionPointers.Append(", void");
-
}
-
else
-
{
-
functionPointers.Append($", {method.ReturnType}");
-
}
-
functionPointers.AppendLine($">)&Exports.{method.Name};");
-
delegateCount++;
我们在接口的每个方法都完成了这个操作后,我们只需替换模板中的值并添加生成的源文件:
-
sourceBuilder.Replace("{typeName}", typeName);
-
sourceBuilder.Replace("{visibility}", visibility);
-
sourceBuilder.Replace("{exports}", exports.ToString());
-
sourceBuilder.Replace("{interfaceName}", interfaceName);
-
sourceBuilder.Replace("{delegateCount}", delegateCount.ToString());
-
sourceBuilder.Replace("{functionPointers}", functionPointers.ToString());
-
context.AddSource($"{symbol.ContainingNamespace?.Name ?? "_"}.{symbol.Name}.g.cs", sourceBuilder.ToString());
就这样,我们的源代码生成器现在准备好了。
使用生成的代码
要使用我们的源代码生成器,我们可以声明 IUnknown
、 IClassFactory
和 ICorProfilerCallback
接口,并用 [NativeObject]
属性修饰它们:
-
[NativeObject]
-
public interface IUnknown
-
{
-
HResult QueryInterface(in Guid guid, out IntPtr ptr);
-
int AddRef();
-
int Release();
-
}
-
[NativeObject]
-
internal interface IClassFactory : IUnknown
-
{
-
HResult CreateInstance(IntPtr outer, in Guid guid, out IntPtr instance);
-
HResult LockServer(bool @lock);
-
}
-
[NativeObject]
-
public unsafe interface ICorProfilerCallback : IUnknown
-
{
-
HResult Initialize(IntPtr pICorProfilerInfoUnk);
-
// 70+ 多个方法,在这里省略
-
}
然后我们实现 IClassFactory
并调用 NativeObjects.IClassFactory.Wrap
来创建本机包装器并暴露我们的 ICorProfilerCallback
实例:
-
public unsafe class ClassFactory : IClassFactory
-
{
-
private NativeObjects.IClassFactory _classFactory;
-
private CorProfilerCallback2 _corProfilerCallback;
-
public ClassFactory()
-
{
-
_classFactory = NativeObjects.IClassFactory.Wrap(this);
-
}
-
// The native wrapper has an implicit cast operator to IntPtr
-
public IntPtr Object => _classFactory;
-
public HResult CreateInstance(IntPtr outer, in Guid guid, out IntPtr instance)
-
{
-
Console.WriteLine("[Profiler] ClassFactory - CreateInstance");
-
_corProfilerCallback = new();
-
instance = _corProfilerCallback.Object;
-
return HResult.S_OK;
-
}
-
public HResult LockServer(bool @lock)
-
{
-
return default;
-
}
-
public HResult QueryInterface(in Guid guid, out IntPtr ptr)
-
{
-
Console.WriteLine("[Profiler] ClassFactory - QueryInterface - " + guid);
-
if (guid == KnownGuids.ClassFactoryGuid)
-
{
-
ptr = Object;
-
return HResult.S_OK;
-
}
-
ptr = IntPtr.Zero;
-
return HResult.E_NOTIMPL;
-
}
-
public int AddRef()
-
{
-
return 1; // TODO: 做实际的引用计数
-
}
-
public int Release()
-
{
-
return 0; // TODO: 做实际的引用计数
-
}
-
}
并在 DllGetClassObject
中暴露它:
-
public class DllMain
-
{
-
private static ClassFactory Instance;
-
[UnmanagedCallersOnly(EntryPoint = "DllGetClassObject")]
-
public static unsafe int DllGetClassObject(void* rclsid, void* riid, nint* ppv)
-
{
-
Console.WriteLine("[Profiler] DllGetClassObject");
-
Instance = new ClassFactory();
-
*ppv = Instance.Object;
-
return 0;
-
}
-
}
最后,我们可以实现 ICorProfilerCallback
的实例:
-
public unsafe class CorProfilerCallback2 : ICorProfilerCallback2
-
{
-
private static readonly Guid ICorProfilerCallback2Guid = Guid.Parse("8a8cc829-ccf2-49fe-bbae-0f022228071a");
-
private readonly NativeObjects.ICorProfilerCallback2 _corProfilerCallback2;
-
public CorProfilerCallback2()
-
{
-
_corProfilerCallback2 = NativeObjects.ICorProfilerCallback2.Wrap(this);
-
}
-
public IntPtr Object => _corProfilerCallback2;
-
public HResult Initialize(IntPtr pICorProfilerInfoUnk)
-
{
-
Console.WriteLine("[Profiler] ICorProfilerCallback2 - Initialize");
-
// TODO: To be implemented in next article
-
return HResult.S_OK;
-
}
-
public HResult QueryInterface(in Guid guid, out IntPtr ptr)
-
{
-
if (guid == ICorProfilerCallback2Guid)
-
{
-
Console.WriteLine("[Profiler] ICorProfilerCallback2 - QueryInterface");
-
ptr = Object;
-
return HResult.S_OK;
-
}
-
ptr = IntPtr.Zero;
-
return HResult.E_NOTIMPL;
-
}
-
// Stripped for brevity: the default implementation of all 70+ methods of the interface
-
// Automatically generated by the IDE
-
}
如果我们使用一个测试应用程序运行它,我们会发现这些功能能按预期工作:
-
[Profiler] DllGetClassObject
-
[Profiler] ClassFactory - CreateInstance
-
[Profiler] ICorProfilerCallback2 - QueryInterface
-
[Profiler] ICorProfilerCallback2 - Initialize
-
Hello, World!
在下一步中,我们将处理拼图的最后一个缺失部分:实现ICorProfilerCallback.Initialize方法并获取ICorProfilerInfo的实例。这样我们就拥有了与性能分析器API实际交互所需的一切。
