C#一个基于.NET Core3.1的开源项目帮你彻底搞懂WPF框架Prism

--概述

这个项目演示了如何在WPF中使用各种Prism功能的示例。如果您刚刚开始使用Prism,建议您从第一个示例开始,按顺序从列表中开始。每个示例都基于前一个示例的概念。.

此项目平台框架:.NET Core 3.1

Prism版本:8.0.0.1909

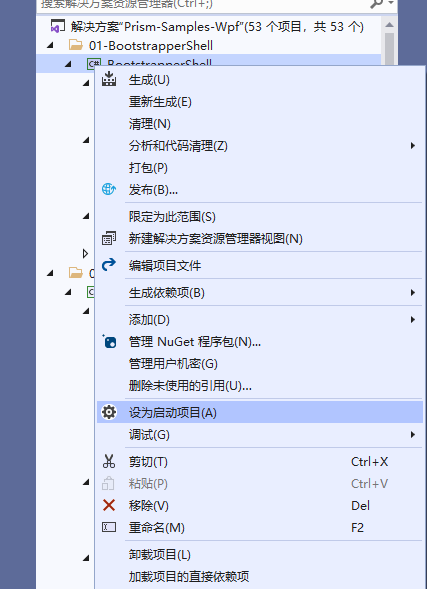

提示:这些项目都在同一解决方法下,需要依次打开运行,可以选中项目-》右键-》设置启动项目,然后运行:

C#一个基于.NET Core3.1的开源项目帮你彻底搞懂WPF框架Prism

目录介绍

Topic 描述
Bootstrapper and the Shell 创建一个基本的引导程序和shell
Regions 创建一个区域
Custom Region Adapter 为StackPanel创建自定义区域适配器
View Discovery 使用视图发现自动注入视图
View Injection 使用视图注入手动添加和删除视图
View Activation/Deactivation 手动激活和停用视图
Modules with App.config 使用应用加载模块。配置文件
Modules with Code 使用代码加载模块
Modules with Directory 从目录加载模块
Modules loaded manually 使用IModuleManager手动加载模块
ViewModelLocator 使用ViewModelLocator
ViewModelLocator - Change Convention 更改ViewModelLocator命名约定
ViewModelLocator - Custom Registrations 为特定视图手动注册ViewModels
DelegateCommand 使用DelegateCommand和DelegateCommand<T>
CompositeCommands 了解如何使用CompositeCommands作为单个命令调用多个命令
IActiveAware Commands 使您的命令IActiveAware仅调用激活的命令
Event Aggregator 使用IEventAggregator
Event Aggregator - Filter Events 订阅事件时筛选事件
RegionContext 使用RegionContext将数据传递到嵌套区域
Region Navigation 请参见如何实现基本区域导航
Navigation Callback 导航完成后获取通知
Navigation Participation 通过INavigationAware了解视图和视图模型导航参与
Navigate to existing Views 导航期间控制视图实例
Passing Parameters 将参数从视图/视图模型传递到另一个视图/视图模型
Confirm/cancel Navigation 使用IConfirmNavigationReqest界面确认或取消导航
Controlling View lifetime 使用IRegionMemberLifetime自动从内存中删除视图
Navigation Journal 了解如何使用导航日志

部分项目演示和介绍

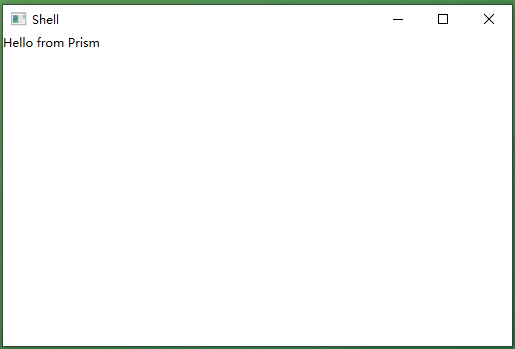

① BootstrapperShell启动界面:

C#一个基于.NET Core3.1的开源项目帮你彻底搞懂WPF框架Prism

这个主要演示Prism框架搭建的用法:

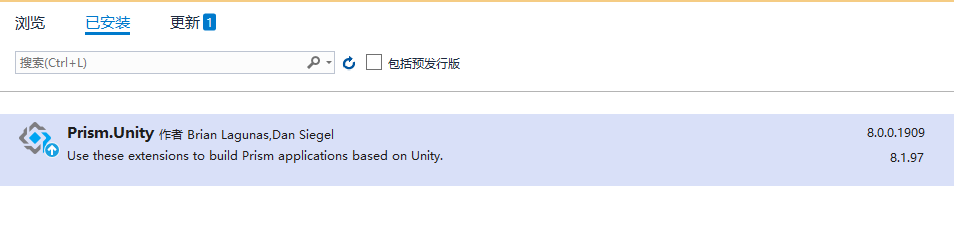

step1:在nuget上引用Prsim.Unity

C#一个基于.NET Core3.1的开源项目帮你彻底搞懂WPF框架Prism

step2:修改App.xaml:设置引导程序

<Application x:Class="BootstrapperShell.App"
             xmlns="http://schemas.microsoft.com/winfx/2006/xaml/presentation"
             xmlns:x="http://schemas.microsoft.com/winfx/2006/xaml"
             xmlns:local="clr-namespace:BootstrapperShell">
    <Application.Resources>
    </Application.Resources>
</Application>
public partial class App : Application
    {
        protected override void OnStartup(StartupEventArgs e)
        {
            base.OnStartup(e);
            var bootstrapper = new Bootstrapper();
            bootstrapper.Run();
        }
    }

step3:在引导程序中设置启动项目:

using Unity;
using Prism.Unity;
using BootstrapperShell.Views;
using System.Windows;
using Prism.Ioc;
namespace BootstrapperShell
{
    class Bootstrapper : PrismBootstrapper
    {
        protected override DependencyObject CreateShell()
        {
            return Container.Resolve<MainWindow>();
        }
        protected override void RegisterTypes(IContainerRegistry containerRegistry)
        {

        }
    }
}

step4:在MainWindow.xaml中显示个字符串

<Window x:Class="BootstrapperShell.Views.MainWindow"
        xmlns="http://schemas.microsoft.com/winfx/2006/xaml/presentation"
        xmlns:x="http://schemas.microsoft.com/winfx/2006/xaml"
        Title="Shell" Height="350" Width="525">
    <Grid>
        <ContentControl Content="Hello from Prism"  />
    </Grid>
</Window>

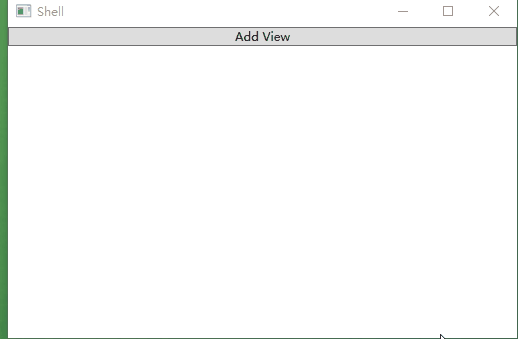

②ViewInjection:视图注册

C#一个基于.NET Core3.1的开源项目帮你彻底搞懂WPF框架Prism

MainWindow.xaml:通过ContentControl 关联视图

<Window x:Class="ViewInjection.Views.MainWindow"
        xmlns="http://schemas.microsoft.com/winfx/2006/xaml/presentation"
        xmlns:x="http://schemas.microsoft.com/winfx/2006/xaml"
        xmlns:prism="http://prismlibrary.com/"
        Title="Shell" Height="350" Width="525">
    <DockPanel LastChildFill="True">
        <Button DockPanel.Dock="Top" Click="Button_Click">Add View</Button>
        <ContentControl prism:RegionManager.RegionName="ContentRegion" />
    </DockPanel>
</Window>

MainWindow.xaml.cs:鼠标点击后通过IRegion 接口注册视图

public partial class MainWindow : Window
    {
        IContainerExtension _container;
        IRegionManager _regionManager;
        public MainWindow(IContainerExtension container, IRegionManager regionManager)
        {
            InitializeComponent();
            _container = container;
            _regionManager = regionManager;
        }
        private void Button_Click(object sender, RoutedEventArgs e)
        {
            var view = _container.Resolve<ViewA>();
            IRegion region = _regionManager.Regions["ContentRegion"];
            region.Add(view);
        }
    }

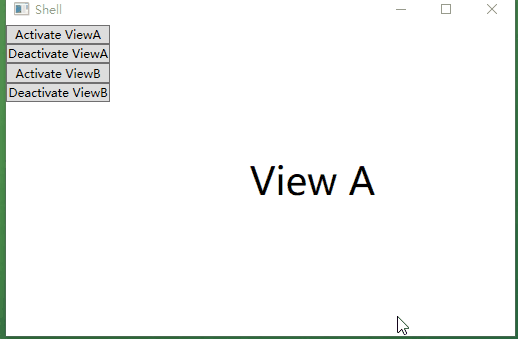

③ActivationDeactivation:视图激活和注销

C#一个基于.NET Core3.1的开源项目帮你彻底搞懂WPF框架Prism

MainWindow.xaml.cs:这里在窗体构造函数中注入了一个容器扩展接口和一个regin管理器接口,分别用来装载视图和注册regin,窗体的激活和去激活分别通过regions的Activate和Deactivate方法实现

public partial class MainWindow : Window
    {
        IContainerExtension _container;
        IRegionManager _regionManager;
        IRegion _region;

        ViewA _viewA;
        ViewB _viewB;

        public MainWindow(IContainerExtension container, IRegionManager regionManager)
        {
            InitializeComponent();
            _container = container;
            _regionManager = regionManager;

            this.Loaded += MainWindow_Loaded;
        }

        private void MainWindow_Loaded(object sender, RoutedEventArgs e)
        {
            _viewA = _container.Resolve<ViewA>();
            _viewB = _container.Resolve<ViewB>();

            _region = _regionManager.Regions["ContentRegion"];

            _region.Add(_viewA);
            _region.Add(_viewB);
        }

        private void Button_Click(object sender, RoutedEventArgs e)
        {
            //activate view a
            _region.Activate(_viewA);
        }

        private void Button_Click_1(object sender, RoutedEventArgs e)
        {
            //deactivate view a
            _region.Deactivate(_viewA);
        }

        private void Button_Click_2(object sender, RoutedEventArgs e)
        {
            //activate view b
            _region.Activate(_viewB);
        }

        private void Button_Click_3(object sender, RoutedEventArgs e)
        {
            //deactivate view b
            _region.Deactivate(_viewB);
        }
    }

④UsingEventAggregator:事件发布订阅

C#一个基于.NET Core3.1的开源项目帮你彻底搞懂WPF框架Prism

事件类定义:

public class MessageSentEvent : PubSubEvent<string>
    {
    }

注册两个组件:ModuleA和ModuleB

 protected override void ConfigureModuleCatalog(IModuleCatalog moduleCatalog)
        {
            moduleCatalog.AddModule<ModuleA.ModuleAModule>();
            moduleCatalog.AddModule<ModuleB.ModuleBModule>();
        }

ModuleAModule 中注册视图MessageView

public class ModuleAModule : IModule
    {
        public void OnInitialized(IContainerProvider containerProvider)
        {
            var regionManager = containerProvider.Resolve<IRegionManager>();
            regionManager.RegisterViewWithRegion("LeftRegion", typeof(MessageView));
        }

        public void RegisterTypes(IContainerRegistry containerRegistry)
        {

        }
    }

MessageView.xaml:视图中给button俺妞妞绑定命令

<UserControl x:Class="ModuleA.Views.MessageView"
             xmlns="http://schemas.microsoft.com/winfx/2006/xaml/presentation"
             xmlns:x="http://schemas.microsoft.com/winfx/2006/xaml"
             xmlns:prism="http://prismlibrary.com/"
             prism:ViewModelLocator.AutoWireViewModel="True" Padding="25">
    <StackPanel>
        <TextBox Text="{Binding Message}" Margin="5"/>
        <Button Command="{Binding SendMessageCommand}" Content="Send Message" Margin="5"/>
    </StackPanel>
</UserControl>

MessageViewModel.cs:在vm中把界面绑定的命令委托给SendMessage,然后在方法SendMessage中发布消息:

using Prism.Commands;
using Prism.Events;
using Prism.Mvvm;
using UsingEventAggregator.Core;
namespace ModuleA.ViewModels
{
    public class MessageViewModel : BindableBase
    {
        IEventAggregator _ea;

        private string _message = "Message to Send";
        public string Message
        {
            get { return _message; }
            set { SetProperty(ref _message, value); }
        }

        public DelegateCommand SendMessageCommand { get; private set; }

        public MessageViewModel(IEventAggregator ea)
        {
            _ea = ea;
            SendMessageCommand = new DelegateCommand(SendMessage);
        }

        private void SendMessage()
        {
            _ea.GetEvent<MessageSentEvent>().Publish(Message);
        }
    }
}

在MessageListViewModel 中接收并显示接收到的消息:

public class MessageListViewModel : BindableBase
    {
        IEventAggregator _ea;

        private ObservableCollection<string> _messages;
        public ObservableCollection<string> Messages
        {
            get { return _messages; }
            set { SetProperty(ref _messages, value); }
        }

        public MessageListViewModel(IEventAggregator ea)
        {
            _ea = ea;
            Messages = new ObservableCollection<string>();

            _ea.GetEvent<MessageSentEvent>().Subscribe(MessageReceived);
        }

        private void MessageReceived(string message)
        {
            Messages.Add(message);
        }
    }

以上就是这个开源项目比较经典的几个入门实例,其它就不展开讲解了,有兴趣的可以下载源码自己阅读学习。

源码下载

github访问速度较慢,所以我下载了一份放到的百度网盘

百度网盘链接:https://pan.baidu.com/s/10Gyks2w-R4B_3z9Jj5mRcA    提取码:0000

开源项目链接:https://github.com/PrismLibrary/Prism-Samples-Wpf
