.NET 6中gRPC注册到Consul

一、简介

上一篇文章介绍了《.NET Core 中使用gRPC》,在微服务中,我们通常要把服务做成服务注册,服务发现的方式,那么这里来说一下gRPC是如何注册到Consul中的。

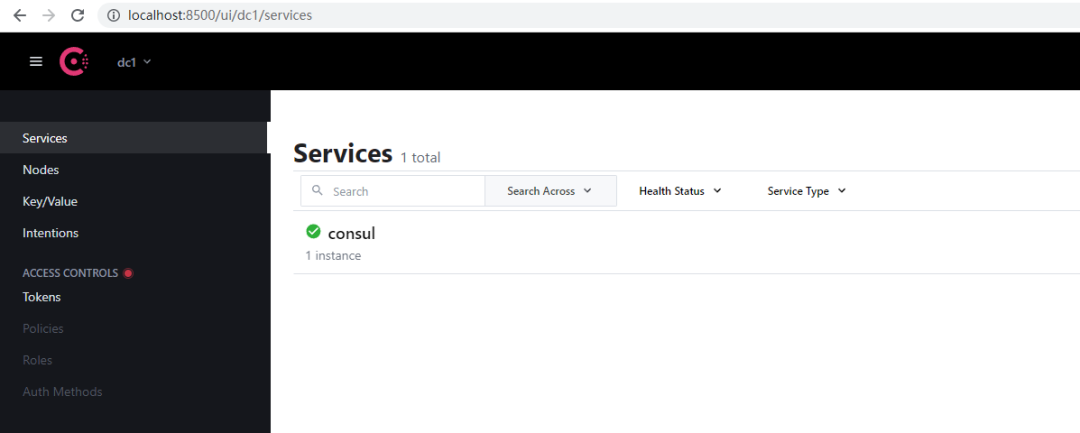

Consul的安装这里就不介绍了,在之前的篇文章中已经写过:Consul+Ocelot+Polly在.NetCore中使用(.NET5)-Consul服务注册,服务发现这里Consul已经安装好。.

.NET 6中gRPC注册到Consul

二、gRPC注册到Consul

1、扩展gRPC注册到Consul封装类

这里沿用上一篇的gRPC的代码,如果服务带api和gRPC的话用http的方式或gRPC的方式注册到可以,http的方式上面文章中的Consul注册和发现中已经有,这里介绍单gRPC的服务的注册。

先在appsettings.json中加入Consul信息代码

{
  "Logging": {
    "LogLevel": {
      "Default": "Information",
      "Microsoft.AspNetCore": "Warning"
    }
  },
  "AllowedHosts": "*",
  "Kestrel": {
    "EndpointDefaults": {
      "Protocols": "Http2"
    }
  },
  "Consul": {
    "consulAddress": "http://127.0.0.1:8500",
    "serviceName": "api_gRPC",
    "currentIp": "127.0.0.1",
    "currentPort": "5246"
  }
}

然后新建ConsulRegister.cs封装注册到Consul的类

/// <summary>
/// Consul注册
/// </summary>
public static class ConsulRegister
{
    //服务注册
    public static IApplicationBuilder UseConsul(this IApplicationBuilder app, IConfiguration configuration)
    {
        // 获取主机生命周期管理接口
        var lifetime = app.ApplicationServices.GetRequiredService<IHostApplicationLifetime>();

        ConsulClient client = new ConsulClient(c =>
        {
            c.Address = new Uri(configuration["Consul:consulAddress"]);
            c.Datacenter = "dc1";
        });
        string ip = configuration["ip"]; //优先接收变量的值
        string port = configuration["port"]; //优先接收变量的值
        string currentIp = configuration["Consul:currentIP"];
        string currentPort = configuration["Consul:currentPort"];

        ip = string.IsNullOrEmpty(ip) ? currentIp : ip; //当前程序的IP
        port = string.IsNullOrEmpty(port) ? currentPort : port; //当前程序的端口
        string serviceId = $"service:{ip}:{port}";//服务ID,一个服务是唯一的
        //服务注册
        client.Agent.ServiceRegister(new AgentServiceRegistration()
        {
            ID = serviceId, //唯一的
            Name = configuration["Consul:serviceName"], //组名称-Group
            Address = ip, //ip地址
            Port = int.Parse(port), //端口
            Tags = new string[] { "api站点" },
            Check = new AgentServiceCheck()
            {
                Interval = TimeSpan.FromSeconds(10),//多久检查一次心跳
                GRPC = $"{ip}:{port}", //gRPC注册特有
                GRPCUseTLS=false,//支持http
                Timeout = TimeSpan.FromSeconds(5),//超时时间
                DeregisterCriticalServiceAfter = TimeSpan.FromSeconds(5) //服务停止多久后注销服务
            }

        }).Wait();
        //应用程序终止时,注销服务
        lifetime.ApplicationStopping.Register(() =>
        {
            client.Agent.ServiceDeregister(serviceId).Wait();
        });
        return app;
    }
}

Program.cs增加使用这个扩展类

using GrpcDemo.Service.Services;
using GrpcDemo.Service.Utils;

var builder = WebApplication.CreateBuilder(args);

// Additional configuration is required to successfully run gRPC on macOS.
// For instructions on how to configure Kestrel and gRPC clients on macOS, visit https://go.microsoft.com/fwlink/?linkid=2099682

// Add services to the container.
builder.Services.AddGrpc();

var app = builder.Build();
IConfiguration _configuration = builder.Configuration;

// Configure the HTTP request pipeline.
app.MapGrpcService<GreeterService>();
app.MapGrpcService<OrderService>();
app.MapGrpcService<HealthCheckService>();
app.MapGet("/", () => "Communication with gRPC endpoints must be made through a gRPC client. To learn how to create a client, visit: https://go.microsoft.com/fwlink/?linkid=2086909");

app.UseConsul(_configuration);
app.Run();

二、创建健康检查gRPC服务

1、新建健康检查proto文件HealthCheck.proto

syntax = "proto3";

package grpc.health.v1;

message HealthCheckRequest {
    string service = 1;
}

message HealthCheckResponse {
    enum ServingStatus {
        UNKNOWN = 0;
        SERVING = 1;
        NOT_SERVING = 2;
    }
    ServingStatus status = 1;
}

service Health {
    rpc Check(HealthCheckRequest) returns (HealthCheckResponse);

    rpc Watch(HealthCheckRequest) returns (stream HealthCheckResponse);
}

2、新建健康检查服务实现上面proto协议HealthCheckService.cs

public class HealthCheckService : Health.HealthBase
{
    public override Task<HealthCheckResponse> Check(HealthCheckRequest request, ServerCallContext context)
    {
        Console.WriteLine($"This is {nameof(HealthCheckService)} Check ");
        //TODO:检查逻辑
        return Task.FromResult(new HealthCheckResponse() { Status = HealthCheckResponse.Types.ServingStatus.Serving });
    }

    public override async Task Watch(HealthCheckRequest request, IServerStreamWriter<HealthCheckResponse> responseStream, ServerCallContext context)
    {
        //TODO:检查逻辑
        await responseStream.WriteAsync(new HealthCheckResponse()
        { Status = HealthCheckResponse.Types.ServingStatus.Serving });
    }
}

3、在Program.cs中把服务注册到gRPC管道

using GrpcDemo.Service.Services;
using GrpcDemo.Service.Utils;

var builder = WebApplication.CreateBuilder(args);

// Additional configuration is required to successfully run gRPC on macOS.
// For instructions on how to configure Kestrel and gRPC clients on macOS, visit https://go.microsoft.com/fwlink/?linkid=2099682

// Add services to the container.
builder.Services.AddGrpc();

//配置获取


var app = builder.Build();
IConfiguration _configuration = builder.Configuration;

// Configure the HTTP request pipeline.
app.MapGrpcService<GreeterService>();
app.MapGrpcService<OrderService>();
app.MapGrpcService<HealthCheckService>();
app.MapGet("/", () => "Communication with gRPC endpoints must be made through a gRPC client. To learn how to create a client, visit: https://go.microsoft.com/fwlink/?linkid=2086909");

app.UseConsul(_configuration);
app.Run();

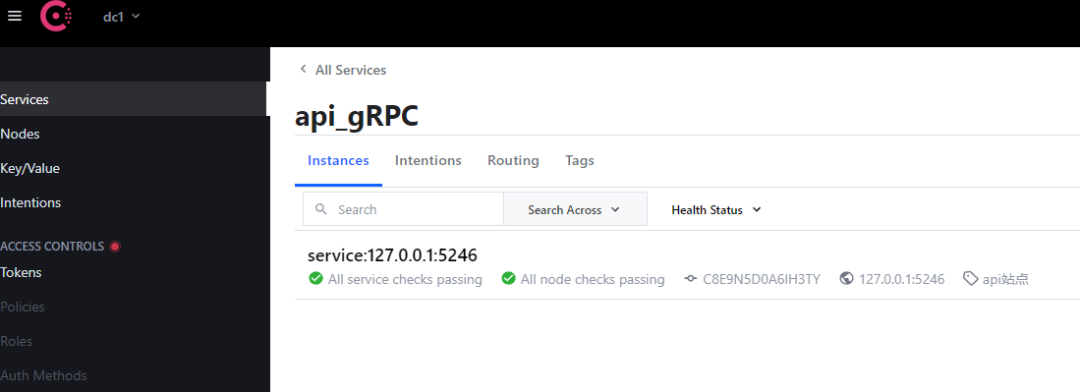

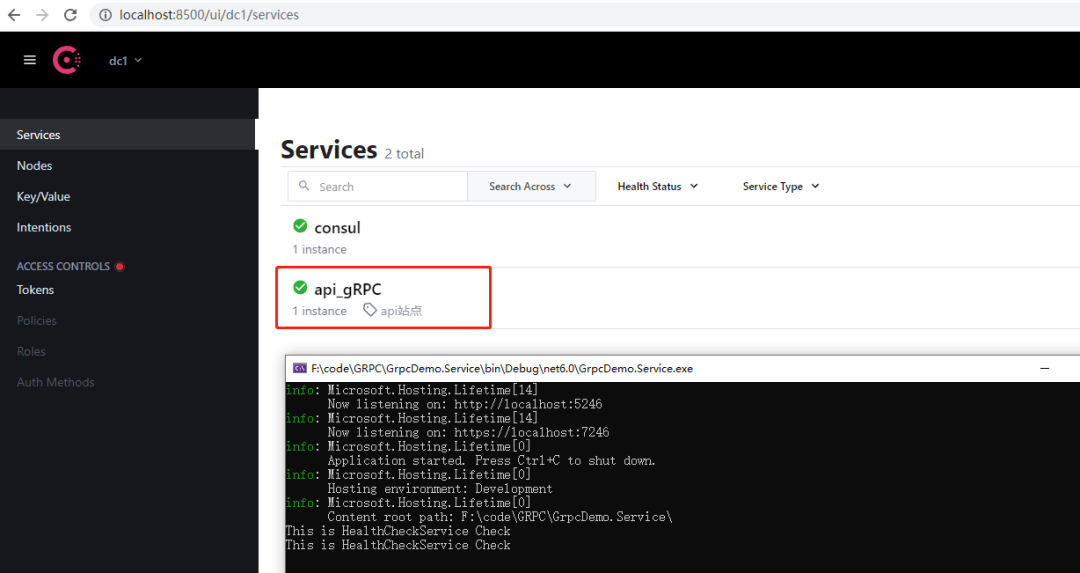

到这里服务注册就完成了,服务发现和上面简介的链接文章中一模一样,启动项目查看效果。

.NET 6中gRPC注册到Consul

.NET 6中gRPC注册到Consul
