WPF你还在用GIF？使用LottieSharp展现json文件动画

前言

今天介绍一篇使用json格式在wpf中播放动画效果；

正文

话说在上古（1987）时代，Gif因其体积小成像相对清晰和非常强的兼容性，而大受欢迎;.
Gif也因为当时的技术限制导致很多缺陷这包括对电脑的内存和性能占用非常大;
同时Gif还是一个有损文件格式对半透明和颜色都有一定程度的限制;
随着技术的进步衍生出了 apng和webp格式相对技术色彩范围更广效果也更清晰也占用更低的内存;
apng和webp这两种格式需要复杂的开发环境来支持，还是不太友好；
这时就需要另外一种格式了 序列帧；
序列帧它是一个无损且低内存的格式，不过只能在客户端使用；
因为帧数多想要在web环境中使用，就需要转换为雪碧图；
Lottie动画是由airbnb公司推出的；
Lottie的原理是把各种矢量素材以及效果打包成一个体积很小的json文件然后交给开发人员就好了；
经常在APP所见到的动态图标都是由Lottie来实现的；
下面我们如何开源项目LottieSharp进行展现json文件动画；

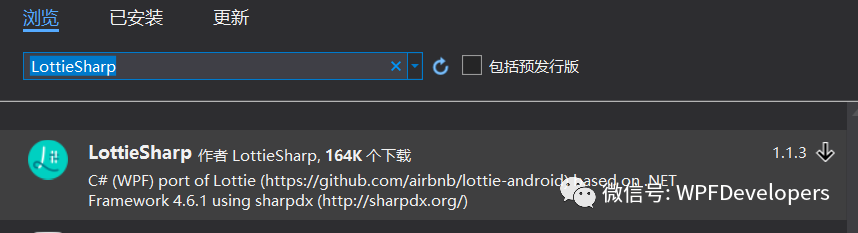

1）Nuget 搜索 LottieSharp 点击安装；

WPF你还在用GIF？使用LottieSharp展现json文件动画

2）使用方式很简单如下

 <ws:Window x:Class="LottieSharp.Sample.MainWindow"
        xmlns="http://schemas.microsoft.com/winfx/2006/xaml/presentation"
        xmlns:x="http://schemas.microsoft.com/winfx/2006/xaml"
        xmlns:d="http://schemas.microsoft.com/expression/blend/2008"
        xmlns:mc="http://schemas.openxmlformats.org/markup-compatibility/2006"
        xmlns:local="clr-namespace:LottieSharp.Sample"
        xmlns:lottieSharp="clr-namespace:LottieSharp;assembly=LottieSharp"
        xmlns:ws="https://github.com/WPFDevelopersOrg.WPFDevelopers.Minimal"
        mc:Ignorable="d"
        Title="{Binding Path=ImageDrawable.Fps, StringFormat={}LottieSharp：{0}, ElementName=LottieAnimationView}" Height="450" Width="800">
    <Grid>
        <Grid.ColumnDefinitions>
            <ColumnDefinition Width="Auto"/>
            <ColumnDefinition />
        </Grid.ColumnDefinitions>
        <Expander  ExpandDirection="Left" Grid.Column="0"
                   Style="{DynamicResource ExpanderStyle1}" IsExpanded="True">
            <Border
                     BorderBrush="{StaticResource PrimaryPressedSolidColorBrush}"
                     BorderThickness="0,0,1,0">
                <ListBox x:Name="myListBox"
                         SelectionChanged="myListBox_SelectionChanged"/>

            </Border>
        </Expander>
        <Grid Grid.Column="1">
            <Grid.RowDefinitions>
                <RowDefinition Height="*" />
                <RowDefinition Height="auto" />
                <RowDefinition Height="auto" />
                <RowDefinition Height="auto" />
                <RowDefinition Height="auto" />
            </Grid.RowDefinitions>
            <lottieSharp:LottieAnimationView x:Name="LottieAnimationView" DefaultCacheStrategy="None" FileName="Assets/moody-dog.json" AutoPlay="True" VerticalAlignment="Center" HorizontalAlignment="Center"/>
            <Slider Grid.Row="1" Maximum="10" Value="1" Minimum="0.1" SmallChange="0.1" LargeChange="0.1" ValueChanged="Slider_ValueChanged_1" />
            <Slider Grid.Row="2" Minimum="0" Maximum="1000" SmallChange="1" ValueChanged="Slider_ValueChanged" />

            <DockPanel Grid.Row="3" Margin="5">
                <Button DockPanel.Dock="Left" Content="Pause Animation" Click="PauseAnimation_Click" HorizontalAlignment="Left" />
                <Button DockPanel.Dock="Left" Margin="10,0,0,0" Content="Start Animation" Click="StartAnimation_Click" HorizontalAlignment="Left"/>
                <!--<Button DockPanel.Dock="Left" Content="Load Animation" Margin="10,0,0,0" Click="LoadAnimation_Click" HorizontalAlignment="Left"/>-->

                <StackPanel DockPanel.Dock="Right" Orientation="Horizontal"  HorizontalAlignment="Right" Margin="10,0" Width="158">
                    <TextBlock Text="Fps: " FontSize="16" VerticalAlignment="Center"></TextBlock>
                    <TextBox Text="{Binding FrameRate, ElementName=LottieAnimationView, Mode=TwoWay}" Width="60"/>
                </StackPanel>
            </DockPanel>

            <Grid Grid.Row="4" Margin="5">
                <Grid.ColumnDefinitions>
                    <ColumnDefinition Width="Auto" />
                    <ColumnDefinition Width="*" />
                    <ColumnDefinition Width="Auto" />
                    <ColumnDefinition Width="Auto" />
                </Grid.ColumnDefinitions>
                <TextBlock Grid.Column="0" Text="ImageAssetsFolder (optional):" VerticalAlignment="Center"/>
                <TextBox Grid.Column="1" Name="ImageAssetsFolderTextBox" Margin="10,0,0,0" TextChanged="ImageAssetsFolderTextBox_TextChanged"/>
                <Button Grid.Column="2" Margin="10,0,0,0" Content="..." Click="LoadImageAssetsFolder_Click" />
                <Button Grid.Column="3" Margin="10,0,0,0" Content="X" ToolTip="Delete path" Click="DeleteImageAssetsFolder_Click" />
            </Grid>
        </Grid>


    </Grid>
</ws:Window>

3）后台逻辑代码；

using Microsoft.Win32;
using System;
using System.Collections.Generic;
using System.IO;
using System.Windows;
using System.Windows.Controls;

namespace LottieSharp.Sample
{
    /// <summary>
    /// Interaction logic for MainWindow.xaml
    /// </summary>
    public partial class MainWindow
    {
        public MainWindow()
        {
            InitializeComponent();
            Loaded += MainWindow_Loaded;
            LottieAnimationView.UseHardwareAcceleration(true);
        }

        private void MainWindow_Loaded(object sender, RoutedEventArgs e)
        {
            var path = System.IO.Path.Combine(AppDomain.CurrentDomain.BaseDirectory, "Assets");
            var root = new DirectoryInfo(path);
            var array = new List<string>();
            foreach (var item in root.GetFiles())
            {
                array.Add(item.Name);
            }
            myListBox.ItemsSource = array;
        }

        protected override void OnClosed(EventArgs e)
        {
            base.OnClosed(e);
            LottieAnimationView.Dispose();
            DataContext = null;
        }

        private void Slider_ValueChanged(object sender, RoutedPropertyChangedEventArgs<double> e)
        {
            LottieAnimationView.PauseAnimation();
            LottieAnimationView.Progress = (float)(e.NewValue / 1000);
        }

        private void LoadAnimation_Click(object sender, RoutedEventArgs e)
        {
            OpenFileDialog openFileDialog = new OpenFileDialog();
            openFileDialog.DefaultExt = ".json";
            openFileDialog.Filter = "Json files|*.json|All files|*.*";
            if (openFileDialog.ShowDialog() == true)
            {
                LottieAnimationView.PauseAnimation();
                LottieAnimationView.FileName = openFileDialog.FileName;
                LottieAnimationView.PlayAnimation();
            }
        }

        private void StartAnimation_Click(object sender, RoutedEventArgs e)
        {
            LottieAnimationView.PlayAnimation();
        }

        private void PauseAnimation_Click(object sender, RoutedEventArgs e)
        {
            LottieAnimationView.PauseAnimation();
        }

        private void LoadImageAssetsFolder_Click(object sender, RoutedEventArgs e)
        {
            using (var dialog = new System.Windows.Forms.FolderBrowserDialog())
            {
                if (dialog.ShowDialog() == System.Windows.Forms.DialogResult.OK)
                    ImageAssetsFolderTextBox.Text = dialog.SelectedPath;
            }
        }

        private void DeleteImageAssetsFolder_Click(object sender, RoutedEventArgs e)
        {
            ImageAssetsFolderTextBox.Text = "";
        }

        private void ImageAssetsFolderTextBox_TextChanged(object sender, TextChangedEventArgs e)
        {
            LottieAnimationView.PauseAnimation();
            LottieAnimationView.ImageAssetsFolder = ImageAssetsFolderTextBox.Text;
        }

        private void Slider_ValueChanged_1(object sender, RoutedPropertyChangedEventArgs<double> e)
        {
            if (!double.IsNaN(e.NewValue))
                LottieAnimationView.Scale = (float)e.NewValue;
        }

        private void myListBox_SelectionChanged(object sender, SelectionChangedEventArgs e)
        {
            var path = System.IO.Path.Combine(AppDomain.CurrentDomain.BaseDirectory, "Assets", myListBox.SelectedItem.ToString());
            LottieAnimationView.PauseAnimation();
            LottieAnimationView.FileName = path;
            LottieAnimationView.PlayAnimation();
        }
    }
}

案例中只是少数的json文件，可以去官网下载更多json文件源码。
