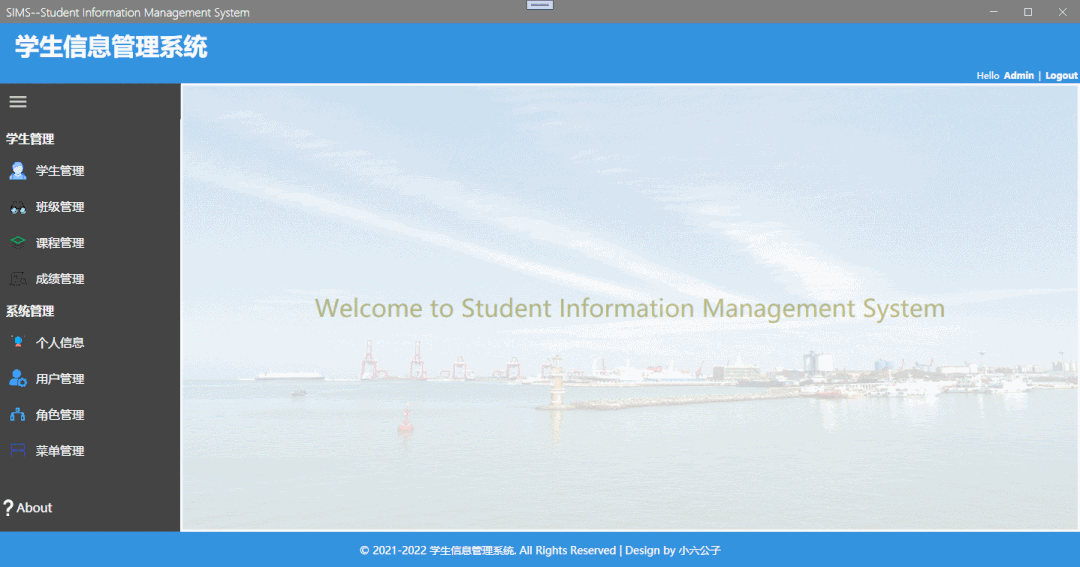

最近通过WPF开发项目,为了对WPF知识点进行总结,所以利用业余时间,开发一个学生信息管理系统【Student Information Management System】。前四篇文章进行了框架搭建和模块划分,后台WebApi接口编写,以及课程管理模块,班级管理模块,学生管理模块的开发,本文在前四篇基础之上,继续深入开发学生信息管理系统的成绩管理和系统管理模块,通过本篇文章,将继续巩固之前的知识点,本文仅供学习分享使用,如有不足之处,还请指正。.
注意:源码下载在文章底部哦。
涉及知识点
学生信息管理系统SIMS属于一个小型的完整系统开发,涉及的知识点比较,具体如下所示:
-
WPF开发中TextBlock,TextBox,DataGrid,Combox,TabControl等控件的基础使用以及数据绑定等操作。
-
MAH样式的使用,在本示例中MAH主要用于统一页面风格,提高用户体验。
-
HttpClient使用,主要用于访问服务端提供的接口。
业务逻辑
前面几篇文章,由浅入深,逐步介绍了课程管理模块,班级管理模块,学生管理模块,今天继续介绍成绩管理模块,业务逻辑关系如下:
-
学生属于某一班级之学生,所以学生中包含班级信息。
-
班级中存在班长,同时班长又属于学生的一个实体。
-
成绩是某一学生的成绩,且一名学生有各门课程的成绩。所以成绩和学生有关,且和课程有关。

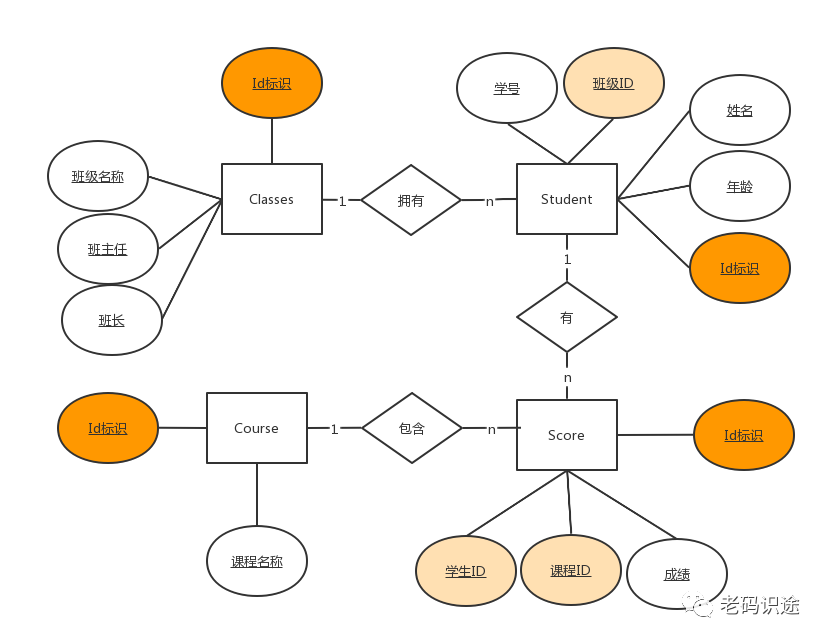

实体E-R图
学生表,成绩表,班级表,课程表,各个数据表之间的E-R图,如下所示:
由此可见,成绩表与课程和学生表,都有关联,所以放在最后。
成绩管理
成绩管理主要用于录入各个学生各个课程的成绩,包含成绩表的增删改查功能。
1. 成绩管理后台服务Service
IScoreAppService接口是对成绩管理的抽象,如下所示:
namespace SIMS.WebApi.Services.Score
{
public interface IScoreAppService
{
public PagedRequest<ScoreEntity> GetScores(string studentName,string courseName,int pageNum,int pageSize);
/// <summary>
/// 通过id查询成绩信息
/// </summary>
/// <param name="id"></param>
/// <returns></returns>
public ScoreEntity GetScore(int id);
/// <summary>
/// 新增成绩
/// </summary>
/// <param name="score"></param>
/// <returns></returns>
public int AddScore(ScoreEntity score);
/// <summary>
/// 修改成绩
/// </summary>
/// <param name="score"></param>
/// <returns></returns>
public int UpdateScore(ScoreEntity score);
/// <summary>
/// 删除成绩
/// </summary>
/// <param name="id"></param>
public int DeleteScore(int id);
}
}
服务实现类ScoreAppService,是对接口的实现,具体如下所示:
namespace SIMS.WebApi.Services.Score
{
public class ScoreAppService : IScoreAppService
{
private DataContext dataContext;
public ScoreAppService(DataContext dataContext)
{
this.dataContext = dataContext;
}
public int AddScore(ScoreEntity score)
{
var entity = this.dataContext.Scores.Add(score);
this.dataContext.SaveChanges();
return 0;
}
public int DeleteScore(int id)
{
var entity = dataContext.Scores.FirstOrDefault(x => x.Id == id);
if (entity != null)
{
dataContext.Scores.Remove(entity);
dataContext.SaveChanges();
}
return 0;
}
public ScoreEntity GetScore(int id)
{
var entity = dataContext.Scores.FirstOrDefault(r => r.Id == id);
return entity;
}
/// <summary>
/// 按条件查询成绩列表
/// </summary>
/// <param name="studentName"></param>
/// <param name="courseName"></param>
/// <param name="pageNum"></param>
/// <param name="pageSize"></param>
/// <returns></returns>
public PagedRequest<ScoreEntity> GetScores(string studentName, string courseName, int pageNum, int pageSize)
{
IQueryable<ScoreEntity> scores = null;
if (!string.IsNullOrEmpty(studentName) && !string.IsNullOrEmpty(courseName))
{
var students = this.dataContext.Students.Where(r => r.Name.Contains(studentName));
var courses = this.dataContext.Courses.Where(r => r.Name.Contains(courseName));
scores = this.dataContext.Scores.Where(r => students.Select(t => t.Id).Contains(r.StudentId)).Where(r => courses.Select(t => t.Id).Contains(r.CourseId));
}
else if (!string.IsNullOrEmpty(studentName))
{
var students = this.dataContext.Students.Where(r => r.Name.Contains(studentName));
scores = this.dataContext.Scores.Where(r => students.Select(t => t.Id).Contains(r.StudentId));
}
else if (!string.IsNullOrEmpty(courseName))
{
var courses = this.dataContext.Courses.Where(r => r.Name.Contains(courseName));
scores = this.dataContext.Scores.Where(r => courses.Select(t => t.Id).Contains(r.CourseId));
}
else {
scores = dataContext.Scores.Where(r => true).OrderBy(r => r.Id);
}
int count = scores.Count();
List<ScoreEntity> items;
if (pageSize > 0)
{
items = scores.Skip((pageNum - 1) * pageSize).Take(pageSize).ToList();
}
else
{
items = scores.ToList();
}
return new PagedRequest<ScoreEntity>()
{
count = count,
items = items
};
}
public int UpdateScore(ScoreEntity score)
{
dataContext.Scores.Update(score);
dataContext.SaveChanges();
return 0;
}
}
}
2. 成绩管理WebApi接口控制器
控制器是对数据服务的公开,每一个控制器的方法表示一个Action,即表示一个客户端可以访问的入口。具体如下所示:
namespace SIMS.WebApi.Controllers
{
/// <summary>
/// 成绩控制器
/// </summary>
[Route("api/[controller]/[action]")]
[ApiController]
public class ScoreController : ControllerBase
{
private readonly ILogger<ScoreController> logger;
private readonly IScoreAppService scoreAppService;
public ScoreController(ILogger<ScoreController> logger, IScoreAppService scoreAppService)
{
this.logger = logger;
this.scoreAppService = scoreAppService;
}
/// <summary>
/// 获取成绩信息
/// </summary>
/// <param name="id"></param>
/// <returns></returns>
[HttpGet]
public PagedRequest<ScoreEntity> GetScores(string? studentName, string? courseName, int pageNum, int pageSize)
{
return scoreAppService.GetScores(studentName, courseName, pageNum, pageSize);
}
/// <summary>
/// 获取成绩信息
/// </summary>
/// <param name="id"></param>
/// <returns></returns>
[HttpGet]
public ScoreEntity GetScore(int id)
{
return scoreAppService.GetScore(id);
}
/// <summary>
/// 新增成绩
/// </summary>
/// <param name="score"></param>
/// <returns></returns>
[HttpPost]
public int AddScore(ScoreEntity score)
{
return scoreAppService.AddScore(score);
}
/// <summary>
/// 修改成绩
/// </summary>
/// <param name="score"></param>
/// <returns></returns>
[HttpPut]
public int UpdateScore(ScoreEntity score)
{
return scoreAppService.UpdateScore(score);
}
/// <summary>
/// 删除成绩
/// </summary>
/// <param name="id"></param>
[HttpDelete]
public int DeleteScore(int id)
{
return scoreAppService.DeleteScore(id);
}
}
}
当服务运行起来后,Swagger还每一个控制器都进行归类,可以清晰的看到每一个接口对应的网址,成绩管理模块对应的接口如下所示:
3. 成绩管理客户端接口访问类HttpUtil
在学生信息系统开发的过程中,发现所有的接口访问都是通用的,所以对接口访问功能提取成一个HttpUtil基类【包括GET,POST,PUT,DELETE等功能】,其他具体业务再继承基类,并细化具体业务即可。ScoreHttpUtil代码如下所示:
namespace SIMS.Utils.Http
{
public class ScoreHttpUtil:HttpUtil
{
/// <summary>
/// 通过id查询成绩信息
/// </summary>
/// <param name="id"></param>
/// <returns></returns>
public static ScoreEntity GetScore(int id)
{
Dictionary<string, object> data = new Dictionary<string, object>();
data["id"] = id;
var str = Get(UrlConfig.SCORE_GETSCORE, data);
var socre = StrToObject<ScoreEntity>(str);
return socre;
}
/// <summary>
///
/// </summary>
/// <param name="studentName"></param>
/// <param name="courseName"></param>
/// <param name="pageNum"></param>
/// <param name="pageSize"></param>
/// <returns></returns>
public static PagedRequest<ScoreEntity> GetScores(string? studentName, string? courseName, int pageNum, int pageSize)
{
Dictionary<string, object> data = new Dictionary<string, object>();
data["courseName"] = courseName;
data["studentName"] = studentName;
data["pageNum"] = pageNum;
data["pageSize"] = pageSize;
var str = Get(UrlConfig.SCORE_GETSCORES, data);
var socres = StrToObject<PagedRequest<ScoreEntity>>(str);
return socres;
}
public static bool AddScore(ScoreEntity socre)
{
var ret = Post<ScoreEntity>(UrlConfig.SCORE_ADDSCORE, socre);
return int.Parse(ret) == 0;
}
public static bool UpdateScore(ScoreEntity socre)
{
var ret = Put<ScoreEntity>(UrlConfig.SCORE_UPDATESCORE, socre);
return int.Parse(ret) == 0;
}
public static bool DeleteScore(int Id)
{
Dictionary<string, string> data = new Dictionary<string, string>();
data["Id"] = Id.ToString();
var ret = Delete(UrlConfig.SCORE_DELETESCORE, data);
return int.Parse(ret) == 0;
}
}
}
4. 成绩管理客户端操作
经过前面四个部分的开发,客户端就可以与数据接口进行交互,展示数据到客户端。客户端所有的开发,均采用MVVM模式进行。
在成绩管理模块中,根据功能区分,主要包含两个View视图及对应的ViewModel。如下所示:
-
Score视图,主要用于成绩的查询,以及新增,修改,删除的链接入口。
-
AddEditScore视图,主要用于成绩信息的新增和修改,共用一个视图页面。
-
删除成绩不需要页面,所以没有对应视图。
4.1. Score视图
Score视图,主要是成绩的查询和新增,修改,删除的链接入口。涉及知识点如下:
-
Score视图页面布局采用Grid方式和StackPanel混合布局,即整体布局采用Grid,细微布局采用StackPanel。
-
成绩采用分页列表的方式展示,需要用到DataGrid,及分页控件【WPF默认不提供分页控件,可自行编写分页控件】。
-
查询条件采用按钮Button和文本框TextBox等组成,关于基础控件的使用,不再详细论述,可参考其他文章。
-
在本系统的所有WPF视图中,均需要引入Prism和 MAH组件。
-
Score视图中,所有的数据均采用Binding的方式与ViewModel进行交互。
Score视图具体代码,如下所示:
<UserControl x:Class="SIMS.ScoreModule.Views.Score"
xmlns="http://schemas.microsoft.com/winfx/2006/xaml/presentation"
xmlns:x="http://schemas.microsoft.com/winfx/2006/xaml"
xmlns:mc="http://schemas.openxmlformats.org/markup-compatibility/2006"
xmlns:d="http://schemas.microsoft.com/expression/blend/2008"
xmlns:i="http://schemas.microsoft.com/xaml/behaviors"
xmlns:prism="http://prismlibrary.com/"
xmlns:local="clr-namespace:SIMS.ScoreModule.Views"
mc:Ignorable="d"
xmlns:mahApps="http://metro.mahapps.com/winfx/xaml/controls"
xmlns:ctrls ="clr-namespace:SIMS.Utils.Controls;assembly=SIMS.Utils"
prism:ViewModelLocator.AutoWireViewModel="True"
d:DesignHeight="450" d:DesignWidth="800">
<UserControl.Resources>
<ResourceDictionary>
<ResourceDictionary.MergedDictionaries>
<ResourceDictionary Source="pack://application:,,,/MahApps.Metro;component/Styles/Controls.xaml" />
<ResourceDictionary Source="pack://application:,,,/MahApps.Metro;component/Styles/Themes/Light.Blue.xaml" />
<ResourceDictionary>
<Style x:Key="LinkButton" TargetType="Button">
<Setter Property="Background" Value="White"></Setter>
<Setter Property="Cursor" Value="Hand"></Setter>
<Setter Property="Margin" Value="3"></Setter>
<Setter Property="MinWidth" Value="80"></Setter>
<Setter Property="MinHeight" Value="25"></Setter>
<Setter Property="BorderThickness" Value="0 0 0 0"></Setter>
</Style>
</ResourceDictionary>
</ResourceDictionary.MergedDictionaries>
</ResourceDictionary>
</UserControl.Resources>
<i:Interaction.Triggers>
<i:EventTrigger EventName="Loaded">
<i:InvokeCommandAction Command="{Binding LoadedCommand}"></i:InvokeCommandAction>
</i:EventTrigger>
</i:Interaction.Triggers>
<Grid>
<Grid.RowDefinitions>
<RowDefinition Height="Auto"></RowDefinition>
<RowDefinition Height="Auto"></RowDefinition>
<RowDefinition Height="*"></RowDefinition>
<RowDefinition Height="Auto"></RowDefinition>
</Grid.RowDefinitions>
<TextBlock Text="成绩信息" FontSize="20" Background="AliceBlue" Margin="2"></TextBlock>
<StackPanel Grid.Row="1" Orientation="Horizontal" VerticalAlignment="Center">
<TextBlock Text="学生名称" VerticalAlignment="Center" Margin="2"></TextBlock>
<TextBox Margin="4" MinWidth="120" Height="30"
Text="{Binding StudentName}"
HorizontalContentAlignment="Stretch"
mahApps:TextBoxHelper.ClearTextButton="True"
mahApps:TextBoxHelper.Watermark="学生名称"
mahApps:TextBoxHelper.WatermarkAlignment="Left"
SpellCheck.IsEnabled="True" />
<TextBlock Text="课程名称" VerticalAlignment="Center" Margin="2"></TextBlock>
<TextBox Margin="4" MinWidth="120" Height="30"
Text="{Binding CourseName}"
HorizontalContentAlignment="Stretch"
mahApps:TextBoxHelper.ClearTextButton="True"
mahApps:TextBoxHelper.Watermark="课程名称"
mahApps:TextBoxHelper.WatermarkAlignment="Left"
SpellCheck.IsEnabled="True" />
<Button Content="查询" Style="{DynamicResource MahApps.Styles.Button.Square.Accent}" Width="120" Height="30" Margin="3" Command="{Binding QueryCommand}"></Button>
<Button Content="新增" Style="{DynamicResource MahApps.Styles.Button.Square.Accent}" Width="120" Height="30" Margin="3" Command="{Binding AddCommand}"></Button>
</StackPanel>
<DataGrid x:Name="dgScores"
Grid.Row="2"
Grid.Column="0"
Margin="2"
AutoGenerateColumns="False"
CanUserAddRows="False"
CanUserDeleteRows="False"
ItemsSource="{Binding Scores}"
RowHeaderWidth="0">
<DataGrid.Columns>
<DataGridTextColumn Binding="{Binding Student.Name}" Header="学生" Width="*" />
<DataGridTextColumn Binding="{Binding Course.Name}" Header="课程" Width="*"/>
<DataGridTextColumn Binding="{Binding Score}" Header="成绩" Width="*"/>
<DataGridTextColumn Binding="{Binding CreateTime, StringFormat=yyyy-MM-dd HH:mm:ss}" Header="创建时间" Width="*"/>
<DataGridTextColumn Binding="{Binding LastEditTime,StringFormat=yyyy-MM-dd HH:mm:ss}" Header="最后修改时间" Width="*"/>
<DataGridTemplateColumn Header="操作" Width="*">
<DataGridTemplateColumn.CellTemplate>
<DataTemplate>
<StackPanel Orientation="Horizontal">
<Button Content="Edit" Style="{StaticResource LinkButton}" Command="{Binding RelativeSource={RelativeSource AncestorType=DataGrid, Mode=FindAncestor}, Path=DataContext.EditCommand}" CommandParameter="{Binding Id}">
<Button.Template>
<ControlTemplate TargetType="Button">
<TextBlock TextDecorations="Underline" HorizontalAlignment="Center">
<ContentPresenter />
</TextBlock>
</ControlTemplate>
</Button.Template>
</Button>
<Button Content="Delete" Style="{StaticResource LinkButton}" Command="{Binding RelativeSource={RelativeSource AncestorType=DataGrid, Mode=FindAncestor}, Path=DataContext.DeleteCommand}" CommandParameter="{Binding Id}">
<Button.Template>
<ControlTemplate TargetType="Button">
<TextBlock TextDecorations="Underline" HorizontalAlignment="Center">
<ContentPresenter />
</TextBlock>
</ControlTemplate>
</Button.Template>
</Button>
</StackPanel>
</DataTemplate>
</DataGridTemplateColumn.CellTemplate>
</DataGridTemplateColumn>
</DataGrid.Columns>
</DataGrid>
<ctrls:PageControl Grid.Row="3" DataContext="{Binding}" ></ctrls:PageControl>
</Grid>
</UserControl>
4.2. ScoreViewModel
ScoreViewModel是页面视图的业务逻辑处理,如处理客户端的点击的命令等内容。具体代码如下所示:
namespace SIMS.ScoreModule.ViewModels
{
public class ScoreViewModel : BindableBase
{
#region 属性或构造方法
/// <summary>
/// 课程名称
/// </summary>
private string courseName;
public string CourseName
{
get { return courseName; }
set { SetProperty(ref courseName, value); }
}
/// <summary>
/// 学生姓名
/// </summary>
private string studentName;
public string StudentName
{
get { return studentName; }
set { SetProperty(ref studentName, value); }
}
private ObservableCollection<ScoreInfo> scores;
public ObservableCollection<ScoreInfo> Scores
{
get { return scores; }
set { SetProperty(ref scores, value); }
}
private IDialogService dialogService;
public ScoreViewModel(IDialogService dialogService)
{
this.dialogService = dialogService;
this.pageNum = 1;
this.pageSize = 20;
}
private void InitInfo()
{
Scores = new ObservableCollection<ScoreInfo>();
var pagedRequst = ScoreHttpUtil.GetScores(this.StudentName, this.CourseName, this.pageNum, this.pageSize);
var entities = pagedRequst.items;
Scores.AddRange(entities.Select(r=>new ScoreInfo(r)));
//
this.TotalCount = pagedRequst.count;
this.TotalPage = ((int)Math.Ceiling(this.TotalCount * 1.0 / this.pageSize));
}
#endregion
#region 事件
private DelegateCommand loadedCommand;
public DelegateCommand LoadedCommand
{
get
{
if (loadedCommand == null)
{
loadedCommand = new DelegateCommand(Loaded);
}
return loadedCommand;
}
}
private void Loaded()
{
InitInfo();
}
private DelegateCommand queryCommand;
public DelegateCommand QueryCommand
{
get
{
if (queryCommand == null)
{
queryCommand = new DelegateCommand(Query);
}
return queryCommand;
}
}
private void Query()
{
this.pageNum = 1;
this.InitInfo();
}
/// <summary>
/// 新增命令
/// </summary>
private DelegateCommand addCommand;
public DelegateCommand AddCommand
{
get
{
if (addCommand == null)
{
addCommand = new DelegateCommand(Add);
}
return addCommand;
}
}
private void Add()
{
this.dialogService.ShowDialog("addEditScore", null, AddEditCallBack, "MetroDialogWindow");
}
private void AddEditCallBack(IDialogResult dialogResult)
{
if (dialogResult != null && dialogResult.Result == ButtonResult.OK)
{
//刷新列表
this.pageNum = 1;
this.InitInfo();
}
}
/// <summary>
/// 编辑命令
/// </summary>
private DelegateCommand<object> editCommand;
public DelegateCommand<object> EditCommand
{
get
{
if (editCommand == null)
{
editCommand = new DelegateCommand<object>(Edit);
}
return editCommand;
}
}
private void Edit(object obj)
{
if (obj == null)
{
return;
}
var Id = int.Parse(obj.ToString());
var score = this.Scores.FirstOrDefault(r => r.Id == Id);
if (score == null)
{
MessageBox.Show("无效的成绩ID");
return;
}
IDialogParameters dialogParameters = new DialogParameters();
dialogParameters.Add("score", score);
this.dialogService.ShowDialog("addEditScore", dialogParameters, AddEditCallBack, "MetroDialogWindow");
}
/// <summary>
/// 编辑命令
/// </summary>
private DelegateCommand<object> deleteCommand;
public DelegateCommand<object> DeleteCommand
{
get
{
if (deleteCommand == null)
{
deleteCommand = new DelegateCommand<object>(Delete);
}
return deleteCommand;
}
}
private void Delete(object obj)
{
if (obj == null)
{
return;
}
var Id = int.Parse(obj.ToString());
var score = this.Scores.FirstOrDefault(r => r.Id == Id);
if (score == null)
{
MessageBox.Show("无效的成绩ID");
return;
}
if (MessageBoxResult.Yes != MessageBox.Show("Are you sure to delete?", "Confirm", MessageBoxButton.YesNo))
{
return;
}
bool flag = ScoreHttpUtil.DeleteScore(Id);
if (flag)
{
this.pageNum = 1;
this.InitInfo();
}
}
#endregion
}
}
注意:关于分页功能,与其他模块代码通用,所以此处略去。
4. 3. 新增编辑成绩视图AddEditScore
新增编辑成绩视图,主要用于对成绩的修改和新增,可通过查询页面的新增按钮和具体成绩的编辑按钮弹出对应窗口。如下所示:
<UserControl x:Class="SIMS.ScoreModule.Views.AddEditScore"
xmlns="http://schemas.microsoft.com/winfx/2006/xaml/presentation"
xmlns:x="http://schemas.microsoft.com/winfx/2006/xaml"
xmlns:mc="http://schemas.openxmlformats.org/markup-compatibility/2006"
xmlns:d="http://schemas.microsoft.com/expression/blend/2008"
xmlns:local="clr-namespace:SIMS.ScoreModule.Views"
xmlns:i="http://schemas.microsoft.com/xaml/behaviors"
xmlns:mahApps ="http://metro.mahapps.com/winfx/xaml/controls"
xmlns:prism="http://prismlibrary.com/"
mc:Ignorable="d"
d:DesignHeight="450" d:DesignWidth="800">
<prism:Dialog.WindowStyle>
<Style TargetType="Window">
<Setter Property="Width" Value="600"></Setter>
<Setter Property="Height" Value="400"></Setter>
</Style>
</prism:Dialog.WindowStyle>
<UserControl.Resources>
<ResourceDictionary>
<ResourceDictionary.MergedDictionaries>
<ResourceDictionary Source="pack://application:,,,/MahApps.Metro;component/Styles/Controls.xaml" />
<ResourceDictionary Source="pack://application:,,,/MahApps.Metro;component/Styles/Themes/Light.Blue.xaml" />
</ResourceDictionary.MergedDictionaries>
</ResourceDictionary>
</UserControl.Resources>
<i:Interaction.Triggers>
<i:EventTrigger EventName="Loaded">
<i:InvokeCommandAction Command="{Binding LoadedCommand}"></i:InvokeCommandAction>
</i:EventTrigger>
</i:Interaction.Triggers>
<Grid>
<Grid.ColumnDefinitions>
<ColumnDefinition Width="0.2*"></ColumnDefinition>
<ColumnDefinition Width="Auto"></ColumnDefinition>
<ColumnDefinition Width="*"></ColumnDefinition>
<ColumnDefinition Width="0.2*"></ColumnDefinition>
</Grid.ColumnDefinitions>
<Grid.RowDefinitions>
<RowDefinition></RowDefinition>
<RowDefinition></RowDefinition>
<RowDefinition></RowDefinition>
<RowDefinition></RowDefinition>
</Grid.RowDefinitions>
<TextBlock Text="学生" Grid.Row="0" Grid.Column="1" VerticalAlignment="Center" Margin="3"></TextBlock>
<ComboBox Grid.Row="0" Grid.Column="2" MinWidth="120" Height="35" ItemsSource="{Binding Students}" mahApps:TextBoxHelper.ClearTextButton="True" SelectedItem="{Binding Student}">
<ComboBox.ItemTemplate>
<DataTemplate>
<TextBlock Text="{Binding Name}"></TextBlock>
</DataTemplate>
</ComboBox.ItemTemplate>
</ComboBox>
<TextBlock Text="课程" Grid.Row="1" Grid.Column="1" VerticalAlignment="Center" Margin="3"></TextBlock>
<ComboBox Grid.Row="1" Grid.Column="2" MinWidth="120" Height="35" ItemsSource="{Binding Courses}" mahApps:TextBoxHelper.ClearTextButton="True" SelectedItem="{Binding Course}">
<ComboBox.ItemTemplate>
<DataTemplate>
<TextBlock Text="{Binding Name}"></TextBlock>
</DataTemplate>
</ComboBox.ItemTemplate>
</ComboBox>
<TextBlock Text="成绩" Grid.Row="2" Grid.Column="1" VerticalAlignment="Center" Margin="3"></TextBlock>
<TextBox Grid.Row="2" Grid.Column="2" MinWidth="120" Height="35" VerticalAlignment="Center" Margin="3" Text="{Binding Score.Score}"></TextBox>
<StackPanel Grid.Row="3" Grid.Column="1" Grid.ColumnSpan="2" Orientation="Horizontal" HorizontalAlignment="Center" Margin="3">
<Button Content="取消" Margin="5" MinWidth="120" Height="35" Style="{DynamicResource MahApps.Styles.Button.Square.Accent}" Command="{Binding CancelCommand}"></Button>
<Button Content="保存" Margin="5" MinWidth="120" Height="35" Style="{DynamicResource MahApps.Styles.Button.Square.Accent}" Command="{Binding SaveCommand}"></Button>
</StackPanel>
</Grid>
</UserControl>
4.4. 新增编辑成绩ViewModel
AddEditScoreViewModel是对页面具体功能的业务封装,主要是对应成绩信息的保存,也包括数据绑定和命令绑定等内容,与其他模块不同之处,在于此模块关联学生和课程信息,需要绑定下拉框数据源。具体如下所示:
namespace SIMS.ScoreModule.ViewModels
{
public class AddEditScoreViewModel : BindableBase, IDialogAware
{
#region 属性和构造函数
/// <summary>
/// 当前实体
/// </summary>
private ScoreEntity score;
public ScoreEntity Score
{
get { return score; }
set { SetProperty(ref score , value); }
}
/// <summary>
/// 下拉框选择的学生
/// </summary>
private StudentEntity student;
public StudentEntity Student
{
get { return student; }
set { SetProperty(ref student , value); }
}
/// <summary>
/// 学生列表
/// </summary>
private List<StudentEntity> students;
public List<StudentEntity> Students
{
get { return students; }
set { SetProperty(ref students, value); }
}
private CourseEntity course;
public CourseEntity Course
{
get { return course; }
set {SetProperty(ref course , value); }
}
/// <summary>
/// 课程列表
/// </summary>
private List<CourseEntity> courses;
public List<CourseEntity> Courses
{
get { return courses; }
set { SetProperty(ref courses, value); }
}
public AddEditScoreViewModel() {
}
#endregion
#region Command
private DelegateCommand loadedCommand;
public DelegateCommand LoadedCommand
{
get
{
if (loadedCommand == null)
{
loadedCommand = new DelegateCommand(Loaded);
}
return loadedCommand;
}
}
private void Loaded()
{
LoadStudents();
LoadCourses();
//如果有班长,则为班长赋值
if (Score.StudentId > 0)
{
this.Student = this.Students?.FirstOrDefault(r => r.Id == Score.StudentId);
}
if (Score.CourseId > 0) {
this.Course = this.Courses?.FirstOrDefault(r=>r.Id == Score.CourseId);
}
}
private DelegateCommand cancelCommand;
public DelegateCommand CancelCommand
{
get
{
if (cancelCommand == null)
{
cancelCommand = new DelegateCommand(Cancel);
}
return cancelCommand;
}
}
private void Cancel()
{
RequestClose?.Invoke((new DialogResult(ButtonResult.Cancel)));
}
private DelegateCommand saveCommand;
public DelegateCommand SaveCommand
{
get
{
if (saveCommand == null)
{
saveCommand = new DelegateCommand(Save);
}
return saveCommand;
}
}
private void Save()
{
if (Score != null)
{
Score.CreateTime = DateTime.Now;
Score.LastEditTime = DateTime.Now;
if (Student != null)
{
Score.StudentId = Student.Id;
}
if (Course != null) {
Score.CourseId = Course.Id;
}
bool flag = false;
if (Score.Id > 0)
{
flag = ScoreHttpUtil.UpdateScore(Score);
}
else
{
flag = ScoreHttpUtil.AddScore(Score);
}
if (flag)
{
RequestClose?.Invoke((new DialogResult(ButtonResult.OK)));
}
}
}
#endregion
#region 函数
/// <summary>
/// 加载学生列表
/// </summary>
private void LoadStudents() {
this.Students = new List<StudentEntity>();
var pagedRequst = StudentHttpUtil.GetStudents(null, null, 1, -1);
var entities = pagedRequst.items;
Students.AddRange(entities);
}
/// <summary>
/// 加载课程列表
/// </summary>
private void LoadCourses() {
this.Courses = new List<CourseEntity>();
var pagedRequst = CourseHttpUtil.GetCourses(null, null, 1, -1);
var entities = pagedRequst.items;
Courses.AddRange(entities);
}
#endregion
}
}
注意:弹出窗口实现方法与其他模块通用,所以此处略去。
5. 成绩管理示例效果图
经过上述步骤后,成绩管理模块就开发完成,运行VS后,效果如下所示:
系统管理模块
1. 系统管理模块核心代码
系统管理模块,主要包含四个部分,用户管理,角色管理,菜单管理,个人信息。因篇幅有限,暂时仅列出主要内容:
从数据库读取用户所属的权限,代码如下所示:
public List<UserRight> GetUserRights(int? userId)
{
if (userId != null)
{
var query = from u in dataContext.UserRoles
join r in dataContext.Roles on u.RoleId equals r.Id
join x in dataContext.RoleMenus on r.Id equals x.RoleId
join m in dataContext.Menus on x.MenuId equals m.Id
where u.UserId == userId
select new UserRight { Id = m.Id, RoleName = r.Name, MenuName = m.Name, Url = m.Url,Icon=m.Icon, ParentId = m.ParentId, SortId = m.SortId };
return query.ToList();
}
return null;
}
在客户端获取后,转换成导航菜单对象即可,如下所示:
public NavigationViewModel(IEventAggregator eventAggregator)
{
this.eventAggregator = eventAggregator;
navItems = new List<HamburgerMenuItemBase>();
var userRights = RoleHttpUtil.GetUserRights(UserInfo.Instance.Id);
var parents = userRights.Where(x => x.ParentId == null).OrderBy(r=>r.SortId);
foreach (var parent in parents) {
navItems.Add(new HamburgerMenuHeaderItem() { Label = parent.MenuName });
var subItems = userRights.Where(r=>r.ParentId==parent.Id).OrderBy(r=>r.SortId);
foreach (var subItem in subItems) {
navItems.Add(new HamburgerMenuGlyphItem() { Label = subItem.MenuName, Tag = subItem.Url, Glyph = subItem.Icon });
}
}
UserInfo.Instance.Roles = String.Join(',', userRights.Select(r=>r.RoleName).Distinct().ToList());
}
2. 系统管理模块示例截图
关于系统管理模块示例截图如下所示:

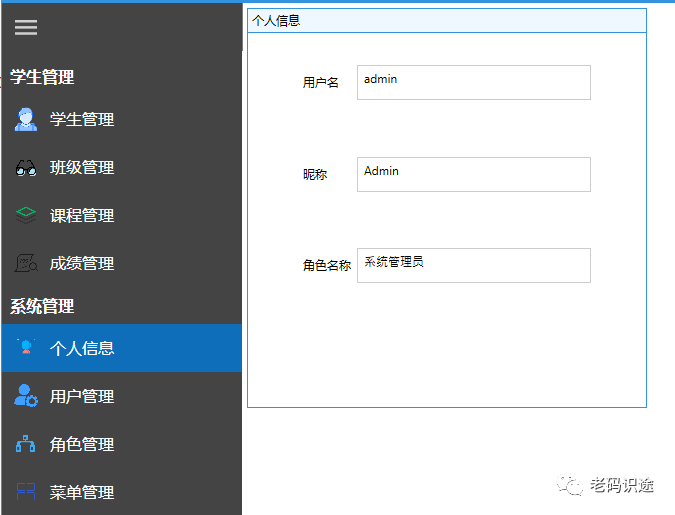

个人信息,显示个人基础信息,如下所示:
用户管理,比其他列表多了一个授权按钮,主要用于为用户分配角色如下所示:
角色管理模块,比其他列表多了一个分配按钮,主要用于为分配角色对应的菜单如下所示:
菜单管理,菜单管理模块,主要用于管理菜单信息,与其他模块不同的是,需要配置图标,如下所示:
总结
通过本篇文章的成绩管理模块,系统管理模块,以及前两篇文章中的课程管理模块,班级管理模块,学生管理模块,不难发现,每一个模块的开发都是由列表DataGrid,文本框TextBox,下拉框Combox,单选按钮RadioButton,按钮Button等组成的,虽功能略有差异,但总归万变不离其宗。开发方法也大同小异,复杂的功能都是普通的功能累加起来的。这也是本系列文章由浅入深的渐进安排。希望能够抛砖引玉,不局限于某一功能,而是能够举一反三,自我理解,以达到自我开发的能力。
至此,整个学生信息管理系统系列已完毕。
关于源码
关于源码下载,可点击CSDN上的链接 或者关注个人公众号【老码识途】进行下载,如下所示:
学习编程,从关注【老码识途】开始!!!
