C# wpf 自定义标题栏及无边框窗口

前言

我们日常开发的时候,经常会遇到需要自定义标题栏的UI设计,采用特定颜色的标题栏或者特定样式的按钮,这个时候就需要自定义标题栏了,wpf中自定义标题栏还是相对容易的。.

一、步骤

1.设置窗口属性

我们要把窗口本身的标题栏去除,因为标题栏不属于我们能控制的部分,我们能控制的只有窗口的客户区域。

ResizeMode="NoResize"WindowStyle="None"

如果需要异型窗口,比如圆角边框或者工具条,则需要加上下面2个属性设置。

AllowsTransparency="True"Background="Transparent"

2.客户区定义标题栏

我们可以在客户区的顶部添加一个容器作为标题栏。

 <StackPanel>      <!--标题栏-->     <Grid Background="Gray" Height="50" >     </Grid>     <!--客户区--></StackPanel>

二、示例

界面代码

<Window x:Class="WpfApp1.MainWindow"        xmlns="http://schemas.microsoft.com/winfx/2006/xaml/presentation"        xmlns:x="http://schemas.microsoft.com/winfx/2006/xaml"        xmlns:d="http://schemas.microsoft.com/expression/blend/2008"        xmlns:mc="http://schemas.openxmlformats.org/markup-compatibility/2006"        xmlns:sys="clr-namespace:System;assembly=mscorlib"        xmlns:local="clr-namespace:WpfApp1"             mc:Ignorable="d"        Title="MainWindow" Height="370" Width="650"        AllowsTransparency="True"        Background="Transparent"        ResizeMode="NoResize"        WindowStyle="None"        >    <StackPanel Margin="10" Background="White">        <StackPanel.Effect>            <DropShadowEffect ShadowDepth="0" BlurRadius="10" Opacity="0.8"/>        </StackPanel.Effect>        <!--标题栏-->        <Grid Background="Gray" Height="50" >            <StackPanel Margin="0,0,10,0" HorizontalAlignment="Right" Orientation="Horizontal">                <Button Width="40" Height=" 40" VerticalAlignment="Center" Cursor="Hand">                    <Button.Template>                        <ControlTemplate>                            <Grid Background="Transparent">                                <Rectangle Width="30" Height="3" Fill="White" ></Rectangle>                            </Grid>                        </ControlTemplate>                    </Button.Template>                </Button>                <Button Width="40" Height=" 40" VerticalAlignment="Center" Cursor="Hand">                    <Button.Template>                        <ControlTemplate>                            <Grid Background="Transparent">                                <Rectangle Width="30" Height="30" Stroke="White"  StrokeThickness="3"></Rectangle>                            </Grid>                        </ControlTemplate>                    </Button.Template>                </Button>                <Button Width="40" Height=" 40" VerticalAlignment="Center" Cursor="Hand">                    <Button.Template>                        <ControlTemplate>                            <Grid Background="Transparent">                                <Line Width="30" Height="30" X1="0" Y1="0" X2="30" Y2="30" StrokeThickness="3" Stroke="White" ></Line>                                <Line Width="30" Height="30" X1="30" Y1="0" X2="0" Y2="30" StrokeThickness="3" Stroke="White" ></Line>                            </Grid>                        </ControlTemplate>                    </Button.Template>                </Button>            </StackPanel>        </Grid>  <!--客户区-->      </StackPanel></Window>

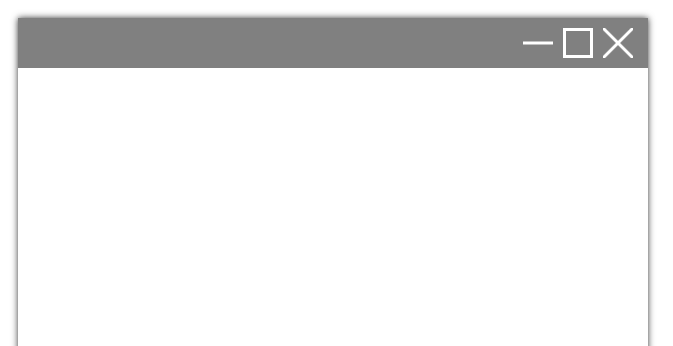

效果预览
