上篇介绍了⼀些做⾼德地图的 iOS / Android MAUI 控件的主要知识。⽽今天我会重点介绍 iOS 原⽣库绑定的知识, 并告诉⼤家在绑定原⽣库过程的⼀些技巧,希望给到⼩伙伴⼀些启发。.
在绑定之前,我们需要学习⼀下 iOS 的动态库和静态库。最简单理解的⽅式是在 iOS 中静态库是以 .a 后缀结尾,动态库是以 .dylib 后缀结尾。⽆论静态库和动态库都可以打包成 Framework 。
1.静态库的特点是编译时会把库⽂件直接拷⻉⼀份到⽬标应⽤程序,⽽这个拷⻉是驻留在⽬标应⽤程序里面的,所以编译完成后,静态库的⽂件就没有⽤了。但有个缺点就是,因为需要拷⻉,所以⽣成的应⽤程序的容量会较大;
2.动态库和静态库刚好是相反,编译的时候是不会拷⻉到⽬标应⽤程序⾥⾯的,所以⽣成应⽤程序的体积较小,⽽且⼀个动态库可以共享给多个应⽤程序使⽤。但⽣成应⽤程序是依赖于动态库,这也导致经常会出现动态库找不到的情况。

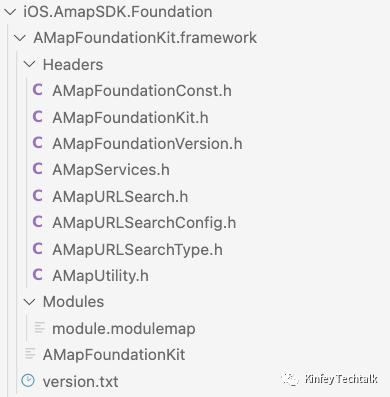

我们来拆解⼀下⾼德地图基础的 SDK - AMapFoundationKit.framework
这里就包含了对应的头⽂件信息,模块信息,以及静态库。你可以清晰看到⾼德地图打包成 Framrwork 的实现。这也是我们对库概念的认识,编译好的⼆进制代码,向外暴露头⽂件给第三⽅开发者使用。
Shapie 是⼀个⾮常好⽤的转换⼯具,它⽀持在 macOS 下对 Objective-C 的库的转。通过 Sharpie 可以对库⽂件给出的头⽂件进⾏转换完成 C# 的绑定。在 MAUI 前身 Shapie ⼯具就已经存在 , 我经常就利⽤这个⼯具做转换。
因为这次⾼德地图的功能我⽤到 3D ,所以我会对⾼德的 AMapFoundationKit.Framework 和MAMapKit.framework 两个 Framework 进⾏绑定转换。
sharpie bind -framework AMapFoundationKit.framework -sdk iphoneos15.5
03 转换 MAMapKit.framework
sharpie bind -framework MAMapKit.framework -sdk iphoneos15.5
MAMapKit.framework 依赖于 AMapFoundationKit.framework ,所以要放在⼀个相同的⽬录下。
这⾥⾯要注意,你需要安装好 Xcode ,建议安装到最新 ,并对应最新的 iOS SDK , 当然你也可以根据需要绑定不同版本的 iOS SDK , 你可以通过⼀次是命令查看环境。
sharpie xcode -sdks
通过命令⾏绑定⽣成的是两个⽂件是 StructsAndEnums.cs 和 ApiDefinitions.cs ,StructsAndEnums.cs 对应的是⼀些常量和枚举类型, ApiDefinitions.cs 对应的是⼀些接⼝和⽅法 。
这⾥创建需要注意,现在 Visual Studio 2022 的模版都没有完成,现在⼤家⽤命令⾏创建,因为我们有两个项⽬,需要创建两个 Binding 的项⽬分别是:
dotnet new iosbinding -o iOS.AMap.Foundation
dotnet new iosbinding -o iOS.AMap.3

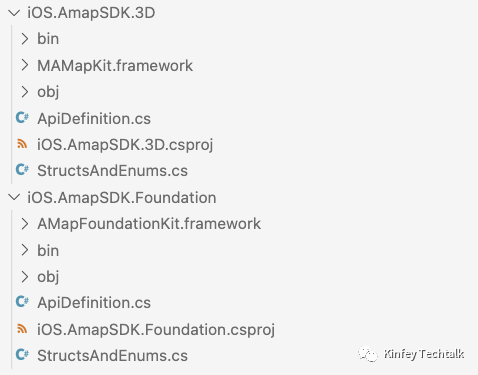

⽣成好后,需要把 AMapFoundationKit.framework 放到 iOS.AMap.Foundation 的⽬录下,MAMapKit.framework 放到 iOS.AMap.3D ⽬录下。并把⽣成的 StructsAndEnums.cs 和 ApiDefinitions.cs 放到对应⽬录。
<ItemGroup>
<ObjcBindingApiDefinition Include="ApiDefinitions.cs" />
<ObjcBindingCoreSource Include="StructsAndEnums.cs" />
</ItemGroup>
2. 对 iOS.AMap.Foundation 进⾏编译
<ItemGroup>
<NativeReference Include="AMapFoundationKit.framework">
<Kind>Framework</Kind>
<ForceLoad>True</ForceLoad>
<SmartLink>False</SmartLink>
</NativeReference>
</ItemGroup>
Kind :原⽣绑定类型可以是 Framwork 也可以是 StaticLibary
ForceLoad :强加载,选择 True
SmartLink :智能链接
完成的项⽬.csproj 设置为
<Project Sdk="Microsoft.NET.Sdk">
<PropertyGroup>
<TargetFramework>net6.0-ios</TargetFramework>
<Nullable>enable</Nullable>
<ImplicitUsings>true</ImplicitUsings>
<IsBindingProject>true</IsBindingProject>
<AllowUnsafeBlocks>true</AllowUnsafeBlocks>
<NoBindingEmbedding>false</NoBindingEmbedding>
</PropertyGroup>
<ItemGroup>
<ObjcBindingApiDefinition Include="ApiDefinitions.cs" />
<ObjcBindingCoreSource Include="StructsAndEnums.cs" />
</ItemGroup>
<ItemGroup>
<NativeReference Include="AMapFoundationKit.framework">
<Kind>Framework</Kind>
<ForceLoad>True</ForceLoad>
<SmartLink>False</SmartLink>
</NativeReference>
</ItemGroup>
</Project>

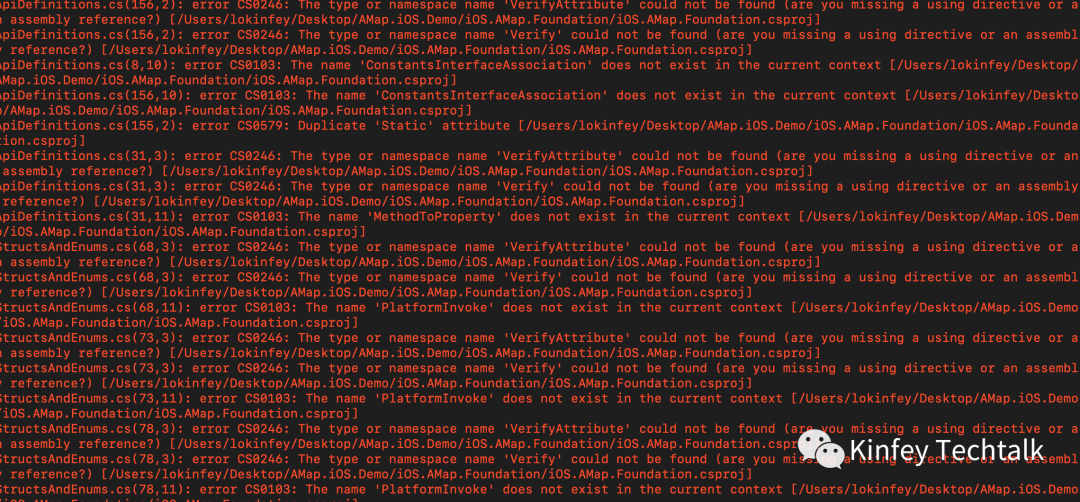

编译 iOS.AMap.Foundation , 你会觉得奔溃,因为⾮常多的出错信息。这是因为 Shapie 做转换时,⼀些转换没做好导致的,这个时候你就需要⼀个⼀个进⾏调整。
*The type or namespace name 'VerifyAttribute' could not be found
这类信息时因为转换时候没有确认好属性,所以会增加 VerifyAttribute 字段,这个⼀般情况下把这个字段注释掉就可以了,如
static class CFunctions
{
// NSString * AMapEmptyStringIfNil (NSString *s);
[DllImport ("__Internal")]
// [Verify (PlatformInvoke)]
static extern NSString AMapEmptyStringIfNil (NSString s);
// extern CLLocationCoordinate2D AMapCoordinateConvert
(CLLocationCoordinate2D coordinate, AMapCoordinateType type);
[DllImport ("__Internal")]
// [Verify (PlatformInvoke)]
static extern CLLocationCoordinate2D AMapCoordinateConvert
(CLLocationCoordinate2D coordinate, AMapCoordinateType type);
// extern BOOL AMapDataAvailableForCoordinate (CLLocationCoordinate2D
coordinate);
[DllImport ("__Internal")]
// [Verify (PlatformInvoke)]
static extern bool AMapDataAvailableForCoordinate
(CLLocationCoordinate2D coordinate);
}
*The type or namespace name 'AMapFoundationKit'
命名空间问题,这个你需要为 StructsAndEnums.cs 和 ApiDefinitions.cs 增加命名控件就可以了,你可以直
接⽤ AMapFoundationKit ,也可以⾃⼰修改喜欢的名字 ,我这⾥⽤ iOS.AMap.Foundation 名字和项⽬对应
*Duplicate 'Static' attribute
这个是因为 ApiDefinitions.cs 的 Constants 重复定义了,这个就需要重新整理归并为⼀个就可以了
*Unsupported type for Fields: bool for 'iOS.AMap.Foundation.Constants _amapLocationOverseas'.e
类型不对应导致编译不通过,这个时候我修改为
[Field ("_amapLocationOverseas", "__Internal")]
IntPtr _amapLocationOverseas { get; }
这样你就可以编译通过 iOS.AMap.Foundation
1. 对 iOS.AMap.3D 进⾏编译
添加对 iOS.AMap.Foundation的引⽤
因为 MAMapKit.framework 依赖于 AMapFoundationKit.framework , 所以 iOS.AMap.3D 是依赖于
iOS.AMap.Foundation
<ItemGroup>
<ProjectReference
Include="..\iOS.Amap.Foundation\iOS.Amap.Foundation.csproj" />
</ItemGroup>
引⼊ MAMapKit.framework
<ItemGroup>
<NativeReference Include="MAMapKit.framework">
<Kind>Framework</Kind>
<ForceLoad>True</ForceLoad>
<SmartLink>True</SmartLink>
<Frameworks>GLKit OpenGLES UIKit Foundation CoreGraphics QuartzCore
CoreLocation CoreTelephony SystemConfiguration Security AdSupport
JavaScriptCore</Frameworks>
<LinkerFlags>-lz -lstdc++ -lc++</LinkerFlags>
</NativeReference>
</ItemGroup>
这个和 AMapFoundationKit.framework 不⼀样的, 需要添加 Framework 编译时需要依赖的项, 以及⽤到的编译⽅式 ,这个和你绑定的 framework 有关, 我这⾥选择⾼德地图,所以按照它们的⽂档要求做了相关设置。
完成的项⽬.csproj 设置为
<Project Sdk="Microsoft.NET.Sdk">
<PropertyGroup>
<TargetFramework>net6.0-ios</TargetFramework>
<RootNamespace>iOS.Amap._3D</RootNamespace>
<Nullable>enable</Nullable>
<ImplicitUsings>true</ImplicitUsings>
<IsBindingProject>true</IsBindingProject>
<AllowUnsafeBlocks>true</AllowUnsafeBlocks>
<NoBindingEmbedding>false</NoBindingEmbedding>
</PropertyGroup>
<ItemGroup>
<ObjcBindingApiDefinition Include="ApiDefinitions.cs" />
<ObjcBindingCoreSource Include="StructsAndEnums.cs" />
</ItemGroup>
<ItemGroup>
<NativeReference Include="MAMapKit.framework">
<Kind>Framework</Kind>
<ForceLoad>True</ForceLoad>
<SmartLink>True</SmartLink>
<Frameworks>GLKit OpenGLES UIKit Foundation CoreGraphics QuartzCore
CoreLocation CoreTelephony SystemConfiguration Security AdSupport
JavaScriptCore</Frameworks>
<LinkerFlags>-lz -lstdc++ -lc++</LinkerFlags>
</NativeReference>
</ItemGroup>
<ItemGroup>
<ProjectReference
Include="..\iOS.Amap.Foundation\iOS.Amap.Foundation.csproj" />
</ItemGroup>
</Project>
编译 iOS.AMap.3D,你会⽐之前更奔溃,这个时候你需要有⾜够的耐⼼, 除了和之前差不多的出错信息外,还有⼀些新的状况,我这⾥列举⼀下
*Type 'MAMapViewDelegate' already defines a member called 'MapView' with the same parameter types
造成这个原因是因为⽅法重名了,这也是 Objective-C 声明式语法和传统语法不⼀样的地⽅,所以你要针对这个做重命名
如这个
// @optional -(void)mapView:(MAMapView *)mapView didAnnotationViewTapped:
(MAAnnotationView *)view;
[Export ("mapView:didAnnotationViewTapped:")]
void MapView (MAMapView mapView, MAAnnotationView view);
修改为
// @optional -(void)mapView:(MAMapView *)mapView didAnnotationViewTapped:
(MAAnnotationView *)view;
[Export ("mapView:didAnnotationViewTapped:")]
void MapViewDidAnnotationViewTapped (MAMapView mapView, MAAnnotationView
view);
*The type or namespace name 'IMAOverlay' could not be found
这个是命名出错,在 ApiDefinitions.cs ⽂件中你可以找到 MAOverlay
[Protocol]
interface MAOverlay : IMAAnnotation
{
// @required -(CLLocationCoordinate2D)coordinate;
[Abstract]
[Export ("coordinate")]
// [Verify (MethodToProperty)]
CLLocationCoordinate2D Coordinate { get; }
// @required -(MAMapRect)boundingMapRect;
[Abstract]
[Export ("boundingMapRect")]
// [Verify (MethodToProperty)]
MAMapRect BoundingMapRect { get; }
}
所以把所有 IMAOverlay 替换为 MAOverlay 即可。
*The type or namespace name 'AutoGeneratedName' could not be found
把 AutoGeneratedName 取消
*Constant value '-1' cannot be converted to a 'ulong'
指定类型错误 AllCorners = ~0x0 改为 AllCorners = 0x0
Do not know how to make a signature for CoreLocation.CLLocationCoordinate2D in parameter `coordinates'
C# 是没有指针的,在 Sharpie 转换时出错了
*'MAMapView_UserLocation.HeadingFilter': cannot declare instance members in a static class
// @property (nonatomic) CLLocationDegrees headingFilter;
[Export ("headingFilter")]
double HeadingFilter( { get; set; })
这个定义要换成
// @property (nonatomic) CLLocationDegrees headingFilter;
[Export ("headingFilter")]
double HeadingFilter();
*Cannot convert type 'Foundation.NSObject' to 'nint'
// @property (nonatomic, weak) id<MAOverlayRenderDelegate>
rendererDelegate;
[NullAllowed, Export ("rendererDelegate", ArgumentSemantic.Weak)]
NSObject WeakRendererDelegate { get; set; }
修改为
// @property (nonatomic, weak) id<MAOverlayRenderDelegate>
rendererDelegate;
[NullAllowed, Export ("rendererDelegate", ArgumentSemantic.Weak)]
IntPtr WeakRendererDelegate { get; set; }
或者排除是⼀个漫⻓的过程,但编译成功⼀刻你会⾮常兴奋,这样我们就把 AMapFoundationKit.framework 和 MAMapKit.framework 绑定成功了。
-
在 Sharpie ⽣成的⽬录下 StructsAndEnum.cs ,⽽在构建的 Binding ⽬录下是 ApiDefinition.cs,要把它替换掉。所以要对 .csproj 项⽬进⾏修改。

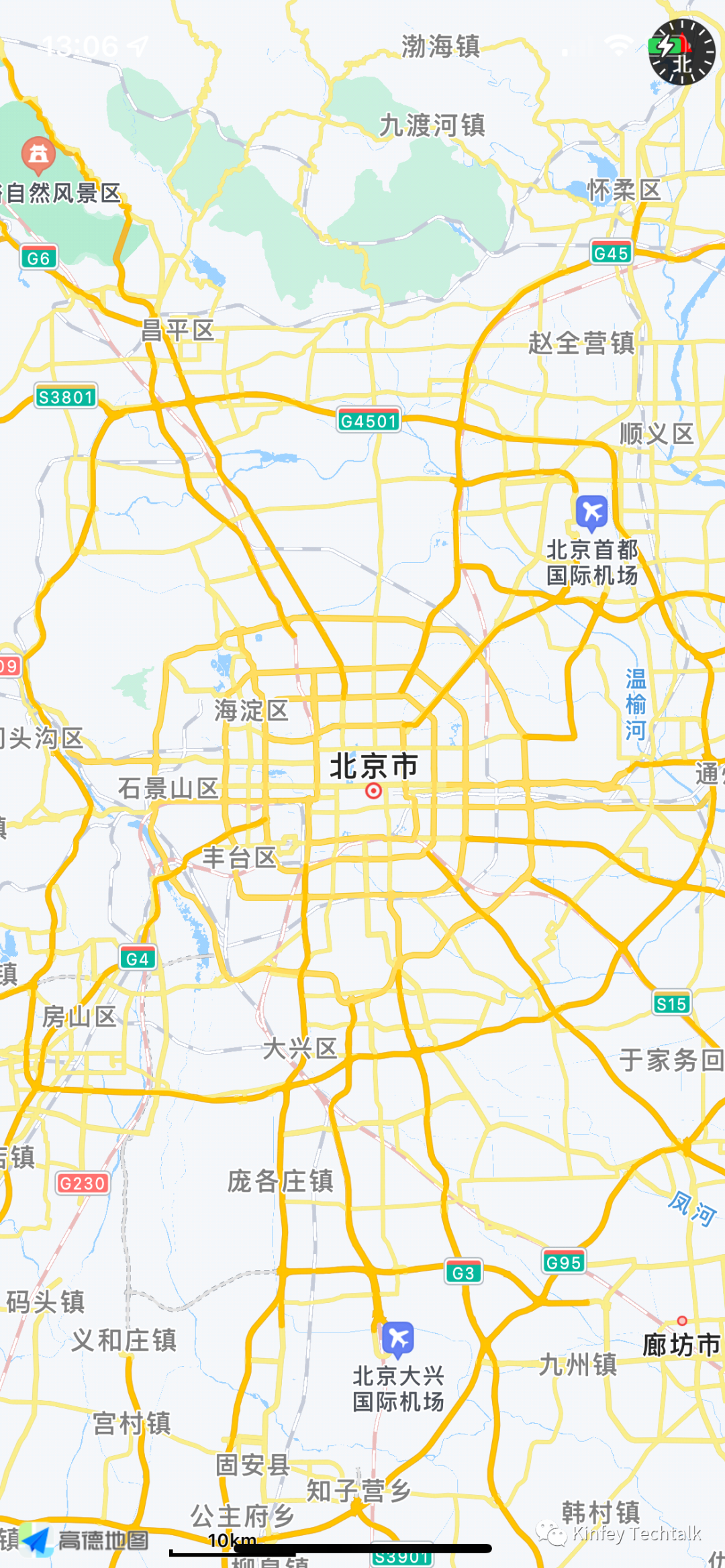

具体实现请到我的 GitHub Repo 下载 :
https://github.com/kinfey/AMapMAUIControls/tree/main/samples/iOS.Bindings/AMap.iOS.Demo
原⽣库绑定虽然⽐较多繁琐的事情,但是实际上也是⼗分治愈的,当你看到编译通过的那⼀刻,你就会明⽩个中的快乐。还有⼀点,很多⼈认为跨平台移动开发不需要平台的基础知识了,实际还是需要。特别在这种原⽣库的绑定上,就需要你既会 C# ⼜会Objective-C 。希望该例⼦能给各位有所启发。请⼤家期待下⼀篇。
