SkiaSharp是一个跨平台2D图形API，用于.NET平台，基于Google's Skia Graphics库(skia.org网站). 它提供了一个全面的2D API，可以跨移动、服务器和桌面模型来渲染图像。该图形库可实现获取指定坐标像素值、绘制2d图形、绘制文字（必须有相应字库支持）、创建缩略图等，微软是大力支持的。.
可见此地址:
https://docs.microsoft.com/zh-cn/dotnet/api/skiasharp
首先是想熟悉下SkiaSharp的操作，另外呢，想基于SkiaSharp来做跨平台的UI渲染器，一直没有动手，在搜集资料，现在基本搜集的差不多了，所以，就找点例子，学学，也挺有趣的。
一个时钟的效果
大概是以下的样子，也挺简单的，就是对度数是要计算的，用到的方法，也就画圆和画路径以及画文本几个方法。
然后，根据时间，自动转动时钟的指针。
自从毕业后，就没有做过这样的案例了。但是，上手了，感觉还是很欣喜的。
Wpf 和 SkiaSharp
新建一个WPF项目，然后，Nuget包即可
Install-Package SkiaSharp.Views.WPF -Version 2.88.0
其中核心逻辑是这部分，会以我设置的60FPS来刷新当前的画板。
skContainer.PaintSurface += SkContainer_PaintSurface;
_ = Task.Run(() =>
{
while (true)
{
try
{
Dispatcher.Invoke(() =>
{
skContainer.InvalidateVisual();
});
_ = SpinWait.SpinUntil(() => false, 1000 / 60);//每秒60帧
}
catch
{
break;
}
}
});
时钟逻辑
/// <summary>
/// 一个简单版的时钟
/// </summary>
public class DrawClock
{
public SKPoint centerPoint;
public int Radius = 0;
public int HAND_TRUNCATION;
public int HOUR_HAND_TRUNCATION;
public int HAND_RADIUS;
public int TIPS;
/// <summary>
/// 渲染
/// </summary>
public void Render(SKCanvas canvas, SKTypeface Font, int Width, int Height)
{
centerPoint = new SKPoint(Width / 2, Height / 2);
this.Radius = (int)(centerPoint.Y - 50);
HAND_TRUNCATION = Width / 25;
HOUR_HAND_TRUNCATION = Width / 10;
HAND_RADIUS = this.Radius + 15;
TIPS = this.Radius - 40;
canvas.Clear(SKColors.SkyBlue);
DrawCircle(canvas, Font);
DrawCenter(canvas, Font);
DrawHands(canvas, Font);
DrawTimeNumber(canvas, Font);
DrawTips(canvas, Font);
using var paint = new SKPaint
{
Color = SKColors.Black,
IsAntialias = true,
Typeface = Font,
TextSize = 20
};
using var paint2 = new SKPaint
{
Color = SKColors.Blue,
IsAntialias = true,
Typeface = Font,
TextSize = 24
};
string msg = $"{DateTime.Now:yyyy-MM-dd HH:mm:ss:fff:ffffff}";
string tishi = " WPF SkiaSharp 自绘时钟 基础代码";
string by = $"by 蓝创精英团队";
canvas.DrawText(msg, 0, 30, paint);
canvas.DrawText(tishi, 450, 30, paint);
canvas.DrawText(by, 600, 400, paint2);
}
/// <summary>
/// 画一个圆
/// </summary>
public void DrawCircle(SKCanvas canvas, SKTypeface Font)
{
using var paint = new SKPaint
{
Color = SKColors.Black,
Style = SKPaintStyle.Stroke,
IsAntialias = true,
StrokeWidth = 2
};
canvas.DrawCircle(centerPoint.X, centerPoint.Y, Radius, paint);
}
/// <summary>
/// 时钟的核心
/// </summary>
public void DrawCenter(SKCanvas canvas, SKTypeface Font)
{
using var paint = new SKPaint
{
Color = SKColors.Black,
Style = SKPaintStyle.Fill,
IsAntialias = true,
StrokeWidth = 2
};
canvas.DrawCircle(centerPoint.X, centerPoint.Y, 5, paint);
}
private void DrawHand(SKCanvas canvas, SKTypeface Font, int times, bool isHour = false)
{
var angle = Math.PI * 2 * (times / (double)60) - Math.PI / 2;
var handRadius = isHour ? this.Radius - HAND_TRUNCATION - HOUR_HAND_TRUNCATION : this.Radius - HAND_TRUNCATION;
using var paint = new SKPaint
{
Color = (DateTimeOffset.Now.Second % 4 <= 1) ? SKColors.Red : SKColors.Green,
Style = SKPaintStyle.Fill,
StrokeWidth = 2,
IsStroke = true,
StrokeCap = SKStrokeCap.Round,
IsAntialias = true
};
var path = new SKPath();
path.MoveTo(centerPoint);
path.LineTo((float)(centerPoint.X + Math.Cos(angle) * handRadius), (float)(centerPoint.Y + Math.Sin(angle) * handRadius));
path.Close();
canvas.DrawPath(path, paint);
}
/// <summary>
/// 画时针
/// </summary>
public void DrawHands(SKCanvas canvas, SKTypeface Font)
{
var time = DateTime.Now;
var hour = time.Hour > 12 ? time.Hour - 12 : time.Hour;
DrawHand(canvas, Font, hour * 5 + time.Minute / 60 * 5, true);
DrawHand(canvas, Font, time.Minute, false);
DrawHand(canvas, Font, time.Second, false);
}
/// <summary>
/// 画时间点
/// </summary>
public void DrawTimeNumber(SKCanvas canvas, SKTypeface Font)
{
using var paint = new SKPaint
{
Color = SKColors.Black,
IsAntialias = true,
Typeface = Font,
TextSize = 24
};
for (int i = 1; i <= 12; i++)
{
var angle = Math.PI / 6 * (i - 3);
var number = i.ToString();
var numberTextWidth = paint.MeasureText(number);
canvas.DrawText(number, (float)(centerPoint.X + Math.Cos(angle) * HAND_RADIUS - numberTextWidth / 2), (float)(centerPoint.Y + Math.Sin(angle) * HAND_RADIUS + 24 / 3), paint);
}
}
/// <summary>
/// 画提示信息
/// </summary>
public void DrawTips(SKCanvas canvas, SKTypeface Font)
{
using var paint = new SKPaint
{
Color = SKColors.Black,
IsAntialias = true,
Typeface = Font,
TextSize = 20
};
var now = DateTime.Now;
//年月日
var Date = $"{now.Year}/{now.Month}/{now.Day}";
var DateTextWidth = paint.MeasureText(Date);
var angle = Math.PI / 6 * (6 - 3);
canvas.DrawText(Date, (float)(centerPoint.X + Math.Cos(angle) * TIPS - DateTextWidth / 2), (float)(centerPoint.Y + Math.Sin(angle) * TIPS), paint);
//PM AM
var amOrPm = now.Hour > 12 ? "PM" : "AM";
var amOrPmTextWidth = paint.MeasureText(amOrPm);
var angle2 = Math.PI / 6 * (12 - 3);
canvas.DrawText(amOrPm, (float)(centerPoint.X + Math.Cos(angle2) * TIPS - amOrPmTextWidth / 2), (float)(centerPoint.Y + Math.Sin(angle2) * TIPS), paint);
}
}

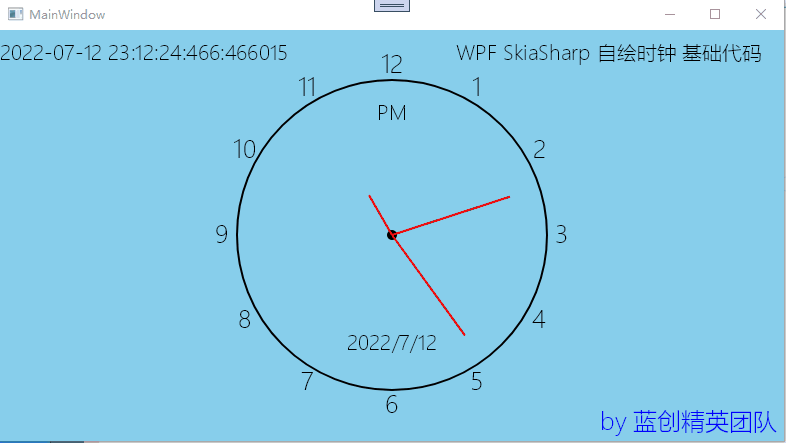

运行结果
总结
这个录的GIF播放效果真不错，基本体现出来了效果。
也算是入门了，后期，可以基于SkiaSharp，做更多的案例，出来，当然，还是基于自绘的实现。
代码地址
https://github.com/kesshei/WPFSkiaClockDemo.git
https://gitee.com/kesshei/WPFSkiaClockDemo.git
