有点酷,使用 .NET MAUI 探索太空

 设计

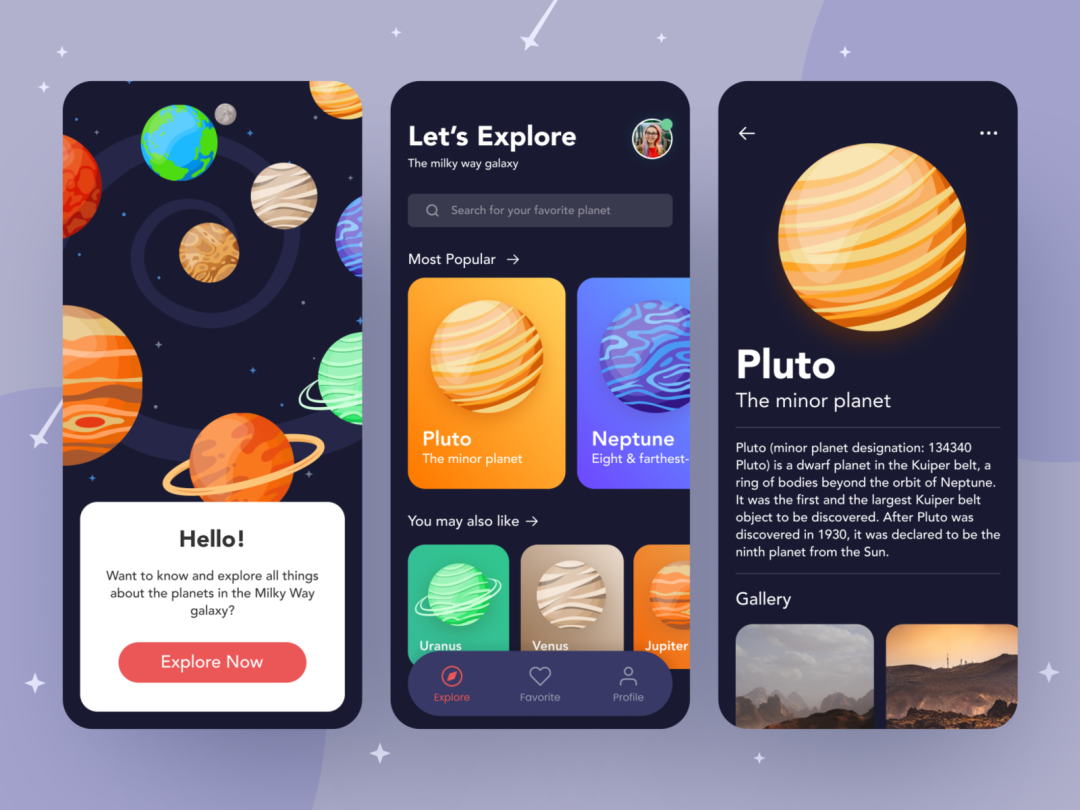

我准备用 .NET Maui 实现一个非常有意思的 "前往太空" 的程序。第一步,需要图片素材,我使用了 Aan Ragil 的一组非常棒的 Dribbble 素材图片。

当然,你也可以在最下面的链接进行下载。.

有点酷,使用 .NET MAUI 探索太空

  实现

这个应用程序的完整源代码可以在 Github 上访问并下载。我们总共需要做三个页面。

  初始化项目

我创建了一个空的 .NET Maui 程序。然后,我禁用了每个页面上的导航栏,然后设置了背景颜色,主要是修改了 App.xaml 文件。

<!-- Content Page Style -->
<Style TargetType="ContentPage" ApplyToDerivedTypes="True">
    <Setter Property="NavigationPage.HasNavigationBar" Value="False" />
    <Setter Property="BackgroundColor" Value="{StaticResource PageBackgroundColor}" />
    <Setter Property="Padding" Value="0"/>
</Style>

<!-- Navigation Page -->
<Style TargetType="NavigationPage" ApplyToDerivedTypes="True">
    <Setter Property="BackgroundColor" Value="{StaticResource PageBackgroundColor}" />
</Style>

对于安卓设备, 使用 Android LifeCycle 事件让状态栏变为半透明。

builder
    .UseMauiApp<App>()
    .ConfigureFonts(fonts =>
    {
        fonts.AddFont("Montserrat-Medium.ttf", "RegularFont");
        fonts.AddFont("Montserrat-SemiBold.ttf", "MediumFont");
        fonts.AddFont("Montserrat-Bold.ttf", "BoldFont");
    })
    .ConfigureLifecycleEvents(events =>
    {
#if ANDROID
        events.AddAndroid(android => android.OnCreate((activity, bundle) => MakeStatusBarTranslucent(activity)));

        static void MakeStatusBarTranslucent(Android.App.Activity activity)
        {
            activity.Window.SetFlags(Android.Views.WindowManagerFlags.LayoutNoLimits, Android.Views.WindowManagerFlags.LayoutNoLimits);

            activity.Window.ClearFlags(Android.Views.WindowManagerFlags.TranslucentStatus);

            activity.Window.SetStatusBarColor(Android.Graphics.Color.Transparent);
        }
#endif
    });

为了让视图覆盖底部,每个页面使用了 IgnoreSafeArea 属性。

<ContentPage>
    <Grid IgnoreSafeArea="{OnPlatform Android=False, iOS=True}">
    </Grid>
</ContentPage>

为了简单起见,我没有使用 MVVM 模式,而是普通的 Maui UI 结构。创建了一个 **Planet **类来保存有关行星的信息,并创建了一个 PlanetService 服务。

初始页

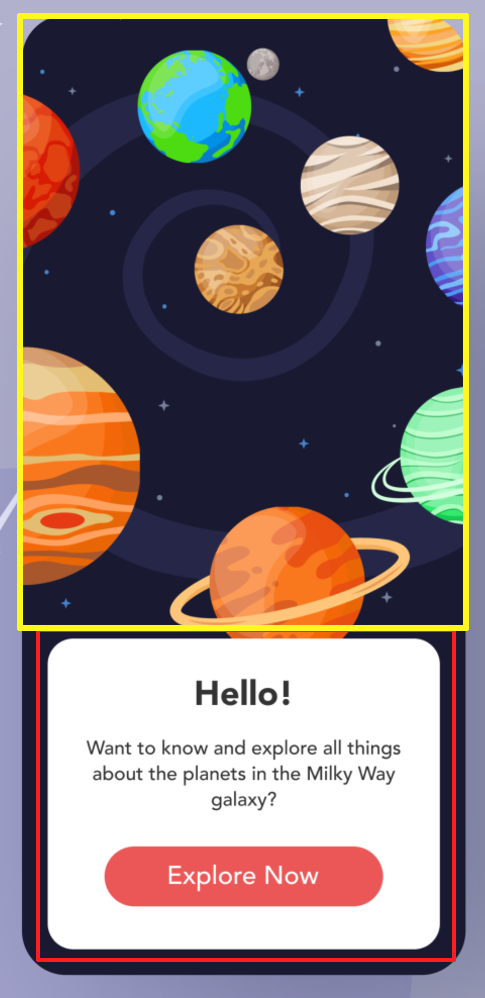

接下来是初始页面,我把它分成了两部分。

有点酷,使用 .NET MAUI 探索太空

上部分由每个行星的单独图像组成的。我使用了 HorizontalOptions、VerticalOptions、TranslationX、TranslationY、WidthRequest 和 HeightRequest 控制每个图像的位置和大小。

<Image
    Source="earth.png"
    VerticalOptions="Start" HorizontalOptions
    ="Center"
    TranslationX="-48"
    TranslationY="148"
    WidthRequest="96"
    HeightRequest="96"/>

下部分,我没有使用 Frame 控件,而是使用了更轻量的 Border 控件。

<Border
Padding="24,32"
BackgroundColor="{StaticResource FrameBackgroundColor}"
Stroke="{StaticResource BorderColor}"
HorizontalOptions="Fill"
VerticalOptions="End"
Margin="20">
<Border.StrokeShape>
    <RoundRectangle CornerRadius="24"/>
</Border.StrokeShape>

<VerticalStackLayout
    Spacing="16">

    <Label
        HorizontalOptions="Center"
        HorizontalTextAlignment="Center"
        Style="{StaticResource IntroPageHeaderStyle}"
        Text="Hello!"/>


    <Label
        HorizontalOptions="Center"
        HorizontalTextAlignment="Center"
        LineBreakMode="WordWrap"
        Style="{StaticResource IntroPageTextStyle}"
        Text="Want to know and explain all things about the planets in the Milky Way galaxy?"/>

    <Button
        Style="{StaticResource ButtonStyle}"
        Text="Explore Now"
        HorizontalOptions="Center"
        Margin="0,12,0,6"
        Clicked="ExploreNow_Clicked"/>

</VerticalStackLayout>

</Border>

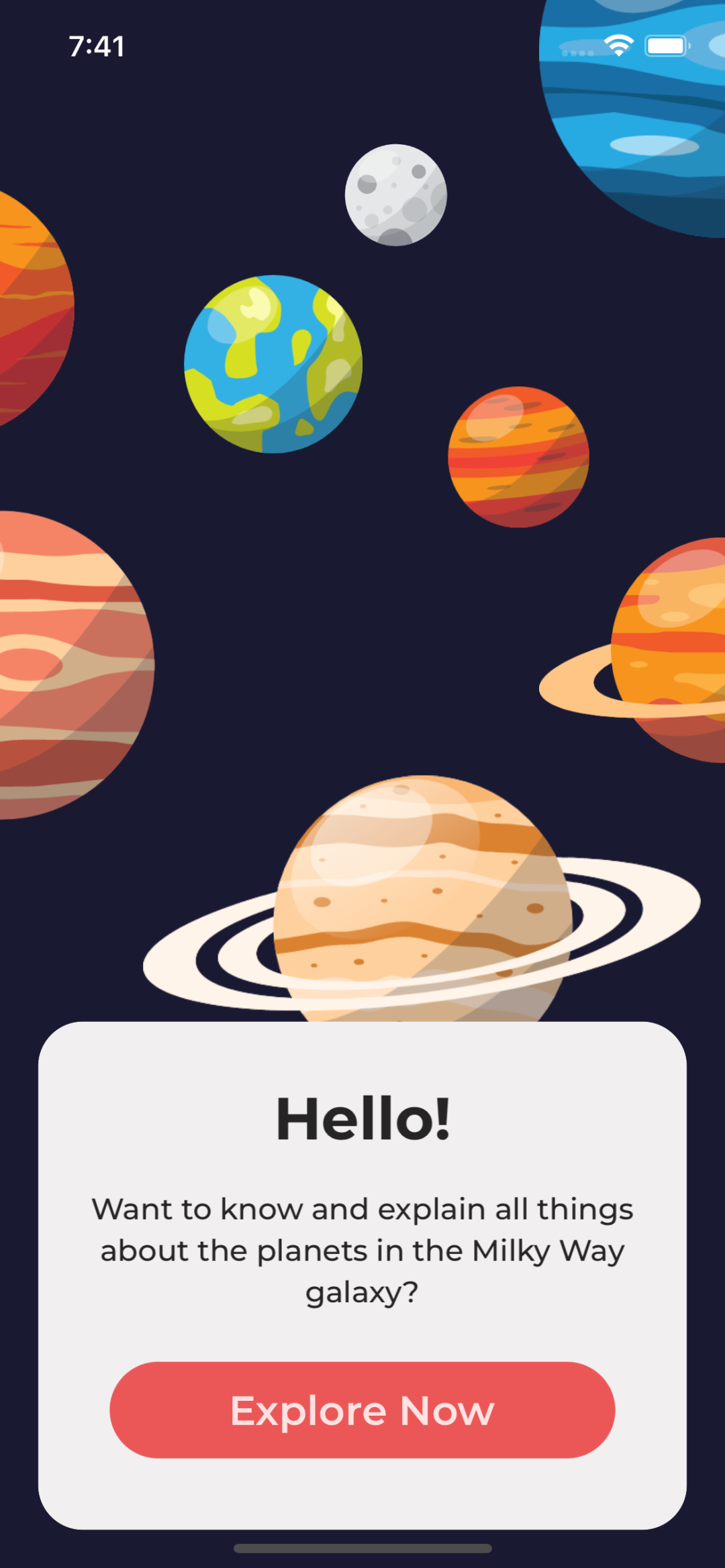

看一下第一个页面的效果。

有点酷,使用 .NET MAUI 探索太空

看起来还不错吧!我们还可以设置淡入的效果,加一些动画。

   protected override async void OnAppearing()
    {
        base.OnAppearing();

        if (this.AnimationIsRunning("TransitionAnimation"))
            return;

        var parentAnimation = new Animation();

        //Planets Animation
        parentAnimation.Add(0, 0.2, new Animation(v => imgMercury.Opacity = v, 0, 1, Easing.CubicIn));
        parentAnimation.Add(0.1, 0.3, new Animation(v => imgVenus.Opacity = v, 0, 1, Easing.CubicIn));
        parentAnimation.Add(0.2, 0.4, new Animation(v => imgEarth.Opacity = v, 0, 1, Easing.CubicIn));
        parentAnimation.Add(0.3, 0.5, new Animation(v => imgMars.Opacity = v, 0, 1, Easing.CubicIn));
        parentAnimation.Add(0.4, 0.6, new Animation(v => imgJupiter.Opacity = v, 0, 1, Easing.CubicIn));
        parentAnimation.Add(0.5, 0.7, new Animation(v => imgSaturn.Opacity = v, 0, 1, Easing.CubicIn));
        parentAnimation.Add(0.6, 0.8, new Animation(v => imgNeptune.Opacity = v, 0, 1, Easing.CubicIn));
        parentAnimation.Add(0.7, 0.9, new Animation(v => imgUranus.Opacity = v, 0, 1, Easing.CubicIn));

        //Intro Box Animation
        parentAnimation.Add(0.7, 1, new Animation(v => frmIntro.Opacity = v, 0, 1, Easing.CubicIn));

        //Commit the animation
        parentAnimation.Commit(this, "TransitionAnimation", 16, 3000, null, null);
    }

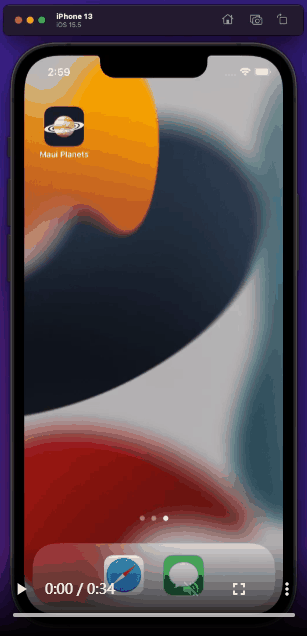

差不多完成了,我们看一下在手机上最后的效果,非常酷!

有点酷,使用 .NET MAUI 探索太空

你可以在下面的地址找到它的源代码和素材信息。

https://github.com/naweed/MauiPlanets

https://dribbble.com/shots/15592060-Planet-Mobile-App
