WPF 实现 Gitee 气泡菜单(一)

  • 框架使用大于等于.NET40
  • Visual Studio 2022;
  • 项目使用 MIT 开源许可协议;.
WPF 实现 Gitee 气泡菜单(一)
  • 需要实现气泡菜单需要使用Canvas画布进行添加内容;
  • 但是为了使用方便需要在ListBox中使用Canvas做为ItemsPanelTemplate
  • 使用时只需要在ListBox中添加ListBoxItem就行;

1) BubbleControl.cs 代码如下;

  • BubbleControl.cs 继承 Control创建依赖属性Content

  • 根据Content集合循环随机生成WidthHeight在生成SetLeftSetTop 需要判断重叠面积不能超过当前面积的百分之六十~九十;

using System;
using System.Collections.Generic;
using System.Collections.ObjectModel;
using System.Diagnostics;
using System.Linq;
using System.Windows;
using System.Windows.Controls;
using System.Windows.Media;
using System.Windows.Shapes;
using WPFDevelopers.Helpers;

namespace WPFDevelopers.Controls
{
    [TemplatePart(Name = BorderTemplateName, Type = typeof(Border))]
    public class BubbleControl : ContentControl
    {
        private const string BorderTemplateName = "PART_Border";



        public new static readonly DependencyProperty ContentProperty =
            DependencyProperty.Register("Content", typeof(ObservableCollection<BubbleItem>), typeof(BubbleControl),
                new PropertyMetadata(null));

        public new static readonly DependencyProperty BorderBackgroundProperty =
            DependencyProperty.Register("BorderBackground", typeof(Brush), typeof(BubbleControl),
                new PropertyMetadata(null));

        private Border _border;
        private double _bubbleItemX, _bubbleItemY;
        private Ellipse _ellipse;
        private int _number;

        private readonly List<Rect> _rects = new List<Rect>();
        private RotateTransform _rotateTransform;
        private double _size;
        private const int _maxSize = 120;


        static BubbleControl()
        {
            DefaultStyleKeyProperty.OverrideMetadata(typeof(BubbleControl),
                new FrameworkPropertyMetadata(typeof(BubbleControl)));
        }

        public BubbleControl()
        {

            Loaded += delegate
            {
                double left = 0d, top = 0d;
                for (var y = 0; y < (int)Height / _maxSize; y++)
                {
                    double yNum = y + 1;
                    yNum = _maxSize * yNum;
                    for (var x = 0; x < (int)Width / _maxSize; x++)
                    {
                        if (_number > Content.Count - 1)
                            return;
                        var item = Content[_number];
                        if (double.IsNaN(item.Width) || double.IsNaN(item.Height))
                            SetBubbleItem(item);
                        _bubbleItemX = Canvas.GetLeft(item);
                        _bubbleItemY = Canvas.GetTop(item);
                        if (double.IsNaN(_bubbleItemX) || double.IsNaN(_bubbleItemY))
                        {

                            double xNum = x + 1;
                            xNum = _maxSize * xNum;
                            _bubbleItemX = ControlsHelper.NextDouble(left,xNum - _size  * ControlsHelper.NextDouble(0.6,0.9));
                            var _width = _bubbleItemX + _size;
                            _width = _width > Width ? Width - (Width - _bubbleItemX) - _size : _bubbleItemX;
                            _bubbleItemX = _width;
                            _bubbleItemY = ControlsHelper.NextDouble(top,yNum - _size * ControlsHelper.NextDouble(0.6, 0.9));
                            var _height = _bubbleItemY + _size;
                            _height = _height > Height ? Height - (Height - _bubbleItemY) - _size : _bubbleItemY;
                            _bubbleItemY = _height;

                        }
                        Canvas.SetLeft(item, _bubbleItemX);
                        Canvas.SetTop(item, _bubbleItemY);
                        left = left + _size;
                        if (item.Background is null)
                            item.Background = ControlsHelper.RandomBrush();
                        _rects.Add(new Rect(_bubbleItemX, _bubbleItemY, _size, _size));
                        _number++;
                    }
                    left = 0d;
                    top = top + _maxSize;
                }

            };
        }

        public new ObservableCollection<BubbleItem> Content
        {
            get => (ObservableCollection<BubbleItem>)GetValue(ContentProperty);
            set => SetValue(ContentProperty, value);
        }
        public Brush BorderBackground
        {
            get => (Brush)this.GetValue(BorderBackgroundProperty);
            set => this.SetValue(BorderBackgroundProperty, (object)value);
        }


        private void SetBubbleItem(BubbleItem item)
        {
            if (item.Text.Length >= 4)
                _size = ControlsHelper.GetRandom.Next(80, _maxSize);
            else
                _size = ControlsHelper.GetRandom.Next(50, _maxSize);
            item.Width = _size;
            item.Height = _size;
        }

        public override void OnApplyTemplate()
        {
            base.OnApplyTemplate();
            _border = GetTemplateChild(BorderTemplateName) as Border;
        }

        public override void BeginInit()
        {
            Content = new ObservableCollection<BubbleItem>();
            base.BeginInit();
        }
    }
}

2) ControlsHelper.cs 代码如下;

  • 随机Double值;
  • 随机颜色;
 private static long _tick = DateTime.Now.Ticks;
        public static Random GetRandom = new Random((int)(_tick & 0xffffffffL) | (int)(_tick >> 32));

        public static double NextDouble(double miniDouble, double maxiDouble)
        {
            if (GetRandom != null)
            {
                return GetRandom.NextDouble() * (maxiDouble - miniDouble) + miniDouble;
            }
            else
            {
                return 0.0d;
            }
        }
        public static Brush RandomBrush()
        {
            var R = GetRandom.Next(255);
            var G = GetRandom.Next(255);
            var B = GetRandom.Next(255);
            var color = Color.FromRgb((byte)R, (byte)G, (byte)B);
            var solidColorBrush = new SolidColorBrush(color);
            return solidColorBrush;
        }

3) BubbleItem.cs 代码如下;

using System.Windows;
using System.Windows.Controls;
using System.Windows.Input;

namespace WPFDevelopers
{
    public class BubbleItem : ListBoxItem
    {
        public static readonly DependencyProperty TextProperty =
            DependencyProperty.Register("Text", typeof(string), typeof(BubbleItem),
                new PropertyMetadata(string.Empty));

        public static readonly DependencyProperty SelectionCommandProperty =
           DependencyProperty.Register("SelectionCommand", typeof(ICommand), typeof(BubbleItem),
               new PropertyMetadata(null));

        static BubbleItem()
        {
            DefaultStyleKeyProperty.OverrideMetadata(typeof(BubbleItem),
                new FrameworkPropertyMetadata(typeof(BubbleItem)));
        }

        public string Text
        {
            get => (string)GetValue(TextProperty);
            set => SetValue(TextProperty, value);
        }
        public ICommand SelectionCommand
        {
            get => (ICommand)GetValue(SelectionCommandProperty);
            set => SetValue(SelectionCommandProperty, value);
        }

    }
}

4) BubbleControl.xaml 代码如下;

<ResourceDictionary xmlns="http://schemas.microsoft.com/winfx/2006/xaml/presentation"
                    xmlns:x="http://schemas.microsoft.com/winfx/2006/xaml"
                     xmlns:controls="clr-namespace:WPFDevelopers.Controls">


    <Style TargetType="{x:Type controls:BubbleControl}">
        <Setter Property="Width" Value="400"/>
        <Setter Property="Height" Value="400"/>
        <Setter Property="Template">
            <Setter.Value>
                <ControlTemplate TargetType="local:BubbleControl">
                    <Grid Width="{TemplateBinding Width}" Height="{TemplateBinding Height}">
                        <Border BorderBrush="#E9E9E9" BorderThickness="1"
                                Background="#FAFAFA"
                                Margin="45"
                                CornerRadius="400"
                                x:Name="PART_Border">
                            <Ellipse Fill="#FFFFFF" Margin="20"/>
                        </Border>
                        <ListBox ItemsSource="{TemplateBinding Content}"
                                 Background="Transparent" BorderBrush="Transparent"
                                 ScrollViewer.HorizontalScrollBarVisibility="Disabled"
                                 ScrollViewer.VerticalScrollBarVisibility="Disabled">
                            <ListBox.ItemContainerStyle>
                                <Style TargetType="{x:Type local:BubbleItem}">
                                    <Setter Property="Canvas.Left" Value="{Binding (Canvas.Left)}"/>
                                    <Setter Property="Canvas.Top" Value="{Binding (Canvas.Top)}"/><ResourceDictionary xmlns="http://schemas.microsoft.com/winfx/2006/xaml/presentation"
                    xmlns:x="http://schemas.microsoft.com/winfx/2006/xaml"
                    xmlns:controls="clr-namespace:WPFDevelopers.Controls">

    <ResourceDictionary.MergedDictionaries>
        <ResourceDictionary Source="Basic/ControlBasic.xaml"/>
        <ResourceDictionary Source="Basic/Animations.xaml"/>
    </ResourceDictionary.MergedDictionaries>

    <Style TargetType="{x:Type controls:BubbleControl}" BasedOn="{StaticResource ControlBasicStyle}">
        <Setter Property="Width" Value="400"/>
        <Setter Property="Height" Value="400"/>
        <Setter Property="Background" Value="{StaticResource WhiteSolidColorBrush}"/>
        <Setter Property="BorderThickness" Value="1"/>
        <Setter Property="BorderBrush" Value="{StaticResource SecondaryTextSolidColorBrush}"/>
        <Setter Property="BorderBackground" Value="{StaticResource BaseSolidColorBrush}"/>
        <Setter Property="Template">
            <Setter.Value>
                <ControlTemplate TargetType="controls:BubbleControl">
                    <Grid Width="{TemplateBinding Width}" Height="{TemplateBinding Height}">
                        <Border BorderBrush="{TemplateBinding BorderBrush}"
                                BorderThickness="{TemplateBinding BorderThickness}"
                                Background="{TemplateBinding BorderBackground}"
                                Margin="45"
                                CornerRadius="400"
                                x:Name="PART_Border">
                            <Ellipse Fill="{TemplateBinding Background}" Margin="20"/>
                        </Border>
                        <ListBox ItemsSource="{TemplateBinding Content}"
                                 Background="Transparent" BorderBrush="Transparent"
                                 ScrollViewer.HorizontalScrollBarVisibility="Disabled"
                                 ScrollViewer.VerticalScrollBarVisibility="Disabled"
                                 Style="{x:Null}">
                            <ListBox.ItemContainerStyle>
                                <Style TargetType="{x:Type controls:BubbleItem}">
                                    <Setter Property="Canvas.Left" Value="{Binding (Canvas.Left)}"/>
                                    <Setter Property="Canvas.Top" Value="{Binding (Canvas.Top)}"/>
                                    <Setter Property="Template">
                                        <Setter.Value>
                                            <ControlTemplate TargetType="controls:BubbleItem">
                                                <Grid Width="{TemplateBinding Width}" Height="{TemplateBinding Height}">
                                                    <Ellipse Fill="{TemplateBinding Background}" Opacity=".6"/>

                                                    <TextBlock VerticalAlignment="Center"
                                                               HorizontalAlignment="Center"
                                                               Padding="10,0">
                                                        <Hyperlink
                                                            Foreground="{StaticResource BlackSolidColorBrush}"
                                                            Command="{TemplateBinding SelectionCommand}">
                                                            <TextBlock Text="{TemplateBinding Text}"
                                                                       TextAlignment="Center"
                                                                       TextTrimming="CharacterEllipsis"
                                                                       ToolTip="{TemplateBinding Text}"/>
                                                        </Hyperlink>
                                                    </TextBlock>
                                                </Grid>
                                                <ControlTemplate.Triggers>
                                                </ControlTemplate.Triggers>
                                            </ControlTemplate>
                                        </Setter.Value>
                                    </Setter>
                                </Style>
                            </ListBox.ItemContainerStyle>
                            <ListBox.ItemsPanel>
                                <ItemsPanelTemplate>
                                    <Canvas IsItemsHost="True" Width="{TemplateBinding Width}"
                                            Height="{TemplateBinding Height}"/>
                                </ItemsPanelTemplate>
                            </ListBox.ItemsPanel>
                        </ListBox>
                    </Grid>
                </ControlTemplate>
            </Setter.Value>
        </Setter>
    </Style>

</ResourceDictionary>

5) BubbleControlExample.xaml 代码如下;

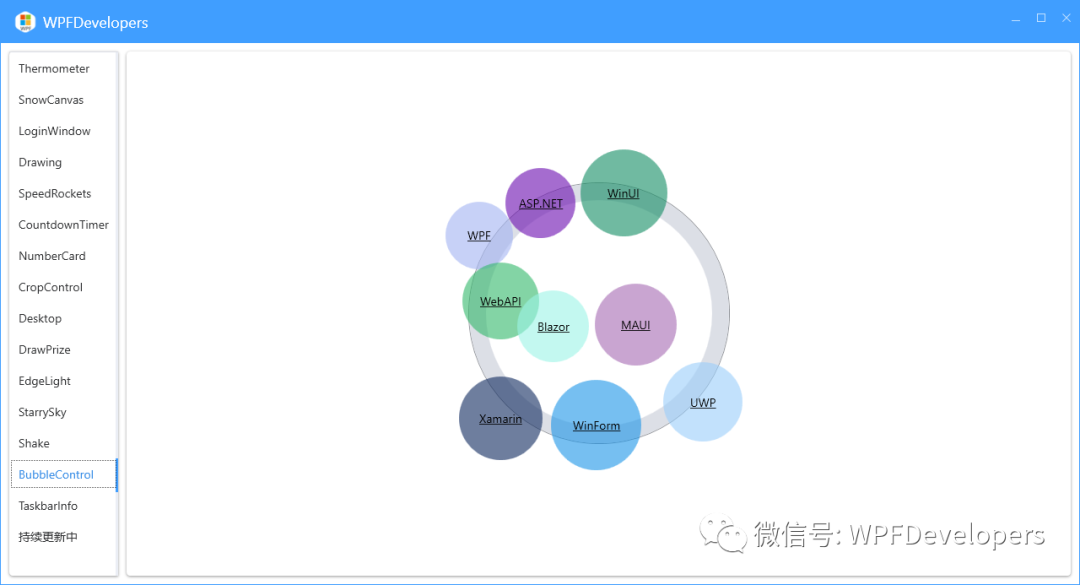

<local:BubbleControl x:Name="MyBubbleControl">
            <wpfdev:BubbleControl.Content>
                <wpfdev:BubbleItem  Text="WPF"
                                    SelectionCommand="{Binding WPFCommand,RelativeSource={RelativeSource AncestorType=local:BubbleControlExample}}"/>
                <wpfdev:BubbleItem  Text="ASP.NET"/>
                <wpfdev:BubbleItem  Text="WinUI"/>
                <wpfdev:BubbleItem  Text="WebAPI"/>
                <wpfdev:BubbleItem  Text="Blazor"/>
                <wpfdev:BubbleItem  Text="MAUI"
                                    SelectionCommand="{Binding MAUICommand,RelativeSource={RelativeSource AncestorType=local:BubbleControlExample}}"/>
                <wpfdev:BubbleItem  Text="Xamarin"/>
                <wpfdev:BubbleItem  Text="WinForm"/>
                <wpfdev:BubbleItem  Text="UWP"/>
            </wpfdev:BubbleControl.Content>
        </local:BubbleControl>

6) BubbleControlExample.xaml.cs 代码如下;

using System.Windows.Controls;
using System.Windows.Input;
using WPFDevelopers.Samples.Helpers;

namespace WPFDevelopers.Samples.ExampleViews
{
    /// <summary>
    /// BubbleControlExample.xaml 的交互逻辑
    /// </summary>
    public partial class BubbleControlExample : UserControl
    {
        public BubbleControlExample()
        {
            InitializeComponent();
        }
        public ICommand WPFCommand => new RelayCommand(delegate
        {
            WPFDevelopers.Minimal.Controls.MessageBox.Show("点击了“WPF开发者”.", "提示");
        });
        public ICommand MAUICommand => new RelayCommand(delegate
        {
            WPFDevelopers.Minimal.Controls.MessageBox.Show("点击了“MAUI开发者”.", "提示");
        });
    }
}
