C# WPF TabControl用法指南(精品)

概述

TabControl是我们常用的翻页控件，但是wpf自带的 TabControl功能和样式比较单一，假如我的tab页面比较多，标题在有限的空间放不下，需要用左右箭头翻页，同时需要加一个筛选跳转的功能，这时候我们就需要使用Dev的控件DXTabControl..

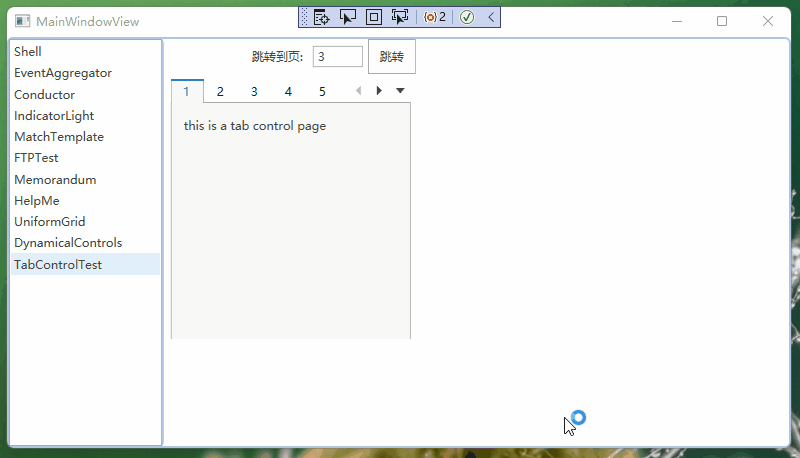

功能演示

代码实现

前台XAML:

<UserControl x:Class="Caliburn.Micro.Hello.TabControlView"        xmlns="http://schemas.microsoft.com/winfx/2006/xaml/presentation"        xmlns:x="http://schemas.microsoft.com/winfx/2006/xaml"        xmlns:d="http://schemas.microsoft.com/expression/blend/2008"        xmlns:mc="http://schemas.openxmlformats.org/markup-compatibility/2006"          xmlns:dx="http://schemas.devexpress.com/winfx/2008/xaml/core"          xmlns:dxlc="http://schemas.devexpress.com/winfx/2008/xaml/layoutcontrol"        xmlns:local="clr-namespace:Caliburn.Micro.Hello"        xmlns:cal="http://www.caliburnproject.org"        mc:Ignorable="d"   Height="450" Width="800" >    <Grid Height="300" Width="250" HorizontalAlignment="Left" VerticalAlignment="Top">        <Grid.RowDefinitions>            <RowDefinition Height="35"/>            <RowDefinition Height="Auto"/>        </Grid.RowDefinitions>        <StackPanel Orientation="Horizontal" HorizontalAlignment="Right">            <Label Content="跳转到页:" VerticalAlignment="Center" Margin="5"/>            <TextBox Text="{Binding PageIndex}" MinWidth="50"  VerticalAlignment="Center" Margin="5"/>            <Button Content="跳转" Name="Button_Click"/>        </StackPanel>        <dx:DXTabControl   Grid.Row="1"  SelectedIndex="{Binding SelectedIndex}"            ItemsSource="{Binding ParamItems}" Margin="5">            <!--cal:Message.Attach="[Event SelectionChanged]=[DXTabControl_SelectionChanged()]">-->            <dx:DXTabControl.ItemHeaderTemplate>                <DataTemplate>                    <StackPanel Orientation="Horizontal">                        <!--<Image Source="{Binding ImageLabel}"/>-->                        <dxlc:LayoutItem Label="{Binding Header}"/>                    </StackPanel>                </DataTemplate>            </dx:DXTabControl.ItemHeaderTemplate>            <dx:DXTabControl.ItemTemplate>                <DataTemplate>                    <ContentControl  cal:View.Model="{Binding SubView}" />                </DataTemplate>            </dx:DXTabControl.ItemTemplate>            <dx:DXTabControl.View>                <dx:TabControlScrollView AllowHideTabItems="False" AllowAnimation="True"                                          AllowKeyboardNavigation="True" AllowScrollOnMouseWheel="True"                                       ShowHeaderMenu="True"/>            </dx:DXTabControl.View>
        </dx:DXTabControl>        <!--<dxg:GridControl >            <dxg:GridControl.View>                <dxg:TableView AllowPaging="True"/>            </dxg:GridControl.View>        </dxg:GridControl>-->
    </Grid></UserControl>

这里的ShowHeaderMenu="True"可以放出筛选的按钮，点击下拉按钮，选择要跳转的页面就可以跳转过去；

如果想擦除页面，将AllowHideTabItems设置true即可

C# WPF TabControl用法指南(精品)

每个页面通过模板绑定了一个子页面

 <dx:DXTabControl.ItemTemplate>                <DataTemplate>                    <ContentControl  cal:View.Model="{Binding SubView}" />                </DataTemplate>            </dx:DXTabControl.ItemTemplate>

后台代码：

using PropertyChanged;using System.Collections.ObjectModel;
namespace Caliburn.Micro.Hello{    [AddINotifyPropertyChangedInterface]    public class TabControlViewModel : Screen, IViewModel    {        public ObservableCollection<ParamDTO> ParamItems { get; set; } = new ObservableCollection<ParamDTO>();        public int SelectedIndex { get; set; }        public int PageIndex { get; set; }        public TabControlViewModel()        {            DisplayName = "TabControlTest";            PageIndex = 3;
            ParamItems.Add(new ParamDTO() { Header = "1", SubView = new SubTabPageViewModel() });            ParamItems.Add(new ParamDTO() { Header = "2", SubView = new SubTabPageViewModel() });            ParamItems.Add(new ParamDTO() { Header = "3", SubView = new SubTabPageViewModel() });            ParamItems.Add(new ParamDTO() { Header = "4", SubView = new SubTabPageViewModel() });            ParamItems.Add(new ParamDTO() { Header = "5", SubView = new SubTabPageViewModel() });            ParamItems.Add(new ParamDTO() { Header = "6", SubView = new SubTabPageViewModel() });            ParamItems.Add(new ParamDTO() { Header = "7", SubView = new SubTabPageViewModel() });            ParamItems.Add(new ParamDTO() { Header = "8", SubView = new SubTabPageViewModel() });            ParamItems.Add(new ParamDTO() { Header = "9", SubView = new SubTabPageViewModel() });            ParamItems.Add(new ParamDTO() { Header = "10", SubView = new SubTabPageViewModel() });            ParamItems.Add(new ParamDTO() { Header = "11", SubView = new SubTabPageViewModel() });            ParamItems.Add(new ParamDTO() { Header = "12", SubView = new SubTabPageViewModel() });        }
        public void Button_Click()        {            SelectedIndex = PageIndex - 1;        }    }    public class ParamDTO    {        /// <summary>        /// 标题        /// </summary>        public string Header { get; set; }
        /// <summary>        /// SubView        /// </summary>        public SubTabPageViewModel SubView { get; set; }    }
}

这里ParamDTO是数据模型，SubView 就是我们的子页面

源码下载

百度网盘链接：https://pan.baidu.com/s/1JuD8PHUacDNIt7iCvxRB_w

提取码：6666

dev控件官网学习网址：https://docs.devexpress.com/WPF/DevExpress.Xpf.Core.DXTabControl
