.NET Core 分布式任务调度ScheduleMaster

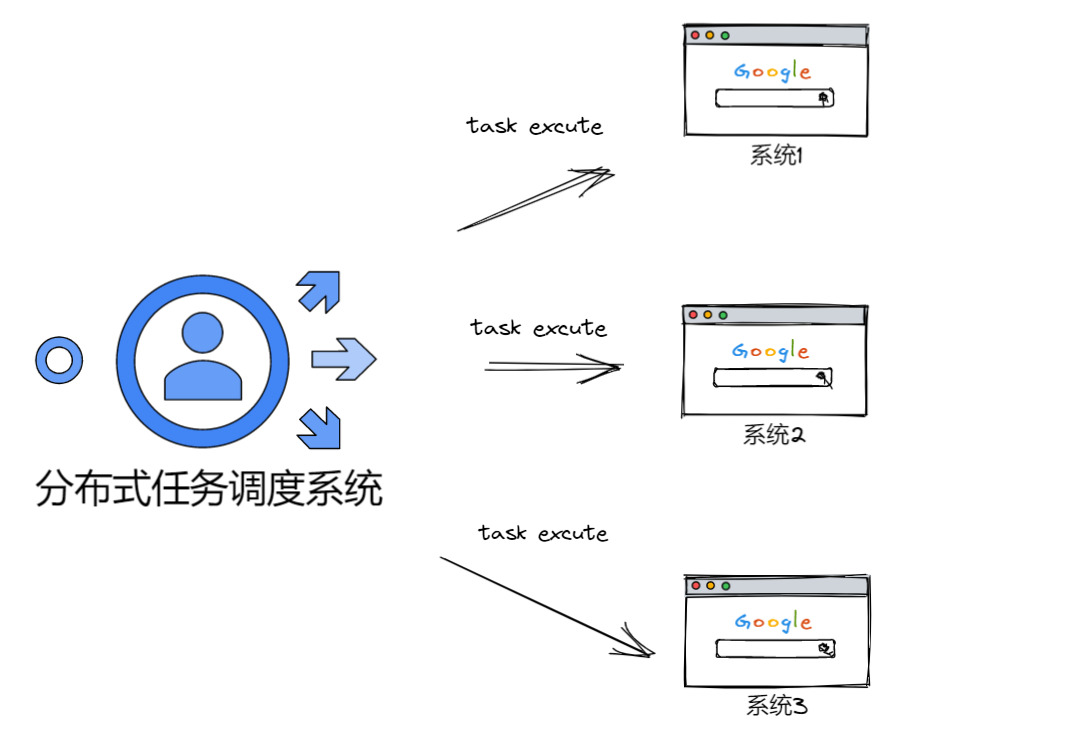

ScheduleMaster分布式任务调度系统,是国内的一位开发者写的。简称:集中任务调度系统,最简单的理解ScheduleMaster,就是对不同的系统里面的调度任务做统一管理的框架

例如我们现在有多个系统,每个系统针对自己处理不同的业务场景。衍生出自己的调度任务,想象一下,如果每个系统人为去维护,那随着调度任务越来越多,人是崩溃的吧,可见维护和技术成本是巨大的,这时我们需要选择分布式任务系统框架做统一的管理。.

.NET Core 分布式任务调度ScheduleMaster

当然有目前有很多相对优秀分布式任务系统框架,我们主要学习 ScheduleMaster

二、使用ScheduleMaster

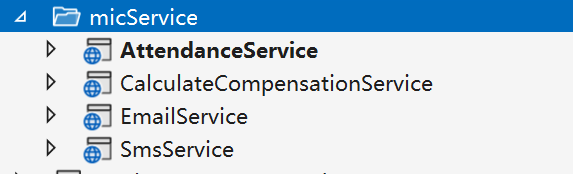

1、首先我们需要使用NET Core web Api创建几个模拟的微服务,分别为 考勤算薪邮件短信

.NET Core 分布式任务调度ScheduleMaster

2、下载开源的ScheduleMaster,并且使用ScheduleMaster调度我们的微服务接口

- sqlserver:"Persist Security Info = False; User ID =sa; Password =123456; Initial Catalog =schedule_master; Server =."
- postgresql:"Server=localhost;Port=5432;Database=schedule_master;User Id=postgres;Password=123456;Pooling=true;MaxPoolSize=20;"
- mysql:"Data Source=localhost;Database=schedule_master;User ID=root;Password=123456;pooling=true;CharSet=utf8mb4;port=3306;sslmode=none;TreatTinyAsBoolean=true"

修改Host的配置文件和支持的数据库,框架默认使用Mysql

修改Web的配置文件和支持的数据库,框架默认使用Mysql

.NET Core 分布式任务调度ScheduleMaster

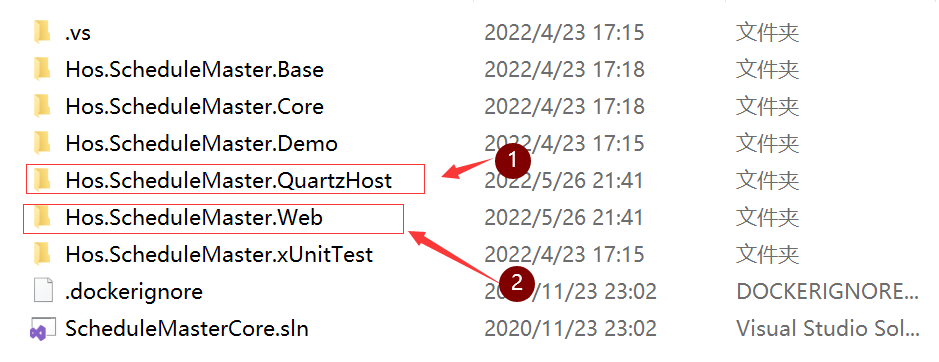

3、进入Hos.ScheduleMaster.Web项目的发布目录,dotnet Hos.ScheduleMaster.Web.dll启动项目 ,此时会生成数据库

登录账号:admin

密码:111111

4、进入Hos.ScheduleMaster.QuartzHost项目的发布目录,执行命令,启动项目

dotnet Hos.ScheduleMaster.QuartzHost.dll --urls http://*:30003
1、配置Http调度任务

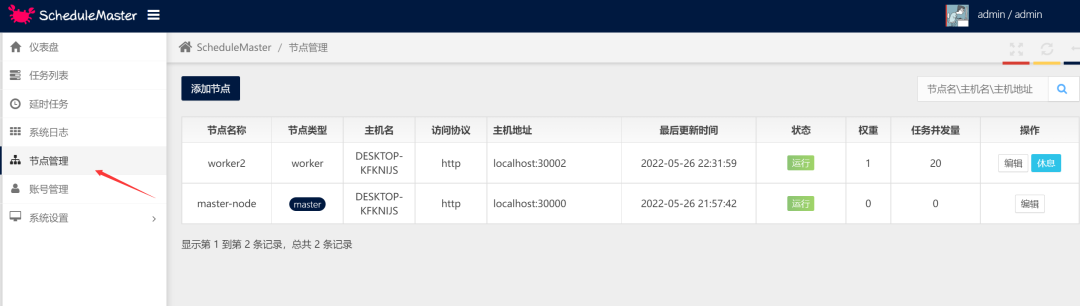

5、准备就绪后,使用后台查看节点管理,可以看到web主节点30000任务调度的接口30002已经在运行

.NET Core 分布式任务调度ScheduleMaster

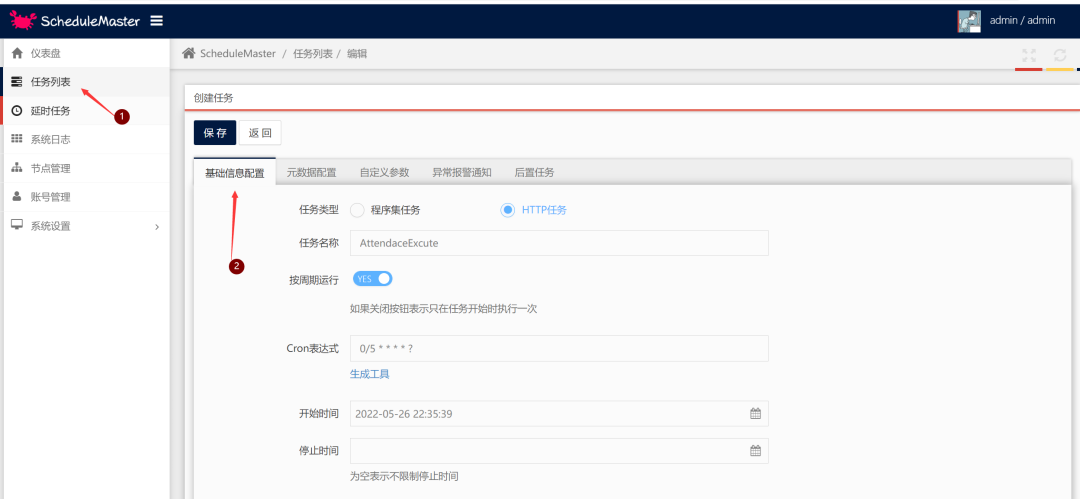

6、使用任务列表菜单,创建定时调度任务,配置基础信息元数据配置,然后点击保存就开始执行任务.NET Core 分布式任务调度ScheduleMaster

2、配置程序集调度任务

1、创建一个类库,安装ScheduleMaster库, 创建一个类继承TaskBase,实现抽象方法,然后编译程序集

namespace TaskExcuteService
{
    class AssemblyTask : TaskBase
    {
        public override void Run(TaskContext context)
        {
            context.WriteLog("程序集任务");
        }
    }
}

2、找到debug目录,去掉Base程序集,然后添加为压缩文件

3、在web界面找到任务配置,选择程序集进行基本配置,配置元数据,输入程序集名称,然后输入类,并将程序集上传,保存就可以运行了

三、使用Api接入任务

为了方便业务系统更好的接入调度系统,ScheduleMaster创建任务不仅可以在控制台中实现,系统也提供了WebAPI供业务系统使用代码接入,这种方式对延时任务来说尤其重要。

1、API Server 对接流程

  • 在控制台中创建好专用的API对接用户账号。
  • 使用对接账号的用户名设置为http header中的ms_auth_user值。
  • 使用经过哈希运算过的秘钥设置为http header中的ms_auth_secret值,计算规则:按{用户名}{hash(密码)}{用户名}的格式拼接得到字符串str,然后再对str做一次hash运算即得到最终秘钥,hash函数是小写的32位MD5算法。
  • 使用form格式发起http调用,如果非法用户会返回401-Unauthorized。
HttpClient client = new HttpClient();
client.DefaultRequestHeaders.Add("ms_auth_user", "admin");
client.DefaultRequestHeaders.Add("ms_auth_secret", SecurityHelper.MD5($"admin{SecurityHelper.MD5("111111")}}admin"));

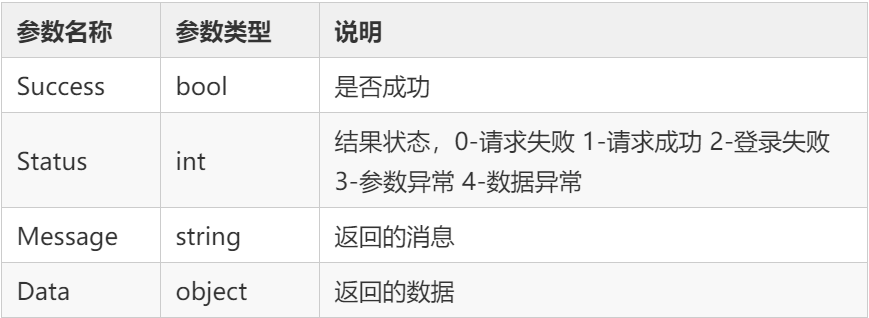

所有接口采用统一的返回格式,字段如下:

.NET Core 分布式任务调度ScheduleMaster

2、创建程序集任务

使用API创建任务的方式不支持上传程序包,所以在任务需要启动时要确保程序包已通过其他方式上传,否则会启动失败。

  • 接口地址:http://yourip:30000/api/task/create
  • 请求类型:POST
  • 参数格式:application/x-www-form-urlencoded
  • 返回结果:创建成功返回任务id
  • 参数列表:

.NET Core 分布式任务调度ScheduleMaster

ScheduleParam:

.NET Core 分布式任务调度ScheduleMaster

HttpClient client = new HttpClient();
List<KeyValuePair<string, string>> args = new List<KeyValuePair<string, string>>();
args.Add(new KeyValuePair<string, string>("MetaType", "1"));
args.Add(new KeyValuePair<string, string>("RunLoop", "true"));
args.Add(new KeyValuePair<string, string>("CronExpression", "33 0/8 * * * ?"));
args.Add(new KeyValuePair<string, string>("Remark", "By Xunit Tester Created"));
args.Add(new KeyValuePair<string, string>("StartDate", DateTime.Today.ToString("yyyy-MM-dd HH:mm:ss")));
args.Add(new KeyValuePair<string, string>("Title", "程序集接口测试任务"));
args.Add(new KeyValuePair<string, string>("AssemblyName", "Hos.ScheduleMaster.Demo"));
args.Add(new KeyValuePair<string, string>("ClassName", "Hos.ScheduleMaster.Demo.Simple"));
args.Add(new KeyValuePair<string, string>("CustomParamsJson", "[{\"ParamKey\":\"k1\",\"ParamValue\":\"1111\",\"ParamRemark\":\"r1\"},{\"ParamKey\":\"k2\",\"ParamValue\":\"2222\",\"ParamRemark\":\"r2\"}]"));
args.Add(new KeyValuePair<string, string>("Keepers", "1"));
args.Add(new KeyValuePair<string, string>("Keepers", "2"));
//args.Add(new KeyValuePair<string, string>("Nexts", ""));
//args.Add(new KeyValuePair<string, string>("Executors", ""));
HttpContent reqContent = new FormUrlEncodedContent(args);
var response = await client.PostAsync("http://localhost:30000/api/Task/Create", reqContent);
var content = await response.Content.ReadAsStringAsync();
Debug.WriteLine(content);
3、创建HTTP任务
  • 接口地址:http://yourip:30000/api/task/create
  • 请求类型:POST
  • 参数格式:application/x-www-form-urlencoded
  • 返回结果:创建成功返回任务id
  • 参数列表:

.NET Core 分布式任务调度ScheduleMaster

.NET Core 分布式任务调度ScheduleMaster

HttpClient client = new HttpClient();
List<KeyValuePair<string, string>> args = new List<KeyValuePair<string, string>>();
args.Add(new KeyValuePair<string, string>("MetaType", "2"));
args.Add(new KeyValuePair<string, string>("RunLoop", "true"));
args.Add(new KeyValuePair<string, string>("CronExpression", "22 0/8 * * * ?"));
args.Add(new KeyValuePair<string, string>("Remark", "By Xunit Tester Created"));
args.Add(new KeyValuePair<string, string>("StartDate", DateTime.Today.ToString("yyyy-MM-dd HH:mm:ss")));
args.Add(new KeyValuePair<string, string>("Title", "Http接口测试任务"));
args.Add(new KeyValuePair<string, string>("HttpRequestUrl", "http://localhost:56655/api/1.0/value/jsonpost"));
args.Add(new KeyValuePair<string, string>("HttpMethod", "POST"));
args.Add(new KeyValuePair<string, string>("HttpContentType", "application/json"));
args.Add(new KeyValuePair<string, string>("HttpHeaders", "[]"));
args.Add(new KeyValuePair<string, string>("HttpBody", "{ \"Posts\": [{ \"PostId\": 666, \"Title\": \"tester\", \"Content\":\"testtesttest\" }], \"BlogId\": 111, \"Url\":\"qweqrrttryrtyrtrtrt\" }"));
HttpContent reqContent = new FormUrlEncodedContent(args);
var response = await client.PostAsync("http://localhost:30000/api/Task/Create", reqContent);
var content = await response.Content.ReadAsStringAsync();
Debug.WriteLine(content);
4、创建延时任务
  • 接口地址:http://yourip:30000/api/delaytask/create
  • 请求类型:POST
  • 参数格式:application/x-www-form-urlencoded
  • 返回结果:创建成功返回任务id
  • 参数列表:

.NET Core 分布式任务调度ScheduleMaster

for (int i = 0; i < 5; i++)
{
    int rndNum = new Random().Next(20, 500);
    List<KeyValuePair<string, string>> args = new List<KeyValuePair<string, string>>();
    args.Add(new KeyValuePair<string, string>("SourceApp", "TestApp"));
    args.Add(new KeyValuePair<string, string>("Topic", "TestApp.Trade.TimeoutCancel"));
    args.Add(new KeyValuePair<string, string>("ContentKey", i.ToString()));
    args.Add(new KeyValuePair<string, string>("DelayTimeSpan", rndNum.ToString()));
    args.Add(new KeyValuePair<string, string>("DelayAbsoluteTime", DateTime.Now.AddSeconds(rndNum).ToString("yyyy-MM-dd HH:mm:ss")));
    args.Add(new KeyValuePair<string, string>("NotifyUrl", "http://localhost:56655/api/1.0/value/delaypost"));
    args.Add(new KeyValuePair<string, string>("NotifyDataType", "application/json"));
    args.Add(new KeyValuePair<string, string>("NotifyBody", "{ \"Posts\": [{ \"PostId\": 666, \"Title\": \"tester\", \"Content\":\"testtesttest\" }], \"BlogId\": 111, \"Url\":\"qweqrrttryrtyrtrtrt\" }"));
    HttpContent reqContent = new FormUrlEncodedContent(args);
    var response = await client.PostAsync("http://localhost:30000/api/DelayTask/Create", reqContent);
    var content = await response.Content.ReadAsStringAsync();
    Debug.WriteLine(content);
}

四、框架简单分析

1、全局设计

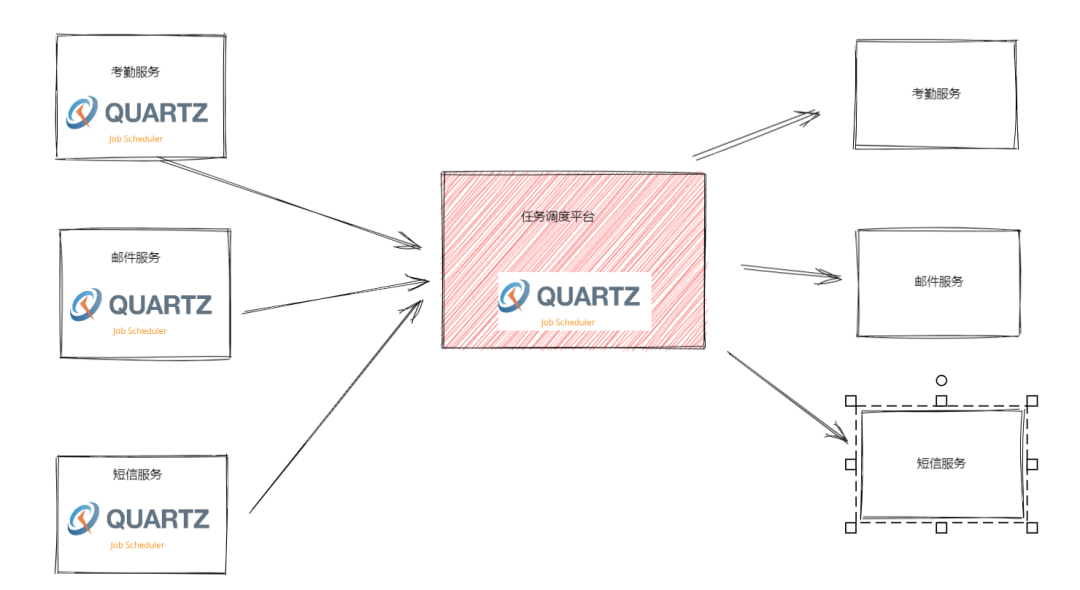

根据官网的设计图,以及操作的流程,简单总结一下任务全局流程为客户端—–>master——>work—–>执行任务。从大的架构方向的思想就是,将原有单个服务业务和任务调度混合的方式做一些改变,使业务调度分离,专门把任务调度部分剥离出来,作为一个独立的进程,来统一调用管理任务,而原有服务只做业务处理

.NET Core 分布式任务调度ScheduleMaster
2、Master和Work分析

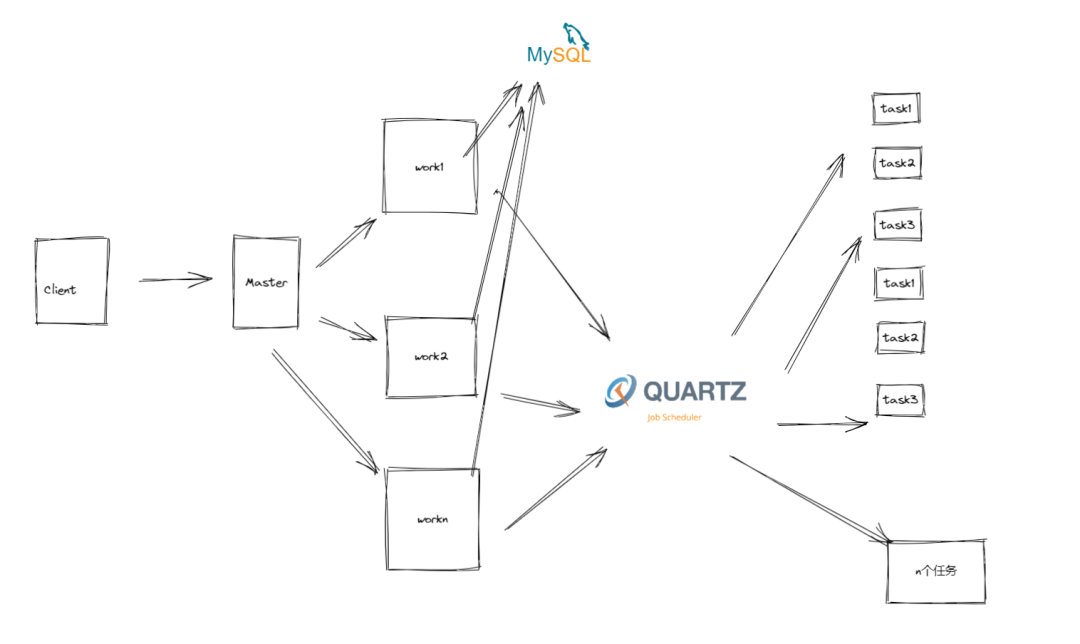

我们主要从主节点从节点数据表这几个方面来简单分析,整个业务的时序流程,从本质来看并不复杂masterWork之间的关系是相互配合的,可能乍一看下面整个图有点混乱,下面来解释一下,其实Master节点将任务添加数据中,然后work节点,去从对应的数据表中取出任务数据,然后根据任务对应的配置生成配置信息,调用Quartz执行任务,这就是我们整个框架中最核心的业务。

.NET Core 分布式任务调度ScheduleMaster

当然master和work除了主要承载了整个管理系统的UI可视化、后台业务操作任务执行之外,如果从细节以及实现方式来说主要做了以下事情:

Master

1、分配任务执行选择节点

2、对work节点进行健康检查,对任务进行故障转移

Work

1、取出任务配置信息

2、使用Quartz根据配置运行任务

3、使用反射调用程序集

4、使用httpclient调用http 接口

github:https://github.com/hey-hoho/ScheduleMasterCore
