WPF-19 IValueConverter接口

我们先来看看微软官方给出的定语：提供将自定义逻辑应用于绑定的方法，我们来看一下该接口的定义，Convert提供了将数据源到UI的格式化，ConvertBack表示反向..

namespace System.Windows.Data{    //    // Summary:    //     Provides a way to apply custom logic to a binding.    public interface IValueConverter    {        object Convert(object value, Type targetType, object parameter, CultureInfo culture);        object ConvertBack(object value, Type targetType, object parameter, CultureInfo culture);    }}

我们做一个简单的例子实现商品列表的绑定，定义一个DecimalConverter数据转化接口来实现一个价格的格式化，我们将价格格式化成两位小数：

using System;using System.Collections.Generic;using System.Globalization;using System.Windows;using System.Windows.Data;using System.Windows.Media;namespace Example_17{    /// <summary>    /// Interaction logic for MainWindow.xaml    /// </summary>    public partial class MainWindow : Window    {        public MainWindow()        {            InitializeComponent();            this.Loaded += MainWindow_Loaded;        }        private void MainWindow_Loaded(object sender, RoutedEventArgs e)        {            List<Order> orders = new List<Order>();            Order order = new Order();            order.Merchindise = "IPhone 14";            order.Quantity = 1;            order.Price = 8000;            orders.Add(order);            order = new Order();            order.Merchindise = "卫生纸";            order.Quantity = 10;            order.Price = 28.7895M;            orders.Add(order);            order = new Order();            order.Merchindise = "笔记本";            order.Quantity = 10;            order.Price = 87.7895M;            orders.Add(order);            this.lstOrder.ItemsSource = orders;        }    }    [ValueConversion(typeof(decimal), typeof(string))]    public class DecimalConverter : IValueConverter    {        public object? Convert(object value, Type targetType, object parameter, System.Globalization.CultureInfo culture)        {            if (value != null)                return ((decimal)value).ToString("f2");            else                return null;        }        public object? ConvertBack(object value, Type targetType, object parameter, System.Globalization.CultureInfo culture)        {            return null;        }    }    public class Order    {        public string Merchindise { get; set; } = null!;        public int Quantity { get; set; }        public decimal Price { get; set; }    }}

<Window x:Class="Example_17.MainWindow"        xmlns="http://schemas.microsoft.com/winfx/2006/xaml/presentation"        xmlns:x="http://schemas.microsoft.com/winfx/2006/xaml"        xmlns:d="http://schemas.microsoft.com/expression/blend/2008"        xmlns:mc="http://schemas.openxmlformats.org/markup-compatibility/2006"        xmlns:local="clr-namespace:Example_17"        mc:Ignorable="d" Title="MainWindow" Height="450" Width="800">    <Window.Resources>        <local:DecimalConverter x:Key="myDecimalConverter"></local:DecimalConverter>    </Window.Resources>    <StackPanel x:Uid="staOrder">        <ListView x:Uid="lstOrder" IsSynchronizedWithCurrentItem="True" ScrollViewer.CanContentScroll="True" x:Name="lstOrder" AllowDrop="True" BorderThickness="0,0,0,1" Focusable="False">            <ListView.View>                <GridView x:Uid="GridView_1">                    <GridViewColumn x:Name="colMerchindise" x:Uid="GridViewColumn_1" Header="商品名称" Width="250">                        <GridViewColumn.CellTemplate>                            <DataTemplate>                                <Border Width="138" Height="Auto">                                    <Grid x:Uid="Grid_2" Height="Auto" Width="Auto">                                        <TextBlock x:Uid="TextBlock_2" Margin="0,0,0,0" HorizontalAlignment="Left"  VerticalAlignment="Stretch" Text="{Binding Path=Merchindise}" FontFamily="Arial" FontWeight="Bold" FontSize="15" TextWrapping="NoWrap" TextTrimming="WordEllipsis" />                                    </Grid>                                </Border>                            </DataTemplate>                        </GridViewColumn.CellTemplate>                    </GridViewColumn>                    <GridViewColumn x:Name="colQuantity" x:Uid="GridViewColumn_2" Header="数量" Width="170" >                        <GridViewColumn.CellTemplate>                            <DataTemplate>                                <Border Width="56" Height="Auto">                                    <Grid x:Uid="Grid_3" Height="Auto" Width="Auto">                                        <TextBlock x:Uid="TextBlock_3" Margin="0,0,0,0" Text="{Binding Path=Quantity}" HorizontalAlignment="Right" VerticalAlignment="Center"  FontFamily="Arial" FontWeight="Bold" FontSize="15" Background="{x:Null}" TextTrimming="WordEllipsis" />                                    </Grid>                                </Border>                            </DataTemplate>                        </GridViewColumn.CellTemplate>                    </GridViewColumn>                    <GridViewColumn x:Name="colPrice" x:Uid="GridViewColumn_3" Header="价格" Width="170">                        <GridViewColumn.CellTemplate>                            <DataTemplate>                                <Grid x:Uid="Grid_4" Height="Auto" Width="Auto">                                    <TextBlock x:Uid="TextBlock_4" HorizontalAlignment="Right" VerticalAlignment="Center"  Margin="0,0,0,0" FontFamily="Arial"                                                    FontWeight="Bold" FontSize="15" TextTrimming="WordEllipsis" FontStretch="Normal" >                                        <TextBlock.Text>                                            <Binding Path="Price" Converter="{StaticResource myDecimalConverter}"/>                                        </TextBlock.Text>                                    </TextBlock>                                </Grid>                            </DataTemplate>                        </GridViewColumn.CellTemplate>                    </GridViewColumn>                </GridView>            </ListView.View>        </ListView>    </StackPanel></Window>

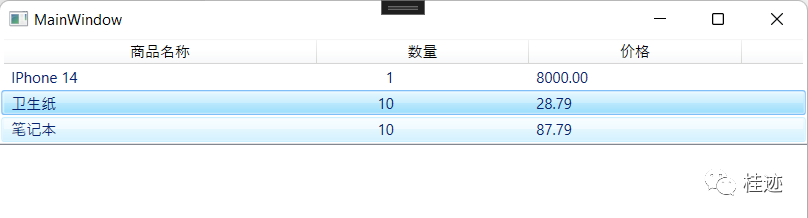

运行效果如下，我们可以看到我们的价格已经被格式化：

我们如果想将数量等于10的背景颜色设置为绿色，又该怎么做的，同样的我们定义一个ColorConverter转换器：

    [ValueConversion(typeof(int), typeof(SolidColorBrush))]    public class ColorConverter : IValueConverter    {        public object? Convert(object value, Type targetType, object parameter, CultureInfo culture)        {            if ((int)value == 10)                return new SolidColorBrush(Colors.Green); ;            return null;        }        public object? ConvertBack(object value, Type targetType, object parameter, CultureInfo culture)        {            return null;        }    }

同样我们在XAML中引用一下该对象：

<local:ColorConverter x:Key="myColorConverter"></local:ColorConverter>

在ListView中添加如下样式：

<ListView.ItemContainerStyle>    <Style x:Uid="Style_2" TargetType="{x:Type ListViewItem}">         <Setter Property="Background" Value="{Binding Path=Quantity, Converter={StaticResource myColorConverter}}"></Setter>    </Style></ListView.ItemContainerStyle>

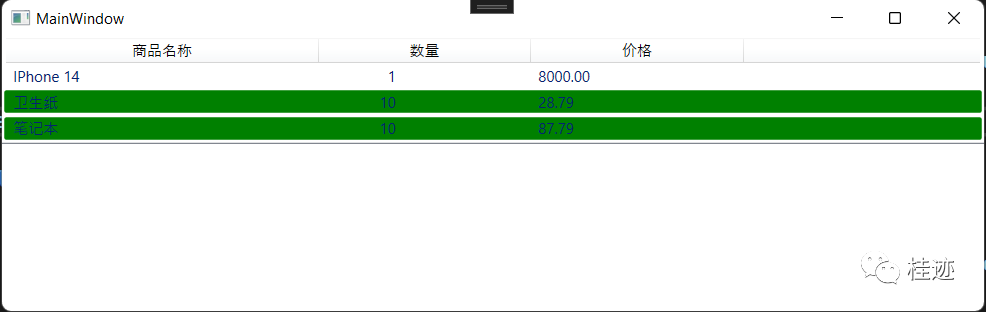

运行效果如下：

WPF-19 IValueConverter接口

从上面例子可以看出我们可以利用IValueConverter接口在数据源和UI之间做一些数据转换，另外微软还提供了一个IMultiValueConverter接口支持多个值转换，我们这里就不说了，感兴趣的小朋友可以研究一下。
