WinForm调用摄像头扫码识别二维码

前言

因公司业务需求,需要在Windows系统下调用摄像头识别二维码需求,就有了这个功能。根据网上网友提供的一些资料,自己整合应用到项目中,效果还不错(就是感觉像素不是太好)。现在将调用摄像头+识别二维码这两个功能单独出来写到这里,供大家讨论和参考。

有什么不足或者问题大家可以提出来,共同改进共同进步。.

一、创建项目解决方案

1、创建一个空的Winform项目解决方案,我起名叫他:ScanQRCode

2、将Form1作为主窗体,设置相关属性:

  • StartPosition:CenterScreen (窗体居中)

  • 添加一个居中标题

private void LoadTitleCenterData()
{
   string titleMsg ="二维码识别主界面";
   Graphics g = this.CreateGraphics();
   Double startingPoint = (this.Width / 2) - (g.MeasureString(titleMsg, this.Font).Width / 2);
   Double widthOfASpace = g.MeasureString(" ", this.Font).Width;
   String tmp = " ";
   Double tmpWidth = 0;
   while ((tmpWidth + widthOfASpace) < startingPoint)
   {
       tmp += " ";
       tmpWidth += widthOfASpace;
   }
   this.Text = tmp + titleMsg;
}



  • 最大最小化禁用

public Form1()
{
   this.MinimizeBox = false;
   this.MaximizeBox = false;
   InitializeComponent();
   LoadTitleCenterData();
}

Form1中添加一个TableLayoutPanel,三行三列,比例按照百分比:10%,80%,10%。

在TableLayoutPanel的80%中再添加一个TableLayoutPanel,还是行比例:20%,80%这样(二八定律)。

在TableLayoutPanel中添加Panel,在其中手动在添加几个按钮和label。

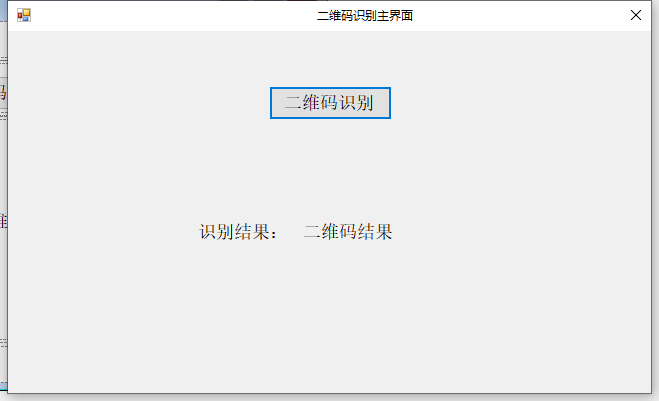

最终界面这样(能看就行):

WinForm调用摄像头扫码识别二维码

二、添加一个二维码识别界面CameraQR

使用Nuget添加引用,搜索AForge,将如下程序包引入:

WinForm调用摄像头扫码识别二维码

添加一个识别二维码的窗体,命名名称为:CameraQR

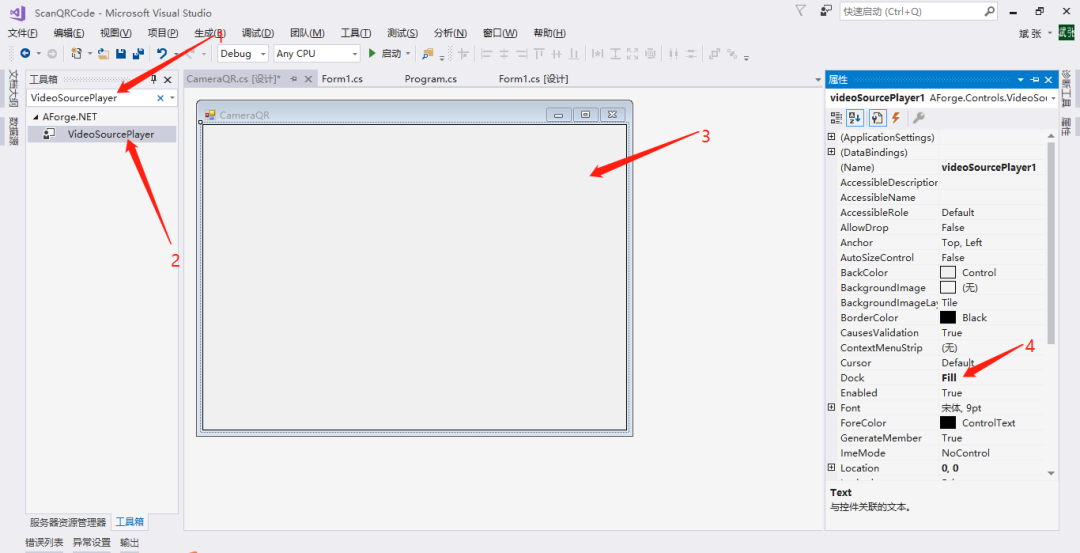

将VideoSourcePlayer添加到窗体中,Fill显示:

WinForm调用摄像头扫码识别二维码

窗体中定义几个私有变量:

private AForge.Video.DirectShow.FilterInfoCollection _videoDevices;//摄像设备
System.Timers.Timer timer;//定时器
CameraHelper _cameraHelper = new CameraHelper();//视屏设备操作类

窗体Load事件中获取拍照设备列表,并将第一个设备作为摄像设备(如有前后两个或多个摄像头,自己去改一下代码,设置成可以选择的,在CameraHelper中的CreateFilterInfoCollection()中):

private void CameraQR_Load(object sender, EventArgs e)
{
    // 获取视频输入设备
    _videoDevices = _cameraHelper.CreateFilterInfoCollection();//获取拍照设备列表
    if (_videoDevices.Count == 0)
    {
        MessageBox.Show("无设备");
        this.Dispose();
        this.Close();
        return;
    }
    resultStr = "";//二维码识别字符串清空
    _cameraHelper.ConnectDevice(videoSourcePlayer1);//连接打开设备
}

组件初始化完成之后,添加一个定时任务,用来阶段性识别摄像设备中的图片资源,我写的是每200毫秒去识别一次,如果图片中有二维码,就识别二维码;识别成功之后,关闭窗体,将识别结果返回给上一个界面,此处需要一个有识别二维码程序包。

使用Nuget添加引用,搜索ZXing,将如下程序包引入:

WinForm调用摄像头扫码识别二维码

代码如下(核心代码基本就这些):

public CameraQR()
{
   this.MinimizeBox = false;
   this.MaximizeBox = false;
   InitializeComponent();
   LoadTitleCenterData();
   CheckForIllegalCrossThreadCalls = false;//多线程中访问窗体控件资源不会异常
   AddTimer();//定时识别图片
}
private void AddTimer()
{
  timer = new System.Timers.Timer();
  timer.Enabled = true;
  timer.Interval = 200;
  timer.Start();
  timer.Elapsed += new ElapsedEventHandler(PicToQRCode);
}
private void PicToQRCode(object sender, ElapsedEventArgs e)
{
    if (_cameraHelper.img == null)
        return;
    BinaryBitmap bitmap = null;
    try
    {
        MemoryStream ms = new MemoryStream();
        _cameraHelper.img.Save(ms, System.Drawing.Imaging.ImageFormat.Bmp);
        byte[] bt = ms.GetBuffer();
        ms.Close();
        LuminanceSource source = new RGBLuminanceSource(bt, _cameraHelper.img.Width, _cameraHelper.img.Height);
        bitmap = new BinaryBitmap(new ZXing.Common.HybridBinarizer(source));
    }
    catch (Exception ex)
    {
        return;
    }
    Result result=null;
    try
    {
        //开始解码
        result = new MultiFormatReader().decode(bitmap);
    }
    catch (ReaderException ex)
    {
        resultStr = ex.ToString();
    }
    if (result != null)
    {
        resultStr = result.Text;
        this.DialogResult = DialogResult.OK;
        this.Close();
    }
}

窗体关闭时,记得释放定时器 关闭摄像头(不然异常满天飞):

private void CameraQR_FormClosing(object sender, FormClosingEventArgs e)
{
      if (timer != null)
      {
          timer.Dispose();
      }
       _cameraHelper.CloseDevice();
 }

CameraHelper类:

public class CameraHelper
{
    public FilterInfoCollection _videoDevices;//本机摄像硬件设备列表
    public VideoSourcePlayer _videoSourcePlayer;//视频画布
    public Bitmap img = null;//全局变量,保存每一次捕获的图像
    public System.Drawing.Image CaptureImage(VideoSourcePlayer sourcePlayer = null)
    {
        if (sourcePlayer == null || sourcePlayer.VideoSource == null)
        {
            if (_videoSourcePlayer == null)
                return null;
            else
            {
                sourcePlayer = _videoSourcePlayer;
            }
        }
        try
        {
            if (sourcePlayer.IsRunning)
            {
                System.Drawing.Image bitmap = sourcePlayer.GetCurrentVideoFrame();
                return bitmap;
            }
            return null;
        }
        catch (Exception ex)
        {
           return null;
        }
    }
    public FilterInfoCollection CreateFilterInfoCollection()
    {
        if (_videoDevices != null)
            return _videoDevices;
        _videoDevices = new FilterInfoCollection(FilterCategory.VideoInputDevice);
        return _videoDevices;
    }
    public VideoCaptureDevice ConnectDevice(VideoSourcePlayer videoSourcePlayer, FilterInfo filterInfo = null)
    {
        VideoCaptureDevice videoSource = new VideoCaptureDevice();
        if (filterInfo == null)
        {
            videoSource = new VideoCaptureDevice(_videoDevices[_videoDevices.Count - 1].MonikerString);
        }
        else
        {
            videoSource = new VideoCaptureDevice(filterInfo.MonikerString);
        }
        videoSource.NewFrame += new NewFrameEventHandler(video_NewFrame);
        videoSourcePlayer.VideoSource = videoSource;
        videoSourcePlayer.Start();
        _videoSourcePlayer = videoSourcePlayer;
        return videoSource;
    }
    private void video_NewFrame(object sender, NewFrameEventArgs eventArgs)
    {
        img = (Bitmap)eventArgs.Frame.Clone();
    }
    public void CloseDevice(VideoSourcePlayer videoSourcePlayer = null)
    {
        if (videoSourcePlayer == null)
        {
            if (_videoSourcePlayer == null)
                return;
            _videoSourcePlayer.SignalToStop();
        }
        else
        {
            videoSourcePlayer.SignalToStop();
        }
    }
}

我用的测试二维码是:

WinForm调用摄像头扫码识别二维码

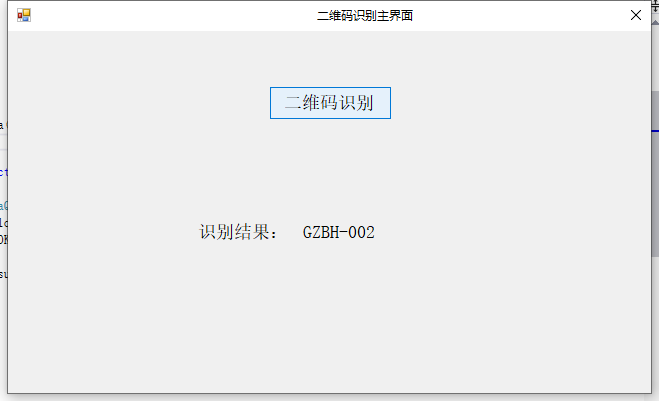

最终的别结果为:

WinForm调用摄像头扫码识别二维码

代码:https://github.com/Binzm/ScanQRCode.git
