一、.NET 6 中使用swagger
/// <summary>
/// 订单接口
/// </summary>
[ApiController]
[Route("[controller]/[action]")]
public class OrderController : Controller
{
/// <summary>
/// 获取订单
/// </summary>
/// <returns></returns>
[HttpGet]
public string GetOrder()
{
return "ok";
}
/// <summary>
/// 创建订单
/// </summary>
/// <param name="request">订单信息</param>
/// <returns></returns>
[HttpPost]
public string CreateOrder([FromBody] OrderRequest request)
{
return "ok";
}
/// <summary>
/// 删除订单
/// </summary>
/// <returns></returns>
[HttpDelete]
public string DeleteOrder()
{
return "ok";
}
/// <summary>
/// 更新订单
/// </summary>
/// <returns></returns>
[HttpPut]
public string UpdateOrder()
{
return "ok";
}
}
/// <summary>
/// 订单请求
/// </summary>
public class OrderRequest
{
/// <summary>
/// 订单名称
/// </summary>
public string orderName { get; set; }
/// <summary>
/// 订单编号
/// </summary>
public string orderNo { get; set; }
/// <summary>
/// 价格
/// </summary>
public decimal price { get; set; }
}
2、Nuget包安装swagger需要dll
Swashbuckle.AspNetCore
3、Program.cs中加入swagger
using Microsoft.OpenApi.Models;
using System.Reflection;
var builder = WebApplication.CreateBuilder(args);
// Add services to the container.
builder.Services.AddControllersWithViews();
builder.Services.AddSwaggerGen(options =>
{
options.SwaggerDoc("v1", new OpenApiInfo
{
Version = "v1",
Title = "API标题",
Description = "API描述"
});
});
var app = builder.Build();
if (app.Environment.IsDevelopment())
{
app.UseSwagger();
app.UseSwaggerUI();
}
app.UseHttpsRedirection();
app.UseStaticFiles();
app.UseRouting();
app.UseAuthorization();
app.MapControllerRoute(
name: "default",
pattern: "{controller=Home}/{action=Index}/{id?}");
app.Run();

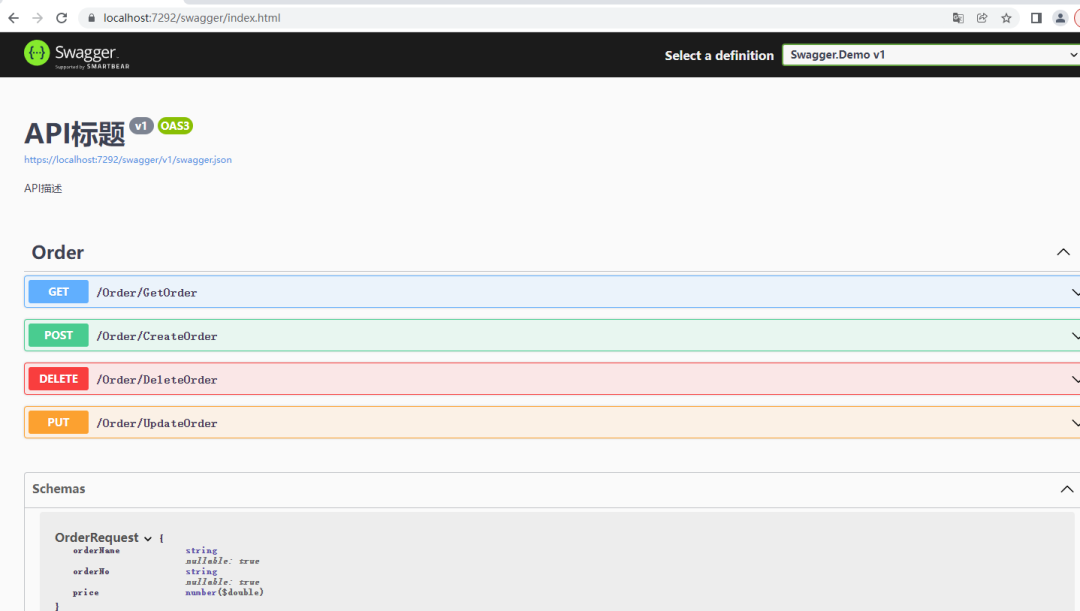

这时候访问 http://localhost:xxx/swagger/index.html 已经能访问和显示接口了，但是少了注释
4、生成xml文件，接口文档生成注释需要程序集的xml文件

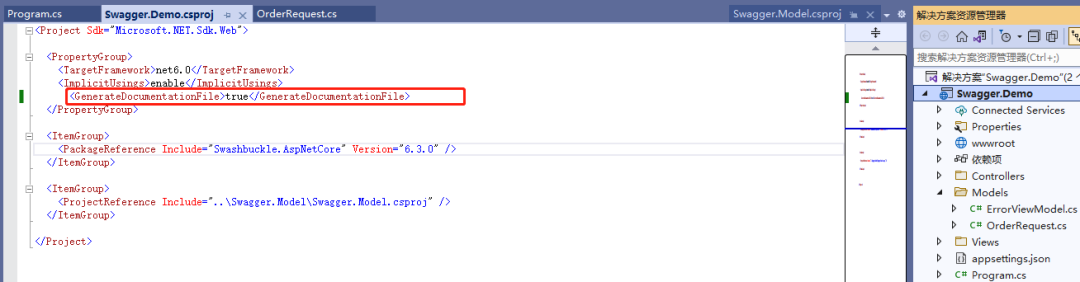

打开项目的.csproj文件加上标识让程序生成这个程序集的文档
<GenerateDocumentationFile>true</GenerateDocumentationFile>
5、在Program.cs处加上加载这个xml文件
完成的 Program.cs文件
using Microsoft.OpenApi.Models;
using System.Reflection;
var builder = WebApplication.CreateBuilder(args);
// Add services to the container.
builder.Services.AddControllersWithViews();
builder.Services.AddSwaggerGen(options =>
{
options.SwaggerDoc("v1", new OpenApiInfo
{
Version = "v1",
Title = "API标题",
Description = "API描述"
});
var xmlFilename = $"{Assembly.GetExecutingAssembly().GetName().Name}.xml";
options.IncludeXmlComments(Path.Combine(AppContext.BaseDirectory, xmlFilename));
});
var app = builder.Build();
if (app.Environment.IsDevelopment())
{
app.UseSwagger();
app.UseSwaggerUI();
}
app.UseHttpsRedirection();
app.UseStaticFiles();
app.UseRouting();
app.UseAuthorization();
app.MapControllerRoute(
name: "default",
pattern: "{controller=Home}/{action=Index}/{id?}");
app.Run();

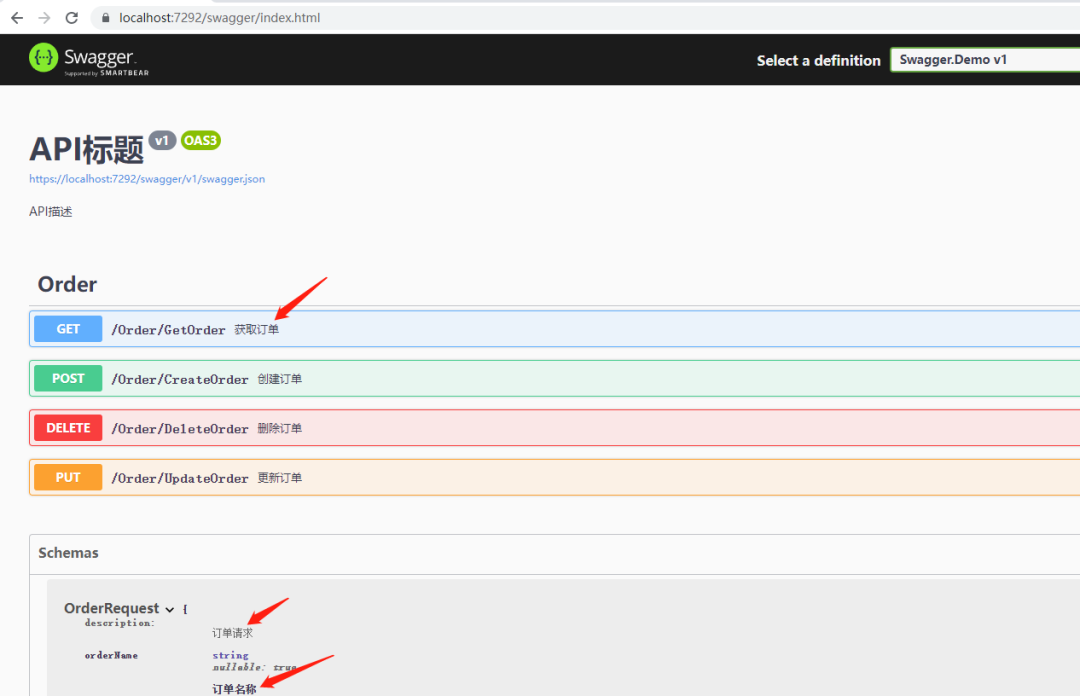

这时再运行就能看到注释了
注意：如果参数的Model在其它类库，那么所引用的类库的.csproj文件也要加上上面的标识，并在Program.cs引入程序集的xml文件才能展示参数的注释。
二、.NET 6 中使用swagger版本控制
1、增加文件 ApiVerionInfo.cs记录版本号
/// <summary>
/// api版本号
/// </summary>
public class ApiVersionInfo
{
public static string V1;
public static string V2;
public static string V3;
public static string V4;
public static string V5;
}

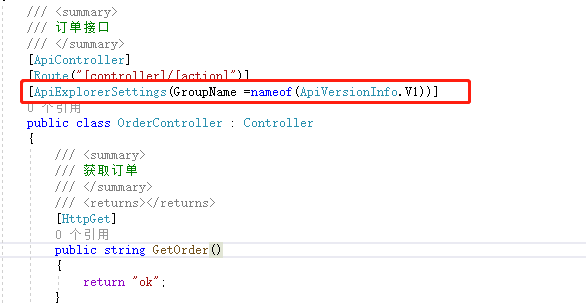

2、在api控制器上增加版本
[ApiExplorerSettings(GroupName =nameof(ApiVersionInfo.V1))]
3、再建一个控制器，写v2版本的接口
/// <summary>
/// 订单接口
/// </summary>
[ApiController]
[Route("[controller]/[action]")]
[ApiExplorerSettings(GroupName = nameof(ApiVersionInfo.V2))]
public class OrderV2Controller : Controller
{
/// <summary>
/// 获取订单
/// </summary>
/// <returns></returns>
[HttpGet]
public string GetOrder()
{
return "ok";
}
/// <summary>
/// 创建订单
/// </summary>
/// <param name="request">订单信息</param>
/// <returns></returns>
[HttpPost]
public string CreateOrder([FromBody] OrderRequest request)
{
return "ok";
}
}
4、Program.cs中swagger的引入
完整配置:
using Microsoft.OpenApi.Models;
using Swagger.Demo;
using System.Reflection;
var builder = WebApplication.CreateBuilder(args);
// Add services to the container.
builder.Services.AddControllersWithViews();
builder.Services.AddSwaggerGen(options =>
{
foreach (FieldInfo fileld in typeof(ApiVersionInfo).GetFields())
{
options.SwaggerDoc(fileld.Name, new OpenApiInfo
{
Version = fileld.Name,
Title = "API标题",
Description = $"API描述,{fileld.Name}版本"
});
}
var xmlFilename = $"{Assembly.GetExecutingAssembly().GetName().Name}.xml";
options.IncludeXmlComments(Path.Combine(AppContext.BaseDirectory, xmlFilename));
});
var app = builder.Build();
if (app.Environment.IsDevelopment())
{
app.UseSwagger();
app.UseSwaggerUI(c =>
{
foreach (FieldInfo field in typeof(ApiVersionInfo).GetFields())
{
c.SwaggerEndpoint($"/swagger/{field.Name}/swagger.json", $"{field.Name}");
}
});
}
app.UseHttpsRedirection();
app.UseStaticFiles();
app.UseRouting();
app.UseAuthorization();
app.MapControllerRoute(
name: "default",
pattern: "{controller=Home}/{action=Index}/{id?}");
app.Run();

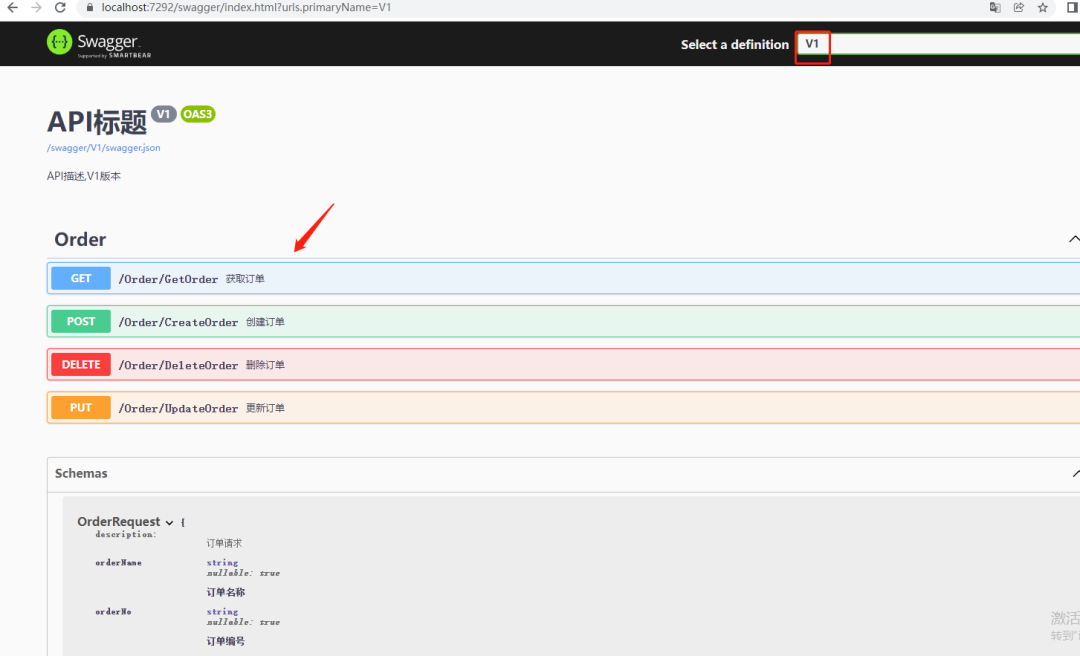

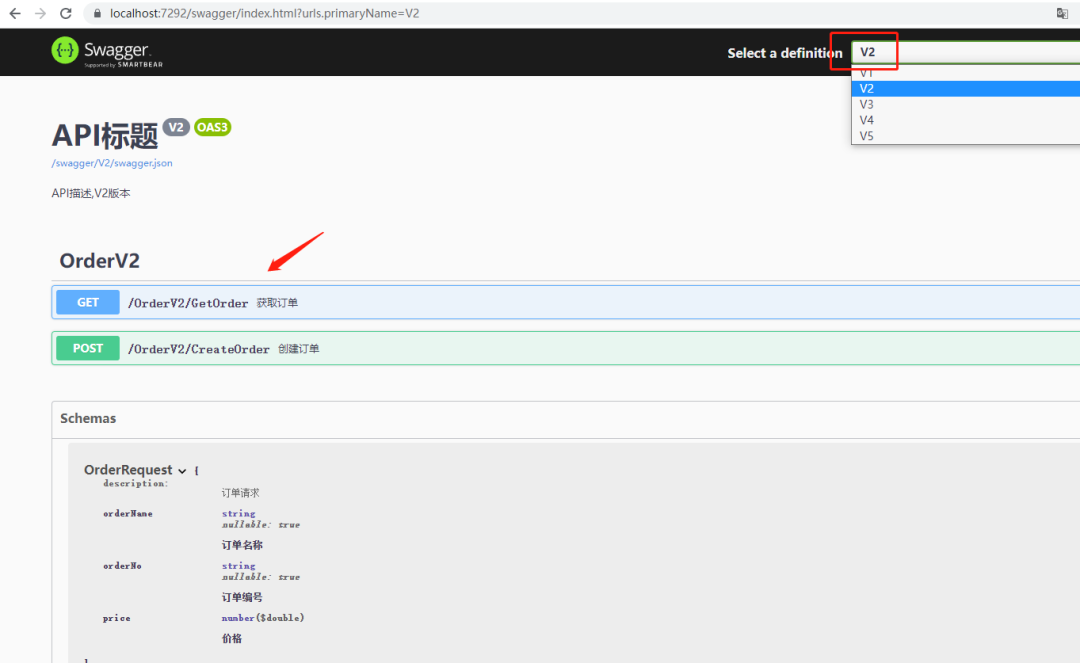

5、配置完成，查看效果
到这里版本控制就完成了！
