一、环境要求
.NET 6.0 + Visual Studio 2019 以上
官方文档
https://learn.microsoft.com/zh-cn/aspnet/core/tutorials/grpc/grpc-start
Net Framework 版本：https://www.cnblogs.com/dennisdong/p/17119944.html.
二、搭建帮助类

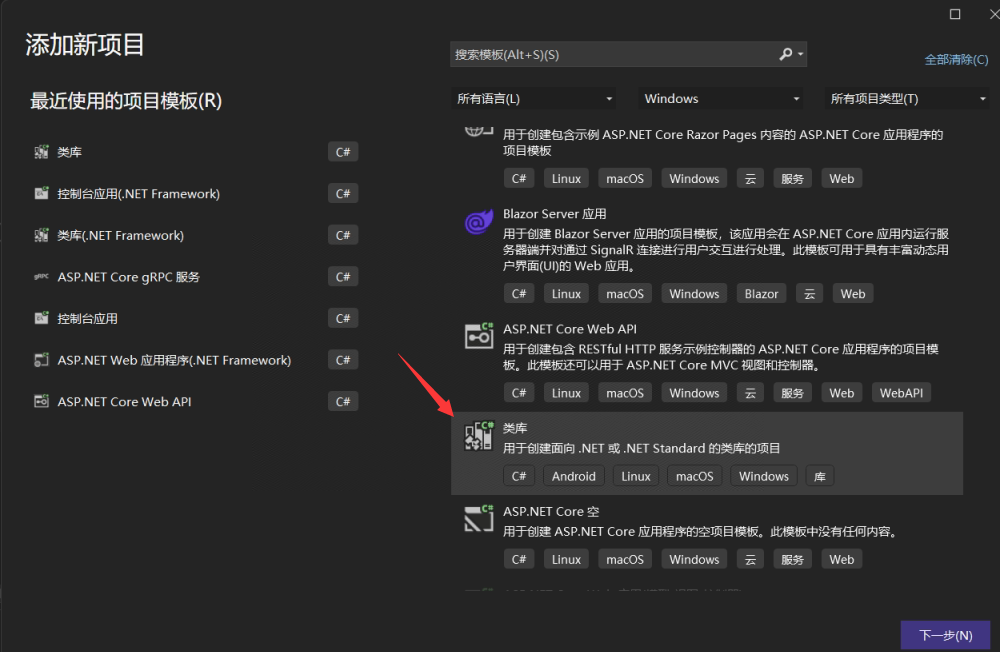

2.1、新建类库
GrpcCommon
2.2、新建文件夹
文件夹：Certs,Helpers,Models

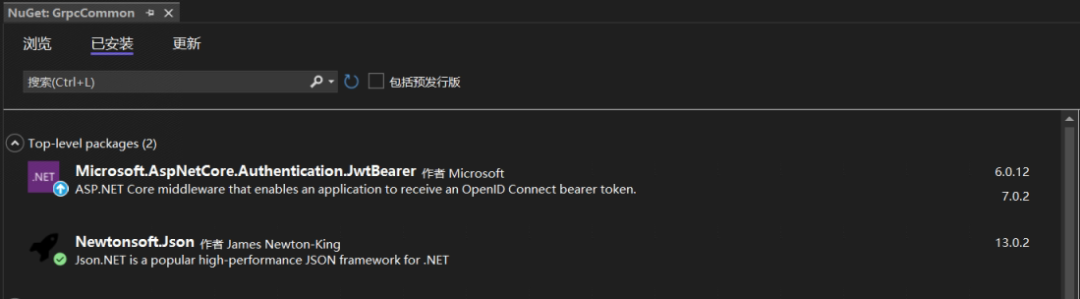

2.3、安装依赖
NuGet依赖包Microsoft.AspNetCore.Authentication.JwtBeare 6.0.12,Newtonsoft.Json 13.0.2
2.4、新建项目文件
在Models下新建JwtToken.cs和UserDetails.cs
namespace GrpcCommon.Models
{
public class JwtToken
{
public string? UserId { get; set; }
public string? Exp { get; set; }
public string? Iss { get; set; }
}
}
namespace GrpcCommon.Models
{
public class UserDetails
{
public string? UserName { get; set; }
public int Age { get; set; }
public IEnumerable<string>? Friends { get; set; }
}
}
在Helpers下新建JwtHelper.cs
using System.IdentityModel.Tokens.Jwt;
using System.Security.Claims;
using System.Text;
using Microsoft.IdentityModel.Tokens;
using Newtonsoft.Json;
namespace GrpcCommon.Helpers
{
public class JwtHelper
{
/// <summary>
/// 颁发JWT Token
/// </summary>
/// <param name="securityKey"></param>
/// <param name="accountName"></param>
/// <returns></returns>
public static string GenerateJwt(string securityKey, string accountName)
{
var claims = new List<Claim>
{
new Claim("userid", accountName)
};
//秘钥 (SymmetricSecurityKey 对安全性的要求，密钥的长度太短会报出异常)
var key = new SymmetricSecurityKey(Encoding.UTF8.GetBytes(securityKey));
var credentials = new SigningCredentials(key, SecurityAlgorithms.HmacSha256);
var jwt = new JwtSecurityToken(
issuer: "https://ifcloud.com/zerotrust",
claims: claims,
expires: DateTime.Now.AddMinutes(1),
signingCredentials: credentials);
var jwtHandler = new JwtSecurityTokenHandler();
var encodedJwt = jwtHandler.WriteToken(jwt);
return encodedJwt;
}
/// <summary>
/// 解析
/// </summary>
/// <param name="token"></param>
/// <param name="securityKey"></param>
/// <returns></returns>
public static Tuple<bool, string> ValidateJwt(string token, string securityKey)
{
try
{
//对称秘钥
SecurityKey key = new SymmetricSecurityKey(Encoding.ASCII.GetBytes(securityKey));
//校验token
var validateParameter = new TokenValidationParameters()
{
ValidateAudience = false,
ValidIssuer = "https://ifcloud.com/zerotrust",
ValidateIssuerSigningKey = true,
IssuerSigningKey = key,
ClockSkew = TimeSpan.Zero//校验过期时间必须加此属性
};
var jwtToken = new JwtSecurityTokenHandler().ValidateToken(token, validateParameter, out _);
var claimDic = new Dictionary<string, string>();
foreach (var claim in jwtToken.Claims)
{
claimDic.TryAdd(claim.Type, claim.Value);
}
var payLoad = JsonConvert.SerializeObject(claimDic);
return new Tuple<bool, string>(true, payLoad);
}
catch (SecurityTokenExpiredException expired)
{
//token过期
return new Tuple<bool, string>(false, expired.Message);
}
catch (SecurityTokenNoExpirationException noExpiration)
{
//token未设置过期时间
return new Tuple<bool, string>(false, noExpiration.Message);
}
catch (SecurityTokenException tokenEx)
{
//表示token错误
return new Tuple<bool, string>(false, tokenEx.Message);
}
catch (Exception err)
{
// 解析出错
Console.WriteLine(err.StackTrace);
return new Tuple<bool, string>(false, err.Message);
}
}
}
}
三、生成SSL证书(可跳过)
3.1、下载安装openssl
参考文章：https://www.cnblogs.com/dingshaohua/p/12271280.html
3.2、生成证书密钥
在GrpcCommon的Certs下右键打开命令窗口输入openssl
genrsa -out key.pem 2048
3.3、生成pem证书
req -new -x509 -key key.pem -out cert.pem -days 3650
3.4、pem证书转换成pfx证书
pkcs12 -export -out cert.pfx -inkey key.pem -in cert.pem
四、搭建grpc服务器

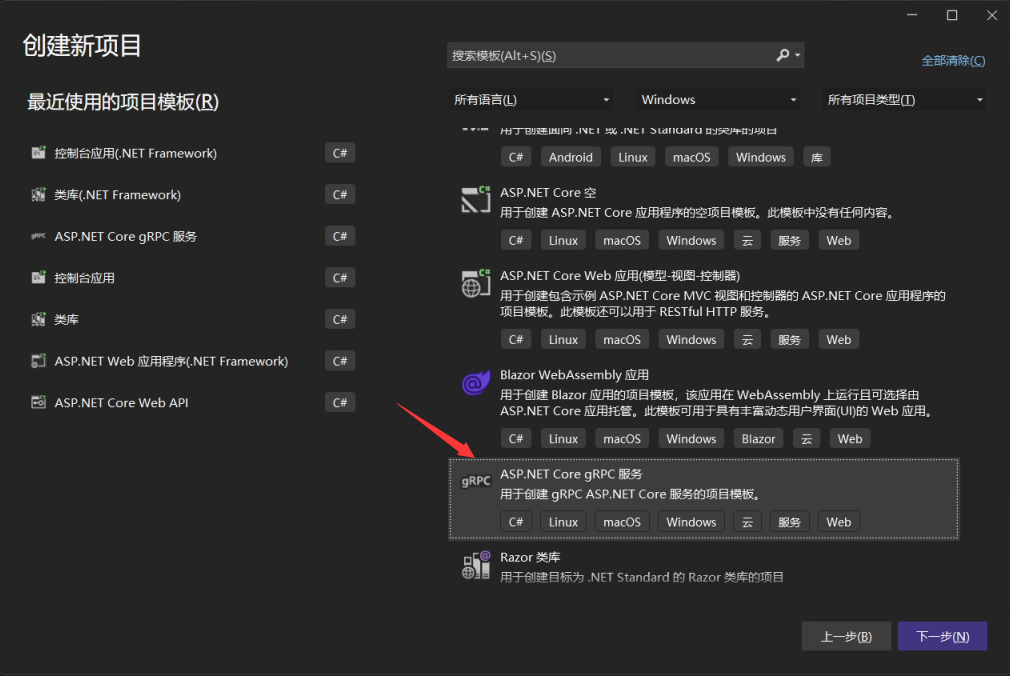

4.1、新建grpc服务
4.2、新建文件夹
文件夹：Protos及其子文件夹Google
4.3、下载google protobuf文件
https://github.com/protocolbuffers/protobuf/releases/download/v21.12/protoc-21.12-win64.zip
其他版本参考：https://github.com/protocolbuffers/protobuf/releases
下载不了的文章末尾有源码地址

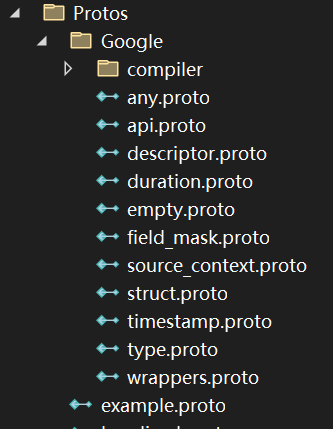

下载解压后将\include\google\protobuf中的所有文件放在Protos下的Google中
4.4、新建proto文件
在Protos下新建文件example.proto
syntax = "proto3";
package example;
import "Protos/Google/struct.proto";
option csharp_namespace = "GrpcExample";
service ExampleServer {
// Unary
rpc UnaryCall (ExampleRequest) returns (ExampleResponse);
// Server streaming
rpc StreamingFromServer (ExampleRequest) returns (stream ExampleResponse);
// Client streaming
rpc StreamingFromClient (stream ExampleRequest) returns (ExampleResponse);
// Bi-directional streaming
rpc StreamingBothWays (stream ExampleRequest) returns (stream ExampleResponse);
}
message ExampleRequest {
string securityKey = 1;
string userId = 2;
google.protobuf.Struct userDetail = 3;
string token = 4;
}
message ExampleResponse {
int32 code = 1;
bool result = 2;
string message = 3;
}
4.5、编译生成Stub
GrpcServer项目右键编辑项目文件添加内容
<ItemGroup>
<Protobuf Include="Protos\example.proto" GrpcServices="Server" />
</ItemGroup>
4.6、添加ssl证书(可跳过)
修改Program.cs
builder.WebHost
.ConfigureKestrel(serviceOpt =>
{
var httpPort = builder.Configuration.GetValue<int>("port:http");
var httpsPort = builder.Configuration.GetValue<int>("port:https");
serviceOpt.Listen(IPAddress.Any, httpPort, opt => opt.UseConnectionLogging());
serviceOpt.Listen(IPAddress.Any, httpsPort, listenOpt =>
{
var enableSsl = builder.Configuration.GetValue<bool>("enableSsl");
if (enableSsl)
{
listenOpt.UseHttps("Certs\\cert.pfx", "1234.com");
}
else
{
listenOpt.UseHttps();
}
listenOpt.UseConnectionLogging();
});
});
修改appsettings.json，添加配置项
"port": {
"http": 5000,
"https": 7000
},
"enableSsl": true
4.7、新建服务类
using Grpc.Core;
using GrpcCommon.Helpers;
using GrpcCommon.Models;
using GrpcExampleServer;
using Newtonsoft.Json;
namespace GrpcServer.Services
{
public class ExampleService : ExampleServer.ExampleServerBase
{
private readonly ILogger<ExampleService> _logger;
public ExampleService(ILogger<ExampleService> logger)
{
_logger = logger;
}
public override Task<ExampleResponse> UnaryCall(ExampleRequest request, ServerCallContext context)
{
Console.WriteLine(request.ToString());
_logger.LogInformation(request.ToString());
var tokenRes = JwtHelper.ValidateJwt(request.Token, request.SecurityKey);
// 正常响应客户端一次
ExampleResponse result;
if (tokenRes.Item1)
{
var payLoad = JsonConvert.DeserializeObject<JwtToken>(tokenRes.Item2);
if (payLoad == null)
{
result = new ExampleResponse
{
Code = -1,
Result = false,
Message = "payLoad为空"
};
}
else
{
if (!request.UserId.Equals(payLoad.UserId))
{
result = new ExampleResponse
{
Code = -1,
Result = false,
Message = "userid不匹配"
};
}
else
{
var userDetail = JsonConvert.DeserializeObject<UserDetails>(request.UserDetail.Fields.ToString());
result = new ExampleResponse
{
Code = 200,
Result = true,
Message = $"UnaryCall 单次响应: {request.UserId},{userDetail?.UserName}"
};
}
}
}
else
{
// 正常响应客户端一次
result = new ExampleResponse
{
Code = -1,
Result = false,
Message = tokenRes.Item2
};
}
return Task.FromResult(result);
}
public override async Task StreamingFromServer(ExampleRequest request, IServerStreamWriter<ExampleResponse> responseStream, ServerCallContext context)
{
// 无限响应客户端
while (!context.CancellationToken.IsCancellationRequested)
{
await responseStream.WriteAsync(new ExampleResponse
{
Code = 200,
Result = true,
Message = $"StreamingFromServer 无限响应: {Guid.NewGuid()}"
});
await Task.Delay(TimeSpan.FromSeconds(3), context.CancellationToken);
}
}
public override async Task<ExampleResponse> StreamingFromClient(IAsyncStreamReader<ExampleRequest> requestStream, ServerCallContext context)
{
// 处理请求
await foreach (var req in requestStream.ReadAllAsync())
{
Console.WriteLine(req.UserId);
}
// 响应客户端
return new ExampleResponse
{
Code = 200,
Result = true,
Message = $"StreamingFromClient 单次响应: {Guid.NewGuid()}"
};
}
public override async Task StreamingBothWays(IAsyncStreamReader<ExampleRequest> requestStream, IServerStreamWriter<ExampleResponse> responseStream, ServerCallContext context)
{
// 服务器响应客户端一次
// 处理请求
//await foreach (var req in requestStream.ReadAllAsync())
//{
// Console.WriteLine(req.UserName);
//}
// 请求处理完成之后只响应一次
//await responseStream.WriteAsync(new ExampleResponse
//{
// Code = 200,
// Result = true,
// Message = $"StreamingBothWays 单次响应: {Guid.NewGuid()}"
//});
//await Task.Delay(TimeSpan.FromSeconds(3), context.CancellationToken);
// 服务器响应客户端多次
// 处理请求
var readTask = Task.Run(async () =>
{
await foreach (var req in requestStream.ReadAllAsync())
{
Console.WriteLine(req.UserId);
}
});
// 请求未处理完之前一直响应
while (!readTask.IsCompleted)
{
await responseStream.WriteAsync(new ExampleResponse
{
Code = 200,
Result = true,
Message = $"StreamingBothWays 请求处理完之前的响应: {Guid.NewGuid()}"
});
await Task.Delay(TimeSpan.FromSeconds(3), context.CancellationToken);
}
// 也可以无限响应客户端
//while (!context.CancellationToken.IsCancellationRequested)
//{
// await responseStream.WriteAsync(new ExampleResponse
// {
// Code = 200,
// Result = true,
// Message = $"StreamingFromServer 无限响应: {Guid.NewGuid()}"
// });
// await Task.Delay(TimeSpan.FromSeconds(3), context.CancellationToken);
//}
}
}
}
五、搭建grpc客户端
5.1、新建控制台程序
GrpcClient
5.2、拷贝文件夹
将GrpcServer下的Protos拷贝一份到GrpcClient中

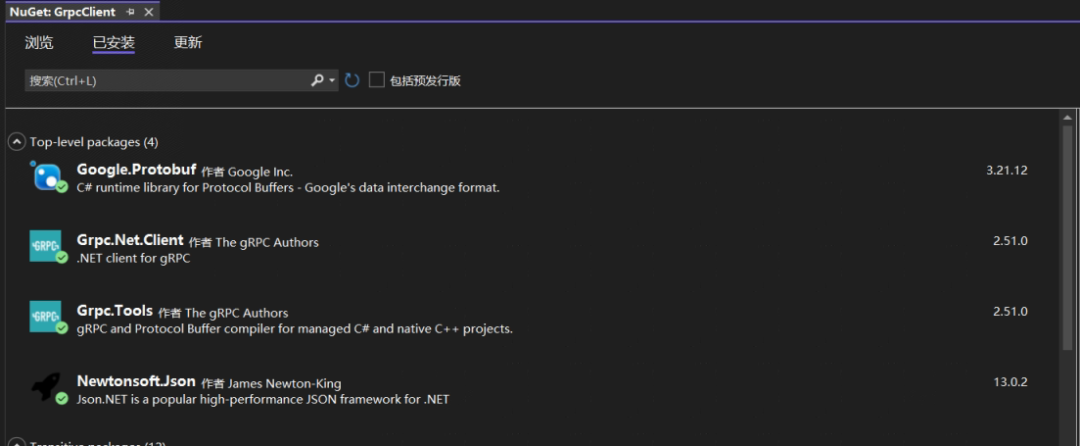

5.3、安装依赖包
Google.Protobuf 3.21.12,Grpc.Net.Client 2.51.0,Grpc.Tools 2.51.0,Newtonsoft.Json 13.0.2
5.4、编译生成Stub
GrpcServer项目右键编辑项目文件添加内容，注意这里是Client
<ItemGroup>
<Protobuf Include="Protos\example.proto" GrpcServices="Client" />
</ItemGroup>
5.5、新建测试类
using System.Security.Cryptography.X509Certificates;
using Grpc.Net.Client;
using Google.Protobuf.WellKnownTypes;
using Grpc.Core;
using GrpcCommon.Helpers;
using GrpcExample;
namespace GrpcClient.Test
{
internal class ExampleTest
{
public static void Run()
{
// 常规请求响应
UnaryCall();
// 服务器流响应
StreamingFromServer();
// 客户端流响应
StreamingFromClient();
// 双向流响应
StreamingBothWays();
}
/// <summary>
/// 创建客户端链接
/// </summary>
/// <param name="enableSsl"></param>
/// <returns></returns>
private static ExampleServer.ExampleServerClient CreateClient(bool enableSsl = true)
{
GrpcChannel channel;
if (enableSsl)
{
const string serverUrl = "https://localhost:7000";
Console.WriteLine($"尝试链接服务器,{serverUrl}");
var handler = new HttpClientHandler();
// 添加证书
handler.ClientCertificates.Add(new X509Certificate2("Certs\\cert.pfx", "1234.com"));
// 忽略证书
handler.ServerCertificateCustomValidationCallback = HttpClientHandler.DangerousAcceptAnyServerCertificateValidator;
channel = GrpcChannel.ForAddress(serverUrl, new GrpcChannelOptions
{
HttpClient = new HttpClient(handler)
});
}
else
{
const string serverUrl = "http://localhost:5000";
Console.WriteLine($"尝试链接服务器,{serverUrl}");
channel = GrpcChannel.ForAddress(serverUrl);
}
Console.WriteLine("服务器链接成功");
return new ExampleServer.ExampleServerClient(channel);
}
private static async void UnaryCall()
{
var client = CreateClient();
const string securityKey = "Dennis!@#$%^123456.com";
var userId = Guid.NewGuid().ToString();
var token = JwtHelper.GenerateJwt(securityKey, userId);
var result = await client.UnaryCallAsync(new ExampleRequest
{
SecurityKey = securityKey,
UserId = "Dennis",
UserDetail = new Struct
{
Fields =
{
["userName"] = Value.ForString("Dennis"),
["age"] = Value.ForString("18"),
["friends"] = Value.ForList(Value.ForString("Roger"), Value.ForString("YueBe"))
}
},
Token = token
});
Console.WriteLine($"Code={result.Code},Result={result.Result},Message={result.Message}");
}
private static async void StreamingFromServer()
{
var client = CreateClient();
var result = client.StreamingFromServer(new ExampleRequest
{
UserId = "Dennis"
});
await foreach (var resp in result.ResponseStream.ReadAllAsync())
{
Console.WriteLine($"Code={resp.Code},Result={resp.Result},Message={resp.Message}");
}
}
private static async void StreamingFromClient()
{
var client = CreateClient();
var result = client.StreamingFromClient();
// 发送请求
for (var i = 0; i < 5; i++)
{
await result.RequestStream.WriteAsync(new ExampleRequest
{
UserId = $"StreamingFromClient 第{i}次请求"
});
await Task.Delay(TimeSpan.FromSeconds(1));
}
// 等待请求发送完毕
await result.RequestStream.CompleteAsync();
var resp = result.ResponseAsync.Result;
Console.WriteLine($"Code={resp.Code},Result={resp.Result},Message={resp.Message}");
}
private static async void StreamingBothWays()
{
var client = CreateClient();
var result = client.StreamingBothWays();
// 发送请求
for (var i = 0; i < 5; i++)
{
await result.RequestStream.WriteAsync(new ExampleRequest
{
UserId = $"StreamingBothWays 第{i}次请求"
});
await Task.Delay(TimeSpan.FromSeconds(1));
}
// 处理响应
var respTask = Task.Run(async () =>
{
await foreach (var resp in result.ResponseStream.ReadAllAsync())
{
Console.WriteLine($"Code={resp.Code},Result={resp.Result},Message={resp.Message}");
}
});
// 等待请求发送完毕
await result.RequestStream.CompleteAsync();
// 等待响应处理
await respTask;
}
}
}
5.6、修改程序入口
using GrpcClient.Test;
using Microsoft.Extensions.Hosting;
// Example测试
ExampleTest.Run();
Console.WriteLine("==================");
Console.WriteLine("按Ctrl+C停止程序");
Console.WriteLine("==================");
// 监听Ctrl+C
await new HostBuilder().RunConsoleAsync();
六、运行项目
6.1、拷贝证书
把整个Certs文件夹分别拷贝到GrpcServer 根目录和GrpcClient的\bin\Debug\net6.0下

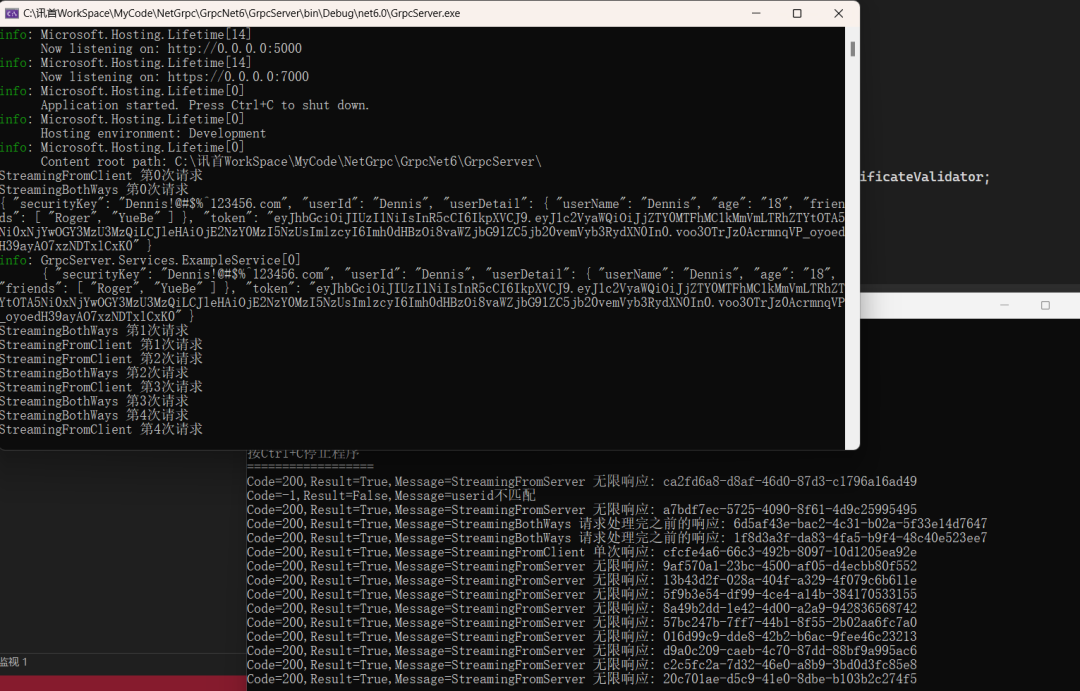

6.2、启动程序
先运行GrpcServer在运行GrpcClient即可
6.3、调试

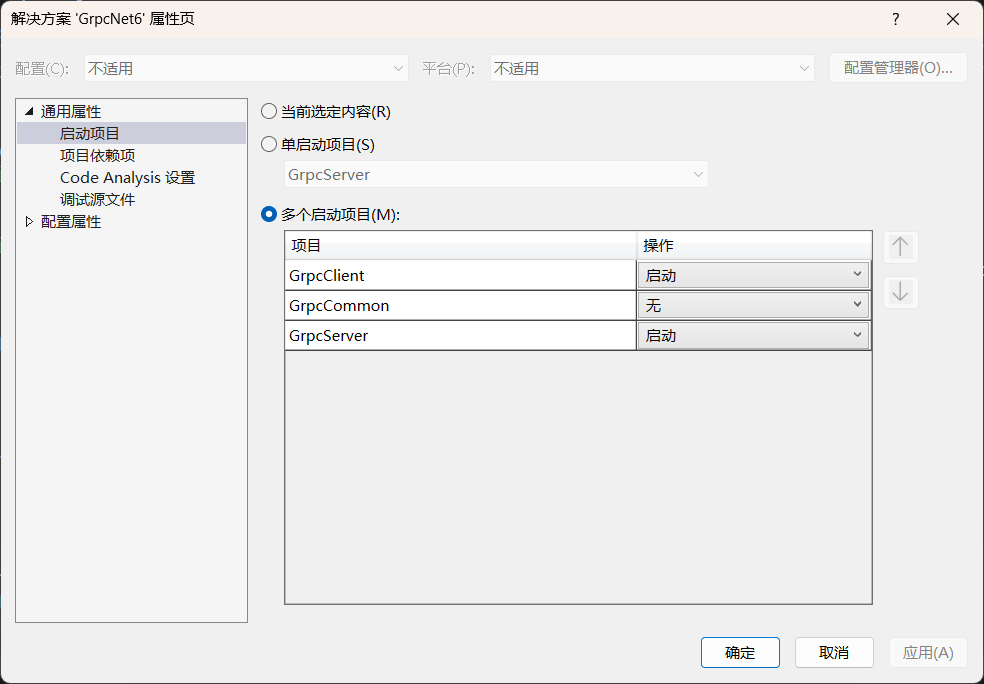

右键解决方案-->属性-->启动项目-->选择多个启动项目-->F5调试即可
七、源码
地址：https://gitee.com/dennisdong/net-grpc
