实现一个简单的在浏览器运行Dotnet编辑器

之前已经实现过Blazor在线编译了,现在我们 实现一个简单的在浏览器运行的编辑器,并且让他可以编译我们的C#代码,

技术栈:

Roslyn 用于编译c#代码

[monaco](microsoft/monaco-editor: A browser based code editor (github.com)) 用于提供语法高亮和代码的智能提示.

WebAssembly在线编译使用场景

问:在浏览器编译有什么用?我可以在电脑编译还可以调试,为什么要在浏览器中去编译代码?

答:对比某些场景,比如一些Blazor组件库,提供一个简单的编辑框,在编辑框中可以编辑组件代码,并且实时看到组件动态渲染效果,这样是不是会提高一些开发效率?或者说在某些学生,可能刚刚入门,还没有开发设备,想着熟悉c#,使用在线编辑是不是更简单?

问:WebAssembly不是打包几十MB吗?那岂不是下载很久?

答: 可以参考这个博客 如何将WebAssembly优化到1MB,Blazor WebAssembly的优化方案。最小可以到1MB,其实并不会很大

问:是否有示例项目?

答:Blazor 在线编辑器 这是一个可以在浏览器动态编译Blazor的编辑器,

创建WebAssembly

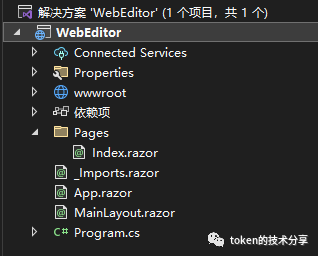

实现我们创建一个空的Blazor WebAssembly的项目 ,并且命名为WebEditor 如图所示

实现一个简单的在浏览器运行Dotnet编辑器

然后删除Pages\Index.razor_Imports.razor,App.razor,MainLayout.razor文件

项目添加包引用,将以下代码copy到项目文件中添加引用

<PackageReference Include="Microsoft.CodeAnalysis.CSharp" Version="4.4.0" />

创建Compile.cs,用于编写编译工具,添加以下代码,在这里我们使用Roslyn编译我们的C#代码,并且执行,这里还会提供 Execute方法供js调用

public class Compile{    /// <summary>    /// 定义需要加载的程序集,相当于项目引用第三方程序集    /// </summary>    static List<string> ReferenceAssembly = new(){        "/_framework/System.dll",        "/_framework/System.Buffers.dll",        "/_framework/System.Collections.dll",        "/_framework/System.Core.dll",        "/_framework/System.Linq.Expressions.dll",        "/_framework/System.Linq.Parallel.dll",        "/_framework/mscorlib.dll",        "/_framework/System.Linq.dll",        "/_framework/System.Console.dll",        "/_framework/System.Private.CoreLib.dll",        "/_framework/System.Runtime.dll"    };    private static IEnumerable<MetadataReference>? _references;    private static CSharpCompilation _previousCompilation;    private static object[] _submissionStates = { null, null };    private static int _submissionIndex = 0;    /// <summary>    /// 注入的HttpClient    /// </summary>    private static HttpClient Http;    /// <summary>    /// 初始化Compile    /// </summary>    /// <param name="http"></param>    /// <returns></returns>    public static void Init(HttpClient http)    {        Http = http;    }    [JSInvokable("Execute")]    public static async Task<string> Execute(string code)    {        return await RunSubmission(code);    }    private static bool TryCompile(string source, out Assembly? assembly, out IEnumerable<Diagnostic> errorDiagnostics)    {        assembly = null;        var scriptCompilation = CSharpCompilation.CreateScriptCompilation(            Path.GetRandomFileName(),            CSharpSyntaxTree.ParseText(source, CSharpParseOptions.Default.WithKind(SourceCodeKind.Script)                .WithLanguageVersion(LanguageVersion.Preview)), _references,            // 默认引用的程序集            new CSharpCompilationOptions(OutputKind.DynamicallyLinkedLibrary, usings: new[]            {                "System",                "System.Collections.Generic",                "System.Console",                "System.Diagnostics",                "System.Dynamic",                "System.Linq",                "System.Linq.Expressions",                "System.Text",                "System.Threading.Tasks"            }, concurrentBuild: false), // 需要注意,目前由于WebAssembly不支持多线程,这里不能使用并发编译            _previousCompilation        );        errorDiagnostics = scriptCompilation.GetDiagnostics().Where(x => x.Severity == DiagnosticSeverity.Error);        if (errorDiagnostics.Any())        {            return false;        }        using var peStream = new MemoryStream();        var emitResult = scriptCompilation.Emit(peStream);        if (emitResult.Success)        {            _submissionIndex++;            _previousCompilation = scriptCompilation;            assembly = Assembly.Load(peStream.ToArray());            return true;        }        return false;    }    /// <summary>    /// 执行Code    /// </summary>    /// <param name="code"></param>    /// <returns></returns>    private static async Task<string> RunSubmission(string code)    {        var diagnostic = string.Empty;        try        {            if (_references == null)            {                // 定义零时集合                var references = new List<MetadataReference>(ReferenceAssembly.Count);                foreach (var reference in ReferenceAssembly)                {                    await using var stream = await Http.GetStreamAsync(reference);                    references.Add(MetadataReference.CreateFromStream(stream));                }                _references = references;            }            if (TryCompile(code, out var script, out var errorDiagnostics))            {                var entryPoint = _previousCompilation.GetEntryPoint(CancellationToken.None);                var type = script.GetType($"{entryPoint.ContainingNamespace.MetadataName}.{entryPoint.ContainingType.MetadataName}");                var entryPointMethod = type.GetMethod(entryPoint.MetadataName);                var submission = (Func<object[], Task>)entryPointMethod.CreateDelegate(typeof(Func<object[], Task>));                // 如果不进行添加会出现超出索引                if (_submissionIndex >= _submissionStates.Length)                {                    Array.Resize(ref _submissionStates, Math.Max(_submissionIndex, _submissionStates.Length * 2));                }                // 执行代码                _ = await ((Task<object>)submission(_submissionStates));            }            diagnostic = string.Join(Environment.NewLine, errorDiagnostics);        }        catch (Exception ex)        {            diagnostic += Environment.NewLine + ex;        }        return diagnostic;    }}

修改Program.cs文件,在这里我们注入了HttpClient,并且传递到了Compile.Init中;

var builder = WebAssemblyHostBuilder.CreateDefault(args);builder.RootComponents.Add<HeadOutlet>("head::after");builder.Services.AddScoped(sp => new HttpClient { BaseAddress = new Uri(builder.HostEnvironment.BaseAddress) });var app = builder.Build();// 获取HttpClient传递到初始化编译Compile.Init(app.Services.GetRequiredService<HttpClient>());await app.RunAsync();

编写界面

创建wwwroot/index.html 我们将使用monaco创建我们的编辑框,通过引用cdn加载monaco的js

<!DOCTYPE html><html lang="en"><head>    <meta charset="utf-8" />    <title>WebEditor</title>    <base href="/" />    <link href="web-editor.css" rel="stylesheet" /></head><body>    <div>        <div class="web-editor" id="monaco">        </div>        <div class="web-editor console" id="console">        </div>        <div class="clear" id="clear">            清空调试        </div>        <div class="run" id="run">            运行        </div>    </div>    <!-- 设置autostart="false" 将不会自动加载web Assembly程序集 -->    <script src="_framework/blazor.webassembly.js"></script>    <script>        var require = { paths: { 'vs': 'https://cdn.masastack.com/npm/monaco-editor/0.34.1/min/vs' } };    </script>    <script src="https://cdn.masastack.com/npm/monaco-editor/0.34.1/min/vs/loader.js"></script>    <script src="https://cdn.masastack.com/npm/monaco-editor/0.34.1/min/vs/editor/editor.main.nls.js"></script>    <script src="https://cdn.masastack.com/npm/monaco-editor/0.34.1/min/vs/editor/editor.main.js"></script>    <script>        // 等待dom加载完成        window.addEventListener('load', function () {            // 创建Monaco对象存储在window中            window.webeditor = monaco.editor.create(document.getElementById('monaco'), {                value: `Console.WriteLine("欢迎使用Token在线编辑器");`, // 设置初始值                language: 'csharp', // 设置monaco 语法提示                automaticLayout: true, // 跟随父容器大小                theme: "vs-dark" // 主题            });                        document.getElementById("run").onclick = () => {                // 调用封装的方法将编辑器的代码传入                execute(window.webeditor.getValue());            };            // 清空调试区            document.getElementById('clear').onclick = () => {                document.getElementById("console").innerText = '';            }            async function execute(code) {                // 使用js互操调用WebEditor程序集下的Execute静态方法,并且发送参数                code = await DotNet.invokeMethodAsync('WebEditor', 'Execute', code);                document.getElementById("console").innerText += code;            }        })    </script></body></html>

创建web-editor.css样式文件

/*通用样式*/.web-editor {    height: 98vh; /*可见高度*/    width: 50%;/*区块宽度*/    float: left; }/*运行按钮*/.run {    position: fixed; /*悬浮*/    height: 23px;    width: 34px;    right: 8px; /*靠右上角*/    cursor: pointer; /*显示手指*/    background: #3d5fab; /*背景颜色*/    border-radius: 6px;     user-select: none; /*禁止选择*/}/*清除按钮*/.clear {    position: fixed;    height: 23px;    width: 69px;    right: 45px;    cursor: pointer;    background: #fd0707;    border-radius: 6px;    user-select: none;}.console {    background-color: dimgray;    color: aliceblue;}

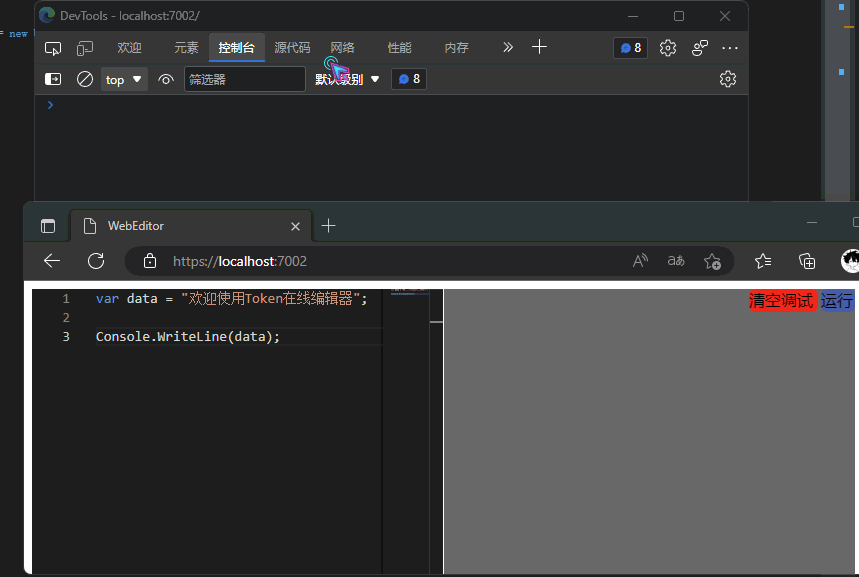

执行我们的项目,效果如图:

实现一个简单的在浏览器运行Dotnet编辑器
