WPF 实现蒙板控件

  • 框架使用.NET40
  • Visual Studio 2022;
  • 使用方式需引入命名空间后 wd:Mask.IsMask="true",即可显示蒙板。
  • 显示蒙板内容需 wd:Mask.Child 进行复赋值。.

1)创建装饰 AdornerContainer 代码如下:

using System.Windows;
using System.Windows.Documents;
using System.Windows.Media;

namespace WPFDevelopers.Utilities
{
    public class AdornerContainer : Adorner
    {
        private UIElement _child;
        public AdornerContainer(UIElement adornedElement) : base(adornedElement)
        {
        }
        public UIElement Child
        {
            get => _child;
            set
            {
                if (value == null)
                {
                    RemoveVisualChild(_child);
                    _child = value;
                    return;
                }
                AddVisualChild(value);
                _child = value;
            }
        }
        protected override int VisualChildrenCount
        {
            get
            {
                return _child != null ? 1 : 0;
            }
        }

        protected override Size ArrangeOverride(Size finalSize)
        {
            _child?.Arrange(new Rect(finalSize));
            return finalSize;
        }

        protected override Visual GetVisualChild(int index)
        {
            if (index == 0 && _child != null) return _child;
            return base.GetVisualChild(index);
        }
    }
}

2)创建蒙板控件 MaskControl 代码如下:

using System.Windows;
using System.Windows.Controls;
using System.Windows.Media;

namespace WPFDevelopers.Controls
{
    public class MaskControl : ContentControl
    {
        private readonly Visual visual;
        public static readonly DependencyProperty CornerRadiusProperty =
          DependencyProperty.Register("CornerRadius", typeof(CornerRadius), typeof(MaskControl),
              new PropertyMetadata(new CornerRadius(0)));
        public MaskControl(Visual _visual)
        {
            visual = _visual;
        }
        public CornerRadius CornerRadius
        {
            get => (CornerRadius)GetValue(CornerRadiusProperty);
            set => SetValue(CornerRadiusProperty, value);
        }
    }
}

3)创建 Mask 继承 Control 增加附加属性 IsMask 代码如下:

  • True 则动态添加装饰器 AdornerContainer 并将 MaskControl 添加到 AdornerContainer.Child 中。
  • False 则移除装饰器。
using System;
using System.Windows;
using System.Windows.Controls;
using System.Windows.Documents;
using WPFDevelopers.Helpers;
using WPFDevelopers.Utilities;

namespace WPFDevelopers.Controls
{
    public class Mask : Control
    {
        public object Child
        {
            get { return (object)GetValue(ChildProperty); }
            set { SetValue(ChildProperty, value); }
        }
        public static readonly DependencyProperty ChildProperty =
            DependencyProperty.Register("Child", typeof(object), typeof(Mask), new PropertyMetadata(null));


        public static object GetChild(UIElement element)
        {
            if (element == null) { throw new ArgumentNullException("element"); }

            return (object)element.GetValue(ChildProperty);
        }

        public static void SetChild(UIElement element, object child)
        {
            if (element == null) { throw new ArgumentNullException("element"); }

            element.SetValue(ChildProperty, child);
        }
        public static readonly DependencyProperty IsMaskProperty =
         DependencyProperty.RegisterAttached("IsMask", typeof(bool), typeof(Mask),
             new PropertyMetadata(false, OnIsMaskChanged));
        private static void OnIsMaskChanged(DependencyObject d, DependencyPropertyChangedEventArgs e)
        {
            PropertyChanged(d, e);
        }
        static void PropertyChanged(DependencyObject d, DependencyPropertyChangedEventArgs e)
        {
            if (e.NewValue is bool isMask && d is FrameworkElement parent)
            {
                if (isMask)
                {
                    if (!parent.IsLoaded)
                        parent.Loaded += Parent_Loaded;
                    else
                        CreateMask(parent);
                }
                else
                {
                    parent.Loaded -= Parent_Loaded;
                    CreateMask(parent, true);
                }
            }
        }
        private static void Parent_Loaded(object sender, RoutedEventArgs e)
        {
            if (sender is UIElement element)
                CreateMask(element);
        }

        static void CreateMask(UIElement uIElement, bool isRemove = false)
        {
            var _layer = AdornerLayer.GetAdornerLayer(uIElement);
            if (_layer == null) return;
            if (isRemove && uIElement != null)
            {
                var adorners = _layer.GetAdorners(uIElement);
                if (adorners != null)
                {
                    foreach (var item in adorners)
                    {
                        if (item is AdornerContainer container)
                        {
                            _layer.Remove(container);
                        }
                    }
                }
                return;
            }

            var _adornerContainer = new AdornerContainer(uIElement);
            var value = Mask.GetChild(uIElement);
             _adornerContainer.Child = new MaskControl(uIElement) { Content = value };
            _layer.Add(_adornerContainer);

        }
        public static bool GetIsMask(DependencyObject obj)
        {
            return (bool)obj.GetValue(IsMaskProperty);
        }

        public static void SetIsMask(DependencyObject obj, bool value)
        {
            obj.SetValue(IsMaskProperty, value);
        }
    }
}

4)创建 Mask.xaml 代码如下:

<ResourceDictionary xmlns="http://schemas.microsoft.com/winfx/2006/xaml/presentation"
                    xmlns:x="http://schemas.microsoft.com/winfx/2006/xaml"
                    xmlns:controls="clr-namespace:WPFDevelopers.Controls">

    <ResourceDictionary.MergedDictionaries>
        <ResourceDictionary Source="Basic/ControlBasic.xaml"/>
    </ResourceDictionary.MergedDictionaries>

    <Style TargetType="{x:Type controls:MaskControl}" BasedOn="{StaticResource ControlBasicStyle}">
        <Setter Property="HorizontalContentAlignment" Value="Center"/>
        <Setter Property="VerticalContentAlignment" Value="Center"/>
        <Setter Property="Background" Value="{DynamicResource PrimaryTextSolidColorBrush}"/>
        <Setter Property="Template">
            <Setter.Value>
                <ControlTemplate TargetType="{x:Type controls:MaskControl}">
                    <controls:SmallPanel>
                        <Border x:Name="PART_Border"
                                        BorderBrush="{TemplateBinding BorderBrush}"
                                        BorderThickness="{TemplateBinding BorderThickness}"
                                        Background="{TemplateBinding Background}"
                                        Height="{TemplateBinding Height}"
                                        Width="{TemplateBinding Height}"
                                        CornerRadius="{TemplateBinding CornerRadius}"
                                        Opacity=".7"/>
                        <ContentPresenter Margin="{TemplateBinding Padding}"
                                                  VerticalAlignment="{TemplateBinding VerticalContentAlignment}"
                                                  HorizontalAlignment="{TemplateBinding HorizontalContentAlignment}"/>
                    </controls:SmallPanel>
                </ControlTemplate>
            </Setter.Value>
        </Setter>
    </Style>
</ResourceDictionary>

5)创建 MaskExample.xaml 实例代码如下:

<UserControl x:Class="WPFDevelopers.Samples.ExampleViews.MaskExample"
             xmlns="http://schemas.microsoft.com/winfx/2006/xaml/presentation"
             xmlns:x="http://schemas.microsoft.com/winfx/2006/xaml"
             xmlns:mc="http://schemas.openxmlformats.org/markup-compatibility/2006"
             xmlns:d="http://schemas.microsoft.com/expression/blend/2008"
             xmlns:wd="https://github.com/WPFDevelopersOrg/WPFDevelopers"
             xmlns:controls="clr-namespace:WPFDevelopers.Samples.Controls"
             xmlns:local="clr-namespace:WPFDevelopers.Samples.ExampleViews"
             mc:Ignorable="d"
             d:DesignHeight="450" d:DesignWidth="800">
        <Grid Margin="10">

            <StackPanel>
                <ToggleButton Name="ToggleButtonMask"/>
                <Border Background="LawnGreen" Height="200"
                    wd:Mask.IsMask="{Binding ElementName=ToggleButtonMask,Path=IsChecked}"
                    Margin="10">
                    <wd:Mask.Child>
                        <Border>
                            <TextBox wd:ElementHelper.IsWatermark="True"
                                 wd:ElementHelper.Watermark="我是蒙板输入框"/>
                        </Border>
                    </wd:Mask.Child>
                    <Button Content="Mask"
                        VerticalAlignment="Center"
                        HorizontalAlignment="Center"/>
                </Border>
            </StackPanel>
        </Grid>
</UserControl>

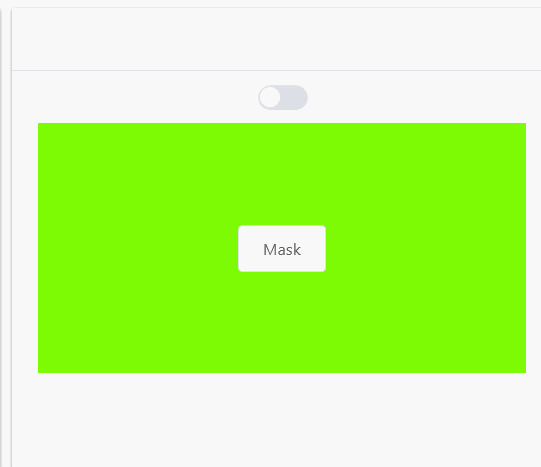

WPF 实现蒙板控件
