WPF图形概述
-
-
Line，直线段，可以设置Stroke
-
Rectangle，有Stroke也有Fill
-
Ellipse，椭圆，同上
-
Polygon，多边形。由多条直线线段围成的闭合区域，同上。
-
Polyline，折线，不闭合，由多条首尾相接的直线段组成
-
Path，路径，闭合。可以由若干直线、圆弧、贝塞尔曲线（由线段与节点组成，节点是可拖动的支点，线段像可伸缩的皮筋）组成。很强大。
-

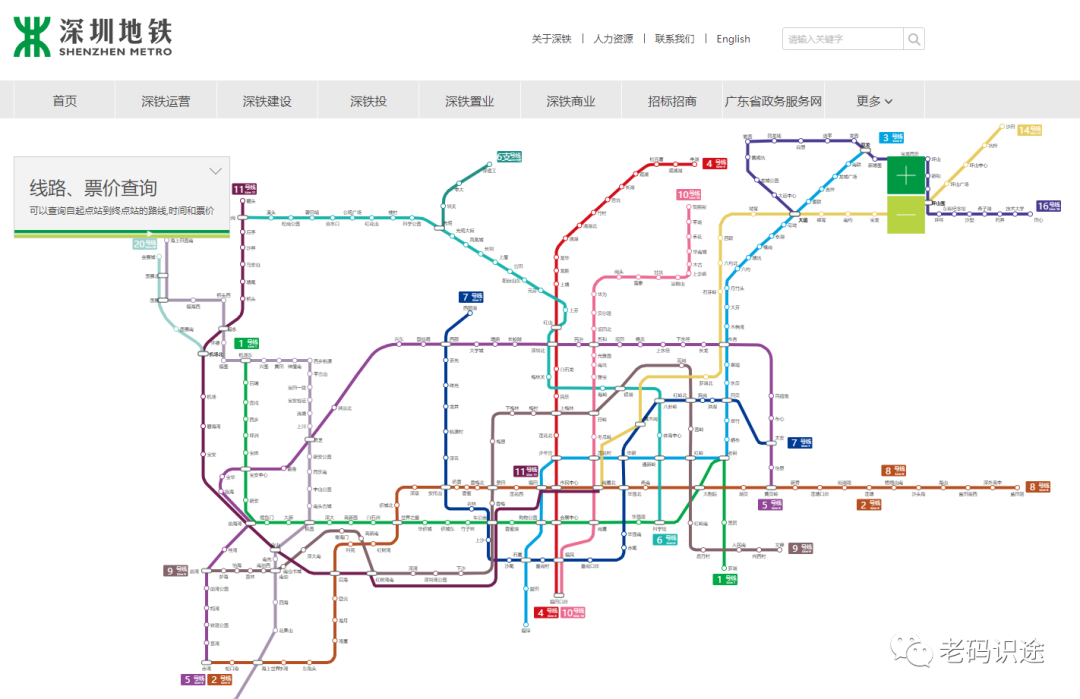

地铁官网效果

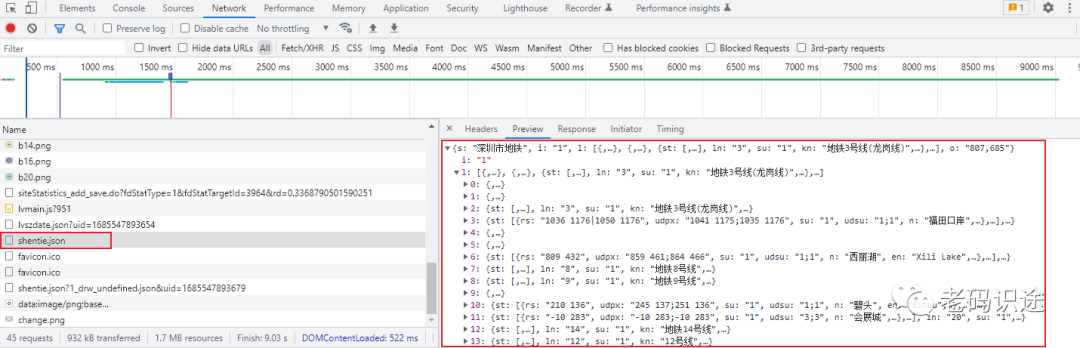

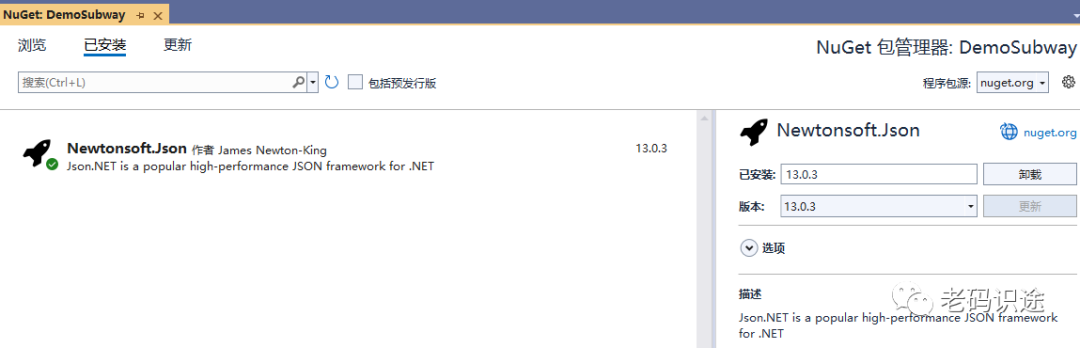

获取地铁路线数据
构建数据模型
namespace DemoSubway.Models{/// <summary>/// 深圳地铁模型/// </summary>public class ShenTie{[JsonProperty("s")]public string? Name { get; set; }[JsonProperty("i")]public string? Index { get; set; }[JsonProperty("l")]public SubwayLine[]? SubwayLines { get; set; }[JsonProperty("o")]public string? Obj { get;set; }}public class SubwayLine{[JsonProperty("st")]public St[]? Sites { get; set; }[JsonProperty("ln")]public string? LineNumber { get; set; }[JsonProperty("su")]public string? Su { get; set; }[JsonProperty("kn")]public string? KName { get; set; }[JsonProperty("c")]public string[]? Circles { get;set; }[JsonProperty("lo")]public string? Lo { get; set; }[JsonProperty("lp")]public string[]? LinePosition { get; set; }[JsonProperty("ls")]public string? Ls { get; set; }[JsonProperty("cl")]public string? Color { get; set; }[JsonProperty("la")]public string? La { get; set; }[JsonProperty("x")]public string? X { get; set; }[JsonProperty("li")]public string? Li { get; set; }}public class St{[JsonProperty("rs")]public string? Rs { get; set; }[JsonProperty("udpx")]public string? Udpx { get; set; }[JsonProperty("su")]public string? Su { get; set; }[JsonProperty("udsu")]public string? Udsu { get; set;}[JsonProperty("n")]public string? Name { get; set;}[JsonProperty("en")]public string? En { get; set; }[JsonProperty("sid")]public string? Sid { get; set; }[JsonProperty("p")]public string? Position { get; set; }[JsonProperty("r")]public string? R { get; set; }[JsonProperty("udsi")]public string? Udsi { get; set; }[JsonProperty("t")]public string? T { get; set;}[JsonProperty("si")]public string? Si { get; set; }[JsonProperty("sl")]public string? Sl { get; set;}[JsonProperty("udli")]public string? Udli { get; set; }[JsonProperty("poiid")]public string? Poiid { get; set; }[JsonProperty("lg")]public string? Lg { get; set; }[JsonProperty("sp")]public string? Sp { get; set; }}}
解析数据源
绘制地铁路线图
<Window x:Class="DemoSubway.MainWindow"xmlns="http://schemas.microsoft.com/winfx/2006/xaml/presentation"xmlns:x="http://schemas.microsoft.com/winfx/2006/xaml"xmlns:d="http://schemas.microsoft.com/expression/blend/2008"xmlns:mc="http://schemas.openxmlformats.org/markup-compatibility/2006"xmlns:local="clr-namespace:DemoSubway"mc:Ignorable="d"Title="MainWindow" Height="450" Width="800" Loaded="Window_Loaded"><Grid><Grid.RowDefinitions><RowDefinition Height="Auto"></RowDefinition><RowDefinition Height="*"></RowDefinition></Grid.RowDefinitions><StackPanel Grid.Row="0" Orientation="Horizontal" HorizontalAlignment="Center"><TextBlock x:Name="tbTitle" FontSize="30" HorizontalAlignment="Center"></TextBlock></StackPanel><Viewbox Stretch="Fill" Grid.Row="1"><Grid x:Name="subwayBox"></Grid></Viewbox></Grid></Window>
private void Window_Loaded(object sender, RoutedEventArgs e){string jsonFile = "shentie.json";JsonHelper jsonHelper = new JsonHelper();var shentie = jsonHelper.Deserialize<ShenTie>(jsonFile);this.tbTitle.Text = shentie.Name;List<string> lstSites = new List<string>();for(int i = 0; i < shentie.SubwayLines?.Length; i++){var subwayLine= shentie.SubwayLines[i];if(subwayLine != null){//地铁线路var color = ColorTranslator.FromHtml($"#{subwayLine.Color}");//线路颜色var circles = subwayLine.Circles;//线路节点Path line = new Path();PathFigureCollection lineFigures = new PathFigureCollection();PathFigure lineFigure = new PathFigure();lineFigure.IsClosed= false;var start = circles?[0].Split(" ");//线路起始位置lineFigure.StartPoint = new System.Windows.Point(int.Parse(start[0]), int.Parse(start[1]));for (int j= 0;j< circles?.Length;j++){var circle= circles[j].Split(" ");LineSegment lineSegment = new LineSegment(new System.Windows.Point(int.Parse(circle[0]), int.Parse(circle[1])),true);lineFigure.Segments.Add(lineSegment);}lineFigures.Add(lineFigure);line.Data = new PathGeometry(lineFigures, FillRule.Nonzero, null);line.Stroke = new SolidColorBrush(System.Windows.Media.Color.FromArgb(color.A, color.R, color.G, color.B));line.StrokeThickness = 4;this.subwayBox.Children.Add(line);//地铁站点for (int j = 0; j < subwayLine.Sites?.Length; j++){var site = subwayLine.Sites[j];if (site != null){//站点标识，圆圈Path siteCirclePath = new Path();var sitePosition = site?.Position?.Split(" ");EllipseGeometry ellipse = new EllipseGeometry();ellipse.Center = new System.Windows.Point(int.Parse(sitePosition[0]), int.Parse(sitePosition[1]));ellipse.RadiusX = 4;ellipse.RadiusY=4;siteCirclePath.Data=ellipse;siteCirclePath.Fill = Brushes.White;siteCirclePath.Stroke = new SolidColorBrush(System.Windows.Media.Color.FromArgb(color.A, color.R, color.G, color.B));siteCirclePath.Cursor= Cursors.Hand;siteCirclePath.Focusable = true;siteCirclePath.Tag = site?.Name;siteCirclePath.MouseDown += SiteCirclePath_MouseDown;this.subwayBox.Children.Add(siteCirclePath);//站点名字if (lstSites.Contains(site?.Name)){continue;//对于交汇站点，只绘制一次}//站点名称Path siteTextPath = new Path();FormattedText siteContent = new FormattedText(site?.Name,CultureInfo.CurrentCulture,FlowDirection.LeftToRight,new Typeface("Arial"),14,Brushes.Black, 1.25);var x = int.Parse(sitePosition[0]);var y = int.Parse(sitePosition[1]);if (j + 1 < subwayLine.Sites?.Length){//站点位置适当偏移var next = subwayLine.Sites[j + 1]?.Position?.Split(" ");var nextx = int.Parse(next[0]);var nexty = int.Parse(next[1]);if (x == nextx){x = x + 6;}else if (y == nexty){y = y + 6;}else{x = x + 1;y = y + 1;}}Geometry geometry = siteContent.BuildGeometry(new System.Windows.Point(x, y));siteTextPath.Data = geometry;siteTextPath.Stroke = Brushes.Black;siteTextPath.Focusable = true;siteTextPath.Cursor = Cursors.Hand;siteTextPath.MouseDown += SiteTextPath_MouseDown;siteTextPath.Tag = site?.Name;this.subwayBox.Children.Add(siteTextPath);lstSites.Add(site?.Name);}}var kName = subwayLine.KName;//线路名称var linePosition= subwayLine.LinePosition?[0].Split(" ");if(kName != null){Path lineNamePath = new Path();FormattedText lineNameText = new FormattedText(kName, CultureInfo.CurrentCulture,FlowDirection.LeftToRight,new Typeface("Arial"),16,Brushes.Black,1.25);var lineX = int.Parse(linePosition[0]);var lineY = int.Parse(linePosition[1]);if (subwayLine.LineNumber == "1"){lineX = lineX - 10;lineY = lineY + 20;}Geometry geometry = lineNameText.BuildGeometry(new System.Windows.Point(lineX, lineY));lineNamePath.Data=geometry;lineNamePath.Stroke = new SolidColorBrush(System.Windows.Media.Color.FromArgb(color.A, color.R, color.G, color.B));this.subwayBox.Children.Add(lineNamePath);}}}}

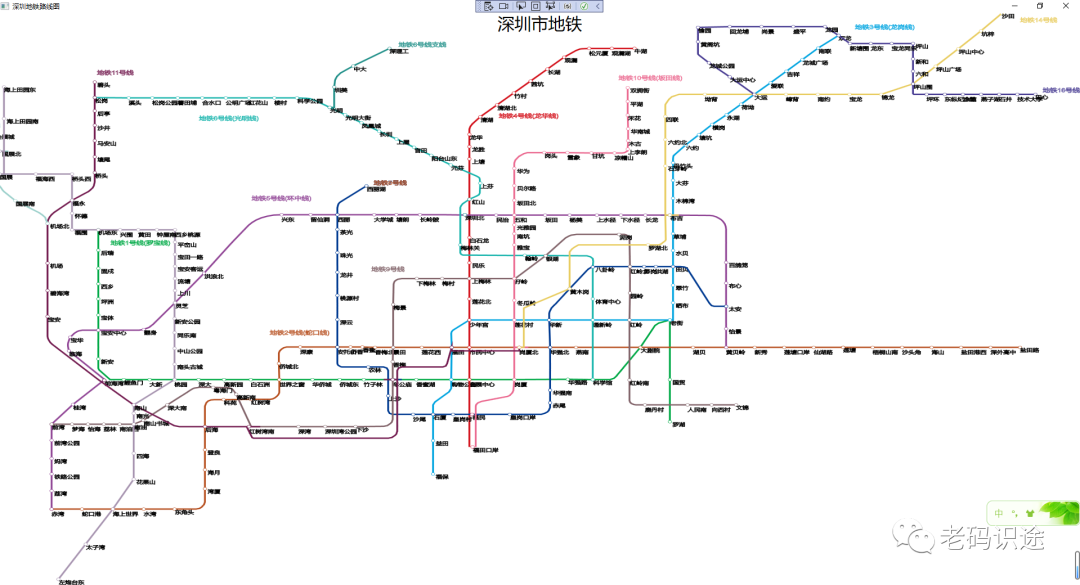

效果展示
