.NET Core程序实现Windows系统Development、Staging、Production三种环境的无感部署

〇、前言

日常开发中,程序的环境切换是相当频繁的了,如果不同环境中的某些参数不同,那就需要每次编辑之前手动进行修改,比较麻烦,效率低下。

本文将以 .NET Core WebAPI 项目的配置方法为例,分步骤实现根据环境变量的配置参数,自动读取对应配置文件中的特殊参数值,从而达到 Development、Staging、Production 三种环境的无感部署。.

一、配置文件

程序一般默认只有一个配置文件:appsettings.Development.json。

需要手动添加另外两个:appsettings.Staging.json、appsettings.Production.json。

 原配置文件中,默认只有一个节点:Logging,如下:

{  "Logging": {    "LogLevel": {      "Default": "Information",      "Microsoft": "Warning",      "Microsoft.Hosting.Lifetime": "Information"    }  }}


需要手动添加一个与 Logging 同级的节点,名称自定义,如下示例:

{  "Logging": {    "LogLevel": {      "Default": "Information",      "Microsoft": "Warning",      "Microsoft.Hosting.Lifetime": "Information"    }  },  "MyPara": {    "myparavalue": "测试文本",    "myparavalue2": [      {        "key": "111",        "value": "v111"      },      {        "key": "222",        "value": "v222"      },      {        "key": "333",        "value": "v333"      }    ]  }}

注意,三个配置文件中需要加上完全一样的参数名称,然后根据环境不同配置不同的值。

二、程序读取配置

1. 配置文件信息读取实现

接下来就是在程序中配置读取了,在控制器的构造函数添加环境判断,然后取出配置文件中新增节点的值备用。

以下实例,包含了读取 字符值、列表值 两种:

using Microsoft.AspNetCore.Hosting;using Microsoft.Extensions.Configuration; [Route("api/[controller]/[action]")][ApiController]public class SystemConfigController : ControllerBase // SystemConfig{    public static IConfigurationRoot configurationRoot = null;    // 示例只有两个字段,就用字典 Dictionary 来演示了,若字段较多时,可用实体对象 list    public static Dictionary<string, string> keyValuePairs = new Dictionary<string, string>();    public SystemConfigController(IWebHostEnvironment env)    {        try        {            configurationRoot = AppConfigure.GetConfigurationRoot(env.ContentRootPath, env.EnvironmentName);            if (keyValuePairs.Count == 0) // 仅首次加载时读取            {                string flag = string.Empty;                int i = 0;                while (flag != null)                {                    var keyinfo = configurationRoot[$"MyConfigPara:myparavalue2:{i}:key"];                    var valueinfo = configurationRoot[$"MyConfigPara:myparavalue2:{i}:value"];                    if (keyinfo != null && valueinfo != null)                    {                        keyValuePairs.Add(keyinfo, valueinfo); // 加入字典                        i++;                    }                    else                        flag = null;                }            }        }        catch (Exception ex)        {            // 日志框架记录日志        }    }    public void TestAction()    {        // 读取配置文件具体值        string myparavalue = configurationRoot["MyPara:myparavalue"];    }}

配置文件读取帮助类:AppConfigure.cs。

using Microsoft.Extensions.Configuration;using System.Collections.Concurrent; public static class AppConfigure{    // 缓存字典    private static readonly ConcurrentDictionary<string, IConfigurationRoot> _cacheDict;    static AppConfigure()    {        _cacheDict = new ConcurrentDictionary<string, IConfigurationRoot>();    }    // 传入 JSON 文件夹路径与当前的环境变量值    public static IConfigurationRoot GetConfigurationRoot(string jsonDir, string environmentName = null)    {        // 设置缓存的 KEY        var cacheKey = $"{jsonDir}#{environmentName}";        // 添加默认的 JSON 配置        var builder = new ConfigurationBuilder().SetBasePath(jsonDir)            .AddJsonFile("appsettings.json", optional: true, reloadOnChange: true);        // 根据环境变量添加相应的 JSON 配置文件        if (!string.IsNullOrEmpty(environmentName))        {            builder = builder.AddJsonFile($"appsettings.{environmentName}.json", optional: true, reloadOnChange: true);        }        // 返回构建成功的 IConfigurationRoot 对象        return builder.Build();    }}

2. 关于本机测试

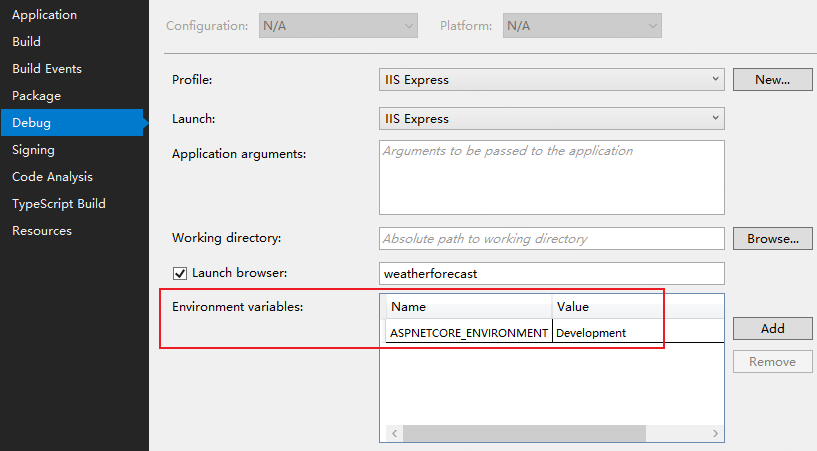

可以通过修改项目的初始设置文件(文件夹下 Properties-->launchSettings.json)修改当前的运行环境,也可以在项目属性的“Debug”中修改,效果是一样的,如下:

{  "$schema": "http://json.schemastore.org/launchsettings.json",  "iisSettings": {    "windowsAuthentication": false,    "anonymousAuthentication": true,    "iisExpress": {      "applicationUrl": "http://localhost:40493",      "sslPort": 44360    }  },  "profiles": {    "IIS Express": {      "commandName": "IISExpress",      "launchBrowser": true,      "launchUrl": "weatherforecast",      "environmentVariables": {        "ASPNETCORE_ENVIRONMENT": "Development" // 修改切换运行环境:Development、Production、Staging      }    },    "Finance.ReconciliationPlatform": {      "commandName": "Project",      "dotnetRunMessages": "true",      "launchBrowser": true,      "launchUrl": "weatherforecast",      "applicationUrl": "https://localhost:5001;http://localhost:5000",      "environmentVariables": {        "ASPNETCORE_ENVIRONMENT": "Development"      }    }  }}

.NET Core程序实现Windows系统Development、Staging、Production三种环境的无感部署

注意:launchSettings.json 文件,仅用于本地开发计算机,不会被编译发布到生产环境,因此不能存储重要信息。

三、Windows 服务器配置

最后就是配置 Windows 服务器的环境变量了,用来标识程序运行的环境。

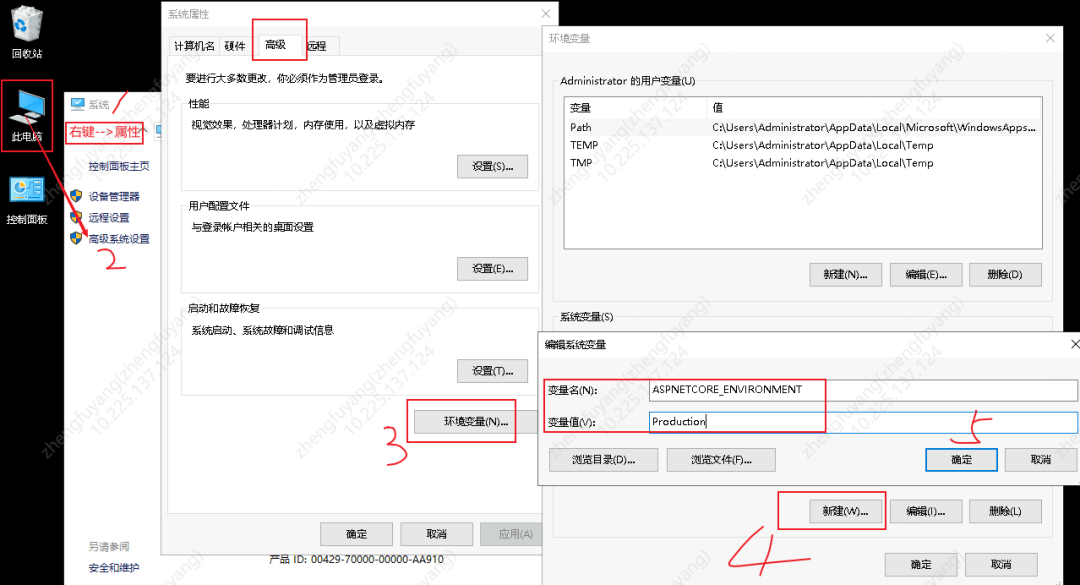

如下图,根据需要配置不同的环境变量:

  • ASPNETCORE_ENVIRONMENT:Development

  • ASPNETCORE_ENVIRONMENT:Staging

  • ASPNETCORE_ENVIRONMENT:Production

注意:此方法配置的是服务器的环境变量,针对的是整台机器的环境类型,若需求是在同一台机器上配置多类型的程序,请参考后边章节。

.NET Core程序实现Windows系统Development、Staging、Production三种环境的无感部署

至此,就配置完成了。

四、如何在同一台服务器 部署 两种不同环境 的服务?

1、修改 Startup.cs 代码,固定运行环境

通过在 Startup.cs 文件的 Configure() 方法中,赋值环境名称(EnvironmentName),以实现灵活控制程序的环境。

public void Configure(IApplicationBuilder app, IWebHostEnvironment env){    env.EnvironmentName = "Production";    if (env.IsProduction()) // true    {        // 。。。    }}



2、通过 IIS 配置服务的环境变量

通过 IIS 配置环境变量,也是区分生效范围的:

  • 若直接在根目录的“配置编辑器”中配置,则其下的服务将是同一环境类型;(后续更新服务后值不变)

  • 若针对单个服务的“配置编辑器”配置,则仅针对当前服务。(缺点:每次服务更新后,需重新配置)

注意,针对服务的环境配置优先级,高于根目录的配置。继承来的环境配置无法修改,要配置其他的环境,需要新增。

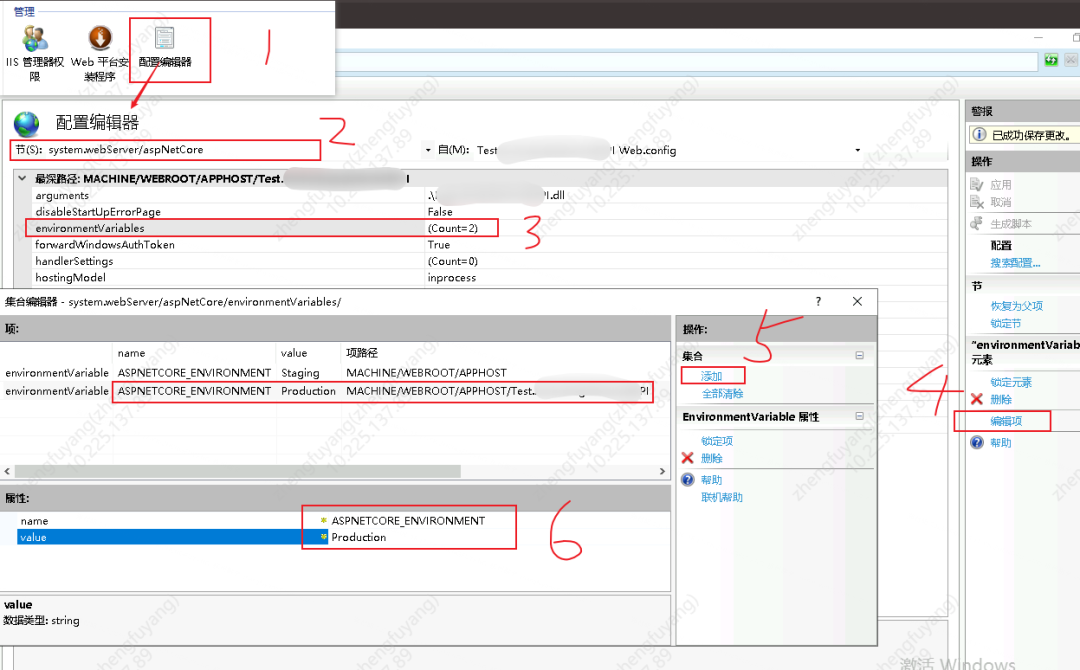

如下配置步骤:

(配置管理器 --> 根据路径查找 system.webServer/aspNetCore --> system.webServer/aspNetCore --> 编辑项ASPNETCORE_ENVIRONMENT填入指定的环境值Production、Staging、Development

.NET Core程序实现Windows系统Development、Staging、Production三种环境的无感部署

项路径中另加服务名称的就是在当前服务新增的,另外一个则是从根目录继承来的,当前新增的优先级较高。
