前言:这篇文章主要是用来解决下拉框样式问题的,当下拉框需要设置成值只能进行选择而不能输入的时候,即设置属性ComboBox.DropDownStyle = ComboBoxStyle.DropDownList;
背景颜色就会直接变成灰色,并且没有提供属性可以设置。但是很多时候我们页面上的输入元素都是白色调的,如TextBox
,这样看起来就会很突兀,页面也缺乏协调;所以基于此情况,只好通过重新绘制来解决这个问题。.
为了在各个页面方便使用,以下还是通过自定义控件去实现;当然如果不需要也可以,直接对单个控件的OnDrawItem
事件进行处理就行。
-
新建一个自定义控件,继承自
ComboBox
,并设置以下属性。public partial class ComboBoxEx : ComboBox
DropDownStyle = ComboBoxStyle.DropDownList;
DrawMode = DrawMode.OwnerDrawFixed;
ItemHeight = 24;
-
重写
OnDrawItem
事件,在此事件中对颜色进行修改protected override void OnDrawItem(DrawItemEventArgs e)
{
base.OnDrawItem(e);
if (e.Index >= 0)
{
Brush backgroundBrush = Brushes.White;
Brush foregroundBrush = Brushes.Black;
if ((e.State & DrawItemState.Selected) == DrawItemState.Selected)
{
backgroundBrush = SystemBrushes.Highlight;
foregroundBrush = SystemBrushes.HighlightText;
}
e.Graphics.FillRectangle(backgroundBrush, e.Bounds);
string itemText = GetItemText(Items[e.Index]);
e.Graphics.DrawString(itemText, e.Font, foregroundBrush, e.Bounds.X+2, e.Bounds.Y+2);
}
}

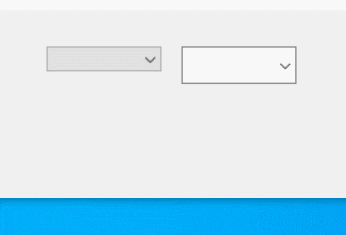

实现效果:
