最近通过WPF开发项目，为了对WPF知识点进行总结，所以利用业余时间，开发一个学生信息管理系统【Student Information Management System】。本文主要简述如何通过WPF+Prism+MAH+WebApi进行开发基于三层架构的桌面版应用程序，仅供学习分享使用，如有不足之处，还请指正。.
涉及知识点
本次开发学生信息管理系统，涉及知识点如下：
-
WPF:WPF（Windows Presentation Foundation）是（微软推出的）基于Windows的用户界面框架，提供了统一的编程模型，语言和框架，做到了分离界面设计人员与开发人员的工作；WPF提供了全新的多媒体交互用户图形界面。相比于WinForm传统开发，在WPF中，通过核心的MVVM设计思想，实现前后端的分离。
-
Prism:Prism是一个用于在 WPF、Xamarin Form、Uno 平台和 WinUI 中构建松散耦合、可维护和可测试的 XAML 应用程序框架。通过Prism，可以简化原生MVVM实现方式，并引入分模块设计思想。在Prism中，每一个功能，都可以设计成一个独立的模块，各个模块之间松耦合，可维护，可测试。框架中包括 MVVM、依赖注入、Command、Message Event、导航、弹窗等功能。在后续程序功能设计中，都会用到。
-
MAH:MahApps是一套基于WPF的界面组件，通过该组件，可以使用较小的开发成本实现一个相对很好的界面效果。作为后端开发，最头疼的就是如何设计美化页面，MAH可以让开发人员用最少的时间来开发Metro风格的页面。
-
WebApi:一般是指ASP.NET WebApi 用于快速开发基于REST风格的数据接口的框架。
Prism的模块化思想

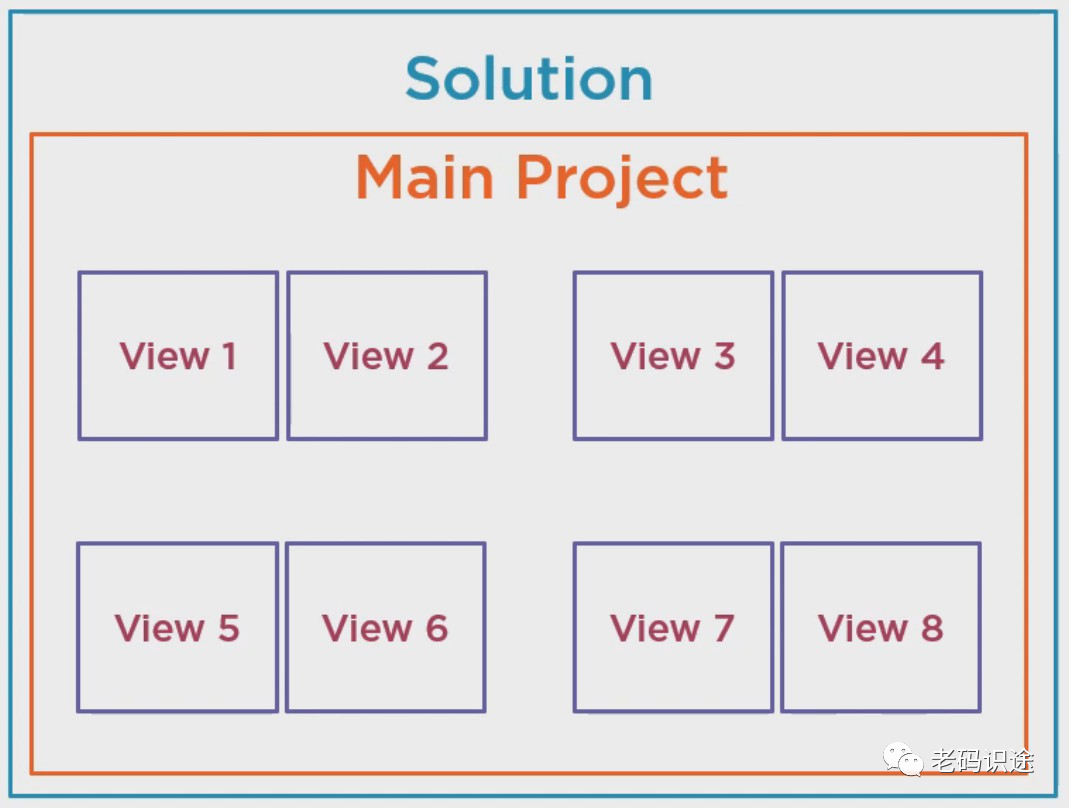

在应用程序开发中，如果不采用模块化思想，那么各个页面混合在一起，看起杂乱无章，具体如下所示：

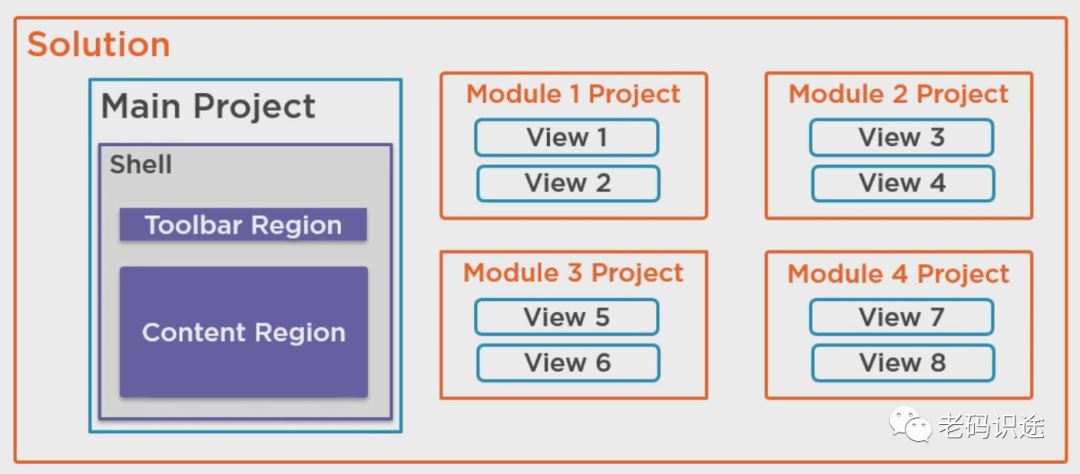

当我们引入模块化思想，那么各个模块的界限将变得清晰，如下所示：

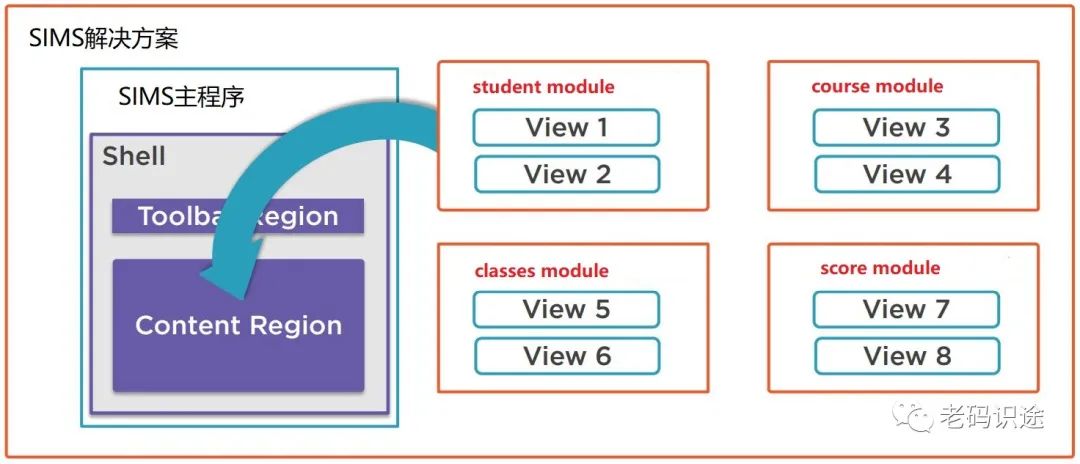

在本文示例的学生信息管理系统中，就是采用模块思想，使项目的各个模块即相对完整，又相互独立。如下所示：

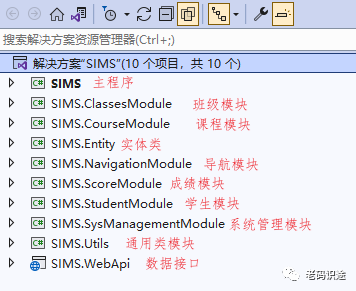

在开发中，引入模块化思想，通过Prism进行代码布局，如下所示：
MVVM思想

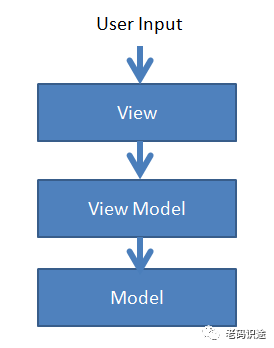

MVVM是Model-View-ViewModel（模型-视图-视图模型）的缩写形式，它通常被用于WPF或Silverlight开发。MVVM的根本思想就是界面和业务功能进行分离，View的职责就是负责如何显示数据及发送命令，ViewModel的功能就是如何提供数据和执行命令。各司其职，互不影响。我们可以通过下图来直观的理解MVVM模式：

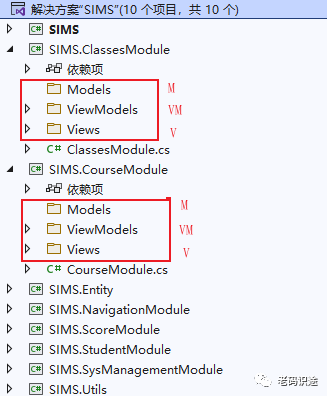

在本示例中，所有开发都将遵循MVVM思想的设计模式进行开发，如下所示：
页面布局

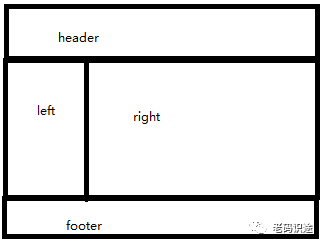

在学生信息管理系统主界面，根据传统的布局方式，主要分为上（Header），中【左（Navigation），右（Main Content）】，下（Footer）四个部分，如下所示：
创建一个模块
一个模块是一个独立的WPF类库，在项目中，一个普通的类实现了IModule接口，就表示一个模块，以学生模块为例，如下所示：
using Prism.Ioc;using Prism.Modularity;using SIMS.StudentModule.ViewModels;using SIMS.StudentModule.Views;using System;namespace SIMS.StudentModule{public class StudentModule : IModule{public void OnInitialized(IContainerProvider containerProvider){}public void RegisterTypes(IContainerRegistry containerRegistry){containerRegistry.RegisterForNavigation<Student, StudentViewModel>(nameof(Student));}}}
注意：在模块中，需要实现两个接口方法。在此模块中的RegisterTypes方法中，可以注册导航，窗口等以及初始化工作。
如果不注册为导航，而是需要注册到某一个Region中，则可以在OnInitialized方法中进行，以导航模块为例，如下所示：
using Prism.Ioc;using Prism.Modularity;using Prism.Regions;using SIMS.NavigationModule.Views;using System;namespace SIMS.NavigationModule{public class NavigationModule : IModule{public void OnInitialized(IContainerProvider containerProvider){var regionManager = containerProvider.Resolve<IRegionManager>();regionManager.RegisterViewWithRegion("NavRegion",typeof(Navigation));}public void RegisterTypes(IContainerRegistry containerRegistry){}}}
View和ViewModel自动适配
View和ViewMode在注册导航时，可以手动匹配，也可以自动匹配【需要以固定的方式命名才可以自动适配】。自动适配，需要是在UserControl中，增加一句prism:ViewModelLocator.AutoWireViewModel="True"即可，以标题头为例，如下所示：
<UserControl x:Class="SIMS.Views.Header"xmlns="http://schemas.microsoft.com/winfx/2006/xaml/presentation"xmlns:x="http://schemas.microsoft.com/winfx/2006/xaml"xmlns:mc="http://schemas.openxmlformats.org/markup-compatibility/2006"xmlns:d="http://schemas.microsoft.com/expression/blend/2008"xmlns:local="clr-namespace:SIMS.Views"mc:Ignorable="d"xmlns:prism="http://prismlibrary.com/"prism:ViewModelLocator.AutoWireViewModel="True"xmlns:mahApps="http://metro.mahapps.com/winfx/xaml/controls"d:DesignHeight="100" d:DesignWidth="800"><UserControl.Resources><ResourceDictionary><ResourceDictionary.MergedDictionaries><ResourceDictionary Source="pack://application:,,,/MahApps.Metro;component/Styles/Themes/Light.Blue.xaml" /></ResourceDictionary.MergedDictionaries></ResourceDictionary></UserControl.Resources><Grid Background="{DynamicResource MahApps.Brushes.Accent}"><Grid.RowDefinitions><RowDefinition Height="*"></RowDefinition><RowDefinition Height="Auto"></RowDefinition></Grid.RowDefinitions><TextBlock Grid.Row="0" Text="学生信息管理系统" Foreground="White" FontSize="32" FontWeight="Bold" HorizontalAlignment="Left" VerticalAlignment="Center" Margin="20,5"></TextBlock><StackPanel Grid.Row="1" HorizontalAlignment="Right" Orientation="Horizontal"><TextBlock Text="Hello" Foreground="White" HorizontalAlignment="Center" VerticalAlignment="Center" Margin="3"></TextBlock><TextBlock Text="Admin" Foreground="White" Margin="3" FontWeight="Bold"></TextBlock><TextBlock Text="|" Foreground="White" Margin="3"></TextBlock><TextBlock Text="Logout" Foreground="White" Margin="3" FontWeight="Bold"></TextBlock></StackPanel></Grid></UserControl>
弹出模态窗口
在Prism中，模块中的视图都是以UserControl的形式存在，那么如果需要弹出窗体页面，就需要在ViewModel中，实现IDialogAware接口，以Login登录窗口为例，如下所示：
using Prism.Regions;using Prism.Services.Dialogs;using SIMS.Views;using System;using System.Collections.Generic;using System.Linq;using System.Text;using System.Threading.Tasks;using System.Windows;namespace SIMS.ViewModels{public class LoginViewModel : BindableBase, IDialogAware{private IRegionManager _regionManager;private IContainerExtension _container;private string userName;public string UserName{get { return userName; }set {SetProperty(ref userName , value); }}private string password;public string Password{get { return password; }set { SetProperty(ref password , value); }}public LoginViewModel(IContainerExtension container,IRegionManager regionManager){this._container = container;this._regionManager = regionManager;}private void InitInfo() {var footer = _container.Resolve<Footer>();IRegion footerRegion = _regionManager.Regions["LoginFooterRegion"];footerRegion.Add(footer);}#region 命令private DelegateCommand loadedCommand;public DelegateCommand LoadedCommand{get{if (loadedCommand == null){loadedCommand = new DelegateCommand(Loaded);}return loadedCommand;}}private void Loaded(){//InitInfo();}private DelegateCommand loginCommand;public DelegateCommand LoginCommand{get{if (loginCommand == null){loginCommand = new DelegateCommand(Login);}return loginCommand;}}private void Login() {if (string.IsNullOrEmpty(UserName) || string.IsNullOrEmpty(Password)) {MessageBox.Show("用户名或密码为空，请确认");return;}if (UserName == "admin" && Password == "abc123"){CloseWindow();}else {MessageBox.Show("用户名密码不正确，请确认");return;}}private DelegateCommand cancelCommand;public DelegateCommand CancelCommand{get{if (cancelCommand == null){cancelCommand = new DelegateCommand(Cancel);}return cancelCommand;}}private void Cancel() {RequestClose?.Invoke(new DialogResult(ButtonResult.Cancel));}#endregion#region DialogAware接口public string Title => "SIMS-Login";public event Action<IDialogResult> RequestClose;/// <summary>/// 成功时关闭窗口/// </summary>public void CloseWindow() {RequestClose?.Invoke(new DialogResult(ButtonResult.OK));}public bool CanCloseDialog(){return true;}public void OnDialogClosed(){//当关闭时RequestClose?.Invoke(new DialogResult(ButtonResult.Cancel));}public void OnDialogOpened(IDialogParameters parameters){//传递解析参数}#endregion}}
实现了IDialogAware接口，表示以窗口的形态出现，在需要弹出窗口的地方进行调用即可。如下所示：
public MainWindowViewModel(IContainerExtension container, IRegionManager regionManager, IEventAggregator eventAggregator,IDialogService dialogService) {this._container = container;this._regionManager = regionManager;this.eventAggregator = eventAggregator;this._dialogService = dialogService;//弹出登录窗口this._dialogService.ShowDialog("Login", null, LoginCallback, "MetroDialogWindow");this.eventAggregator.GetEvent<NavEvent>().Subscribe(Navigation);}
注意：MetroDialogWindow是自定义个一个Metro风格的窗口，如果为空，则采用默认窗口风格。
模块间交互
按照模块化设计思想，虽然各个模块之间相互独立，但是难免为遇到模块之间进行交互的情况，所以Prism提供了事件聚合器，通过命令的发布和订阅来实现模块间的数据交互。以导航模块为例，当点击某一个导航时，发布一个命令，在主窗口订阅此事件，当收到事件时，将此导航对应的页面渲染到主页面区域中。步骤如下：
1. 定义一个事件
using Prism.Events;using System;using System.Collections.Generic;using System.Linq;using System.Text;using System.Threading.Tasks;namespace SIMS.Utils.Events{/// <summary>/// 导航事件/// </summary>public class NavEvent : PubSubEvent<string>{}}
2. 发布事件
用户点击导航菜单时，触发NavCommand，然后发布命令。
private DelegateCommand<object> navCommand;public DelegateCommand<object> NavCommand{get{if (navCommand == null){navCommand = new DelegateCommand<object>(Navigation);}return navCommand;}}private void Navigation(object obj) {var menuItem = (HamburgerMenuItem)obj;if (menuItem != null) {var tag = menuItem.Tag;if (tag!=null) {this.eventAggregator.GetEvent<NavEvent>().Publish(tag.ToString());}}}
3. 订阅命令
在主窗口，订阅命令，当收到命令时，再初始化模块信息，如下所示：
namespace SIMS.ViewModels{public class MainWindowViewModel:BindableBase{private IEventAggregator eventAggregator;private IContainerExtension _container;private IRegionManager _regionManager;private IDialogService _dialogService;public MainWindowViewModel(IContainerExtension container, IRegionManager regionManager, IEventAggregator eventAggregator,IDialogService dialogService) {this._container = container;this._regionManager = regionManager;this.eventAggregator = eventAggregator;this._dialogService = dialogService;//弹出登录窗口this._dialogService.ShowDialog("Login", null, LoginCallback, "MetroDialogWindow");this.eventAggregator.GetEvent<NavEvent>().Subscribe(Navigation);}private void LoginCallback(IDialogResult dialogResult) {if (dialogResult.Result != ButtonResult.OK) {Application.Current.Shutdown();}}#region 事件和命令private DelegateCommand loadedCommand;public DelegateCommand LoadedCommand{get {if (loadedCommand == null) {loadedCommand = new DelegateCommand(Loaded);}return loadedCommand; }}private void Loaded() {InitInfo();}private void InitInfo() {var header = _container.Resolve<Header>();IRegion headerRegion = _regionManager.Regions["HeaderRegion"];headerRegion.Add(header);//var footer = _container.Resolve<Footer>();IRegion footerRegion = _regionManager.Regions["FooterRegion"];footerRegion.Add(footer);var welcome = _container.Resolve<Welcome>();IRegion welcomeRegion = _regionManager.Regions["ContentRegion"];welcomeRegion.Add(welcome);}private void Navigation(string source) {_regionManager.RequestNavigate("ContentRegion", source);//MessageBox.Show(source);}#endregion}}
注意：一般情况下，只有在不同模块时，才使用事件聚合器进行事件的订阅和发布。如果是同一模块，则没有必要。
核心代码
模块的配置
各个模块之间相互独立，所以在主模块中进行加载时，需要先进行配置。模块加载的方式有很多种，本例采用App.config配置方式，如下所示：
<?xml version="1.0" encoding="utf-8" ?><configuration><configSections><section name="modules" type="Prism.Modularity.ModulesConfigurationSection, Prism.Wpf" /></configSections><startup></startup><modules><module assemblyFile="SIMS.NavigationModule.dll" moduleType="SIMS.NavigationModule.NavigationModule, SIMS.NavigationModule, Version=1.0.0.0, Culture=neutral, PublicKeyToken=null" moduleName="NavigationModule" startupLoaded="True" /><module assemblyFile="SIMS.ScoreModule.dll" moduleType="SIMS.ScoreModule.ScoreModule, SIMS.ScoreModule, Version=1.0.0.0, Culture=neutral, PublicKeyToken=null" moduleName="ScoreModule" startupLoaded="True" /><module assemblyFile="SIMS.StudentModule.dll" moduleType="SIMS.StudentModule.StudentModule, SIMS.StudentModule, Version=1.0.0.0, Culture=neutral, PublicKeyToken=null" moduleName="StudentModule" startupLoaded="True" /><module assemblyFile="SIMS.ClassesModule.dll" moduleType="SIMS.ClassesModule.ClassesModule, SIMS.ClassesModule, Version=1.0.0.0, Culture=neutral, PublicKeyToken=null" moduleName="ClassesModule" startupLoaded="True" /><module assemblyFile="SIMS.CourseModule.dll" moduleType="SIMS.CourseModule.CourseModule, SIMS.CourseModule, Version=1.0.0.0, Culture=neutral, PublicKeyToken=null" moduleName="CourseModule" startupLoaded="True" /><module assemblyFile="SIMS.SysManagementModule.dll" moduleType="SIMS.SysManagementModule.SysManagementModule, SIMS.SysManagementModule, Version=1.0.0.0, Culture=neutral, PublicKeyToken=null" moduleName="SysManagementModule" startupLoaded="True" /></modules></configuration>
启动入口App.xaml，可以用来配置资源字典等初始化操作，如下所示：
<prism:PrismApplication x:Class="SIMS.App"xmlns="http://schemas.microsoft.com/winfx/2006/xaml/presentation"xmlns:x="http://schemas.microsoft.com/winfx/2006/xaml"xmlns:local="clr-namespace:SIMS"xmlns:mah="http://metro.mahapps.com/winfx/xaml/controls"xmlns:prism="http://prismlibrary.com/"><Application.Resources><ResourceDictionary><ResourceDictionary.MergedDictionaries><ResourceDictionary Source="pack://application:,,,/MahApps.Metro;component/Styles/Controls.xaml" /><ResourceDictionary Source="pack://application:,,,/MahApps.Metro;component/Styles/Fonts.xaml" /><ResourceDictionary Source="pack://application:,,,/MahApps.Metro;component/Styles/Themes/Light.Blue.xaml" /><ResourceDictionary Source="/Icons/Icons.xaml"></ResourceDictionary></ResourceDictionary.MergedDictionaries></ResourceDictionary></Application.Resources></prism:PrismApplication>
启动入口App.xaml.cs，应用程序需要继承PrismApplication基类，才是一个Prism应用程序。在此文件中初始化App.config中配置的模块。如下所示：
namespace SIMS{/// <summary>/// Interaction logic for App.xaml/// </summary>public partial class App : PrismApplication{protected override Window CreateShell(){return Container.Resolve<MainWindow>();}protected override void RegisterTypes(IContainerRegistry containerRegistry){containerRegistry.RegisterDialog<Login, LoginViewModel>(nameof(Login));containerRegistry.Register<IDialogWindow, MetroDialogWindow>("MetroDialogWindow");}protected override IModuleCatalog CreateModuleCatalog(){return new ConfigurationModuleCatalog();}}}
主窗口MainWindow.xaml页面布局，如下所示：
<mahApps:MetroWindow x:Class="SIMS.Views.MainWindow"xmlns="http://schemas.microsoft.com/winfx/2006/xaml/presentation"xmlns:x="http://schemas.microsoft.com/winfx/2006/xaml"xmlns:d="http://schemas.microsoft.com/expression/blend/2008"xmlns:mc="http://schemas.openxmlformats.org/markup-compatibility/2006"xmlns:local="clr-namespace:SIMS"mc:Ignorable="d"xmlns:prism="http://prismlibrary.com/"xmlns:mahApps="http://metro.mahapps.com/winfx/xaml/controls"xmlns:i="http://schemas.microsoft.com/xaml/behaviors"prism:ViewModelLocator.AutoWireViewModel="True"mahApps:Title="SIMS--Student Information Management System"mahApps:TitleCharacterCasing="Normal"d:DesignHeight="1080" d:DesignWidth="1920"WindowState="Maximized"><Window.Resources><ResourceDictionary><ResourceDictionary.MergedDictionaries><ResourceDictionary Source="pack://application:,,,/MahApps.Metro;component/Styles/Themes/Light.Blue.xaml" /></ResourceDictionary.MergedDictionaries></ResourceDictionary></Window.Resources><i:Interaction.Triggers><i:EventTrigger EventName="Loaded"><i:InvokeCommandAction Command="{Binding LoadedCommand}"></i:InvokeCommandAction></i:EventTrigger></i:Interaction.Triggers><Grid ShowGridLines="True"><Grid.RowDefinitions><RowDefinition Height="Auto"></RowDefinition><RowDefinition Height="*"></RowDefinition><RowDefinition Height="Auto"></RowDefinition></Grid.RowDefinitions><Grid.ColumnDefinitions><ColumnDefinition Width="Auto"></ColumnDefinition><ColumnDefinition Width="*"></ColumnDefinition></Grid.ColumnDefinitions><ContentControl prism:RegionManager.RegionName="HeaderRegion" Grid.Column="0" Grid.Row="0" Grid.ColumnSpan="2" MinHeight="80"></ContentControl><ContentControl prism:RegionManager.RegionName="NavRegion" Grid.Row="1" Grid.Column="0"></ContentControl><ContentControl prism:RegionManager.RegionName="ContentRegion" Grid.Row="1" Grid.Column="1"></ContentControl><ContentControl prism:RegionManager.RegionName="FooterRegion" Grid.Row="2" Grid.Column="0" Grid.ColumnSpan="2" MinHeight="50"></ContentControl></Grid></mahApps:MetroWindow>
主窗口MainWindowViewModel，代码如下：
namespace SIMS.ViewModels{public class MainWindowViewModel:BindableBase{private IEventAggregator eventAggregator;private IContainerExtension _container;private IRegionManager _regionManager;private IDialogService _dialogService;public MainWindowViewModel(IContainerExtension container, IRegionManager regionManager, IEventAggregator eventAggregator,IDialogService dialogService) {this._container = container;this._regionManager = regionManager;this.eventAggregator = eventAggregator;this._dialogService = dialogService;//弹出登录窗口this._dialogService.ShowDialog("Login", null, LoginCallback, "MetroDialogWindow");this.eventAggregator.GetEvent<NavEvent>().Subscribe(Navigation);}private void LoginCallback(IDialogResult dialogResult) {if (dialogResult.Result != ButtonResult.OK) {Application.Current.Shutdown();}}#region 事件和命令private DelegateCommand loadedCommand;public DelegateCommand LoadedCommand{get {if (loadedCommand == null) {loadedCommand = new DelegateCommand(Loaded);}return loadedCommand; }}private void Loaded() {InitInfo();}private void InitInfo() {var header = _container.Resolve<Header>();IRegion headerRegion = _regionManager.Regions["HeaderRegion"];headerRegion.Add(header);//var footer = _container.Resolve<Footer>();IRegion footerRegion = _regionManager.Regions["FooterRegion"];footerRegion.Add(footer);var welcome = _container.Resolve<Welcome>();IRegion welcomeRegion = _regionManager.Regions["ContentRegion"];welcomeRegion.Add(welcome);}private void Navigation(string source) {_regionManager.RequestNavigate("ContentRegion", source);//MessageBox.Show(source);}#endregion}}
导航页面Navigation.xaml页面采用MAH的Hamburger菜单，如下所示：
<UserControl x:Class="SIMS.NavigationModule.Views.Navigation"xmlns="http://schemas.microsoft.com/winfx/2006/xaml/presentation"xmlns:x="http://schemas.microsoft.com/winfx/2006/xaml"xmlns:d="http://schemas.microsoft.com/expression/blend/2008"xmlns:iconPacks="http://metro.mahapps.com/winfx/xaml/iconpacks"xmlns:local="clr-namespace:SIMS.NavigationModule.Views"xmlns:mah="http://metro.mahapps.com/winfx/xaml/controls"xmlns:mc="http://schemas.openxmlformats.org/markup-compatibility/2006"xmlns:i="http://schemas.microsoft.com/xaml/behaviors"xmlns:prism="http://prismlibrary.com/"prism:ViewModelLocator.AutoWireViewModel="True"d:DesignHeight="300"d:DesignWidth="240"mc:Ignorable="d"><UserControl.Resources><ResourceDictionary><ResourceDictionary.MergedDictionaries><ResourceDictionary Source="pack://application:,,,/MahApps.Metro;component/Styles/Controls.xaml" /><ResourceDictionary Source="pack://application:,,,/MahApps.Metro;component/Styles/Fonts.xaml" /><ResourceDictionary Source="pack://application:,,,/MahApps.Metro;component/Styles/Themes/Light.Blue.xaml" /></ResourceDictionary.MergedDictionaries><!-- This is the template for all menu items. In this sample we use the glyph items. --><DataTemplate x:Key="HamburgerMenuItem" DataType="{x:Type mah:HamburgerMenuGlyphItem}"><DockPanel Height="48" LastChildFill="True"><Grid x:Name="IconPart"DockPanel.Dock="Left"><Image Margin="12"HorizontalAlignment="Center"VerticalAlignment="Center"Source="{Binding Glyph}" /></Grid><TextBlock x:Name="TextPart"VerticalAlignment="Center"FontSize="16"Text="{Binding Label}" /></DockPanel></DataTemplate><DataTemplate x:Key="HamburgerOptionsMenuItem" DataType="{x:Type mah:HamburgerMenuIconItem}"><DockPanel Height="48" LastChildFill="True"><ContentControl x:Name="IconPart"Content="{Binding Icon}"DockPanel.Dock="Left"Focusable="False"IsTabStop="False" /><TextBlock x:Name="TextPart"VerticalAlignment="Center"FontSize="16"Text="{Binding Label}" /></DockPanel></DataTemplate></ResourceDictionary></UserControl.Resources><Grid Background="{DynamicResource MahApps.Brushes.Accent}"><Grid.ColumnDefinitions><ColumnDefinition Width="Auto" /></Grid.ColumnDefinitions><mah:HamburgerMenu x:Name="HamburgerMenuControl" Grid.Column="0"DisplayMode="CompactOverlay"Margin="0"IsPaneOpen="True"HamburgerButtonHelpText="Please click me"HamburgerButtonClick="HamburgerMenuControl_HamburgerButtonClick"ItemTemplate="{StaticResource HamburgerMenuItem}"OptionsItemTemplate="{StaticResource HamburgerOptionsMenuItem}"ItemsSource="{Binding NavItems}"VerticalScrollBarOnLeftSide="False"><i:Interaction.Triggers><i:EventTrigger EventName="ItemInvoked"><i:InvokeCommandAction Command="{Binding NavCommand}" CommandParameter="{Binding ElementName=HamburgerMenuControl, Path=SelectedItem}" ></i:InvokeCommandAction></i:EventTrigger></i:Interaction.Triggers><!-- Header --><mah:HamburgerMenu.HamburgerMenuHeaderTemplate><DataTemplate><TextBlock HorizontalAlignment="Center"VerticalAlignment="Center"FontSize="16"Foreground="White"Text="" /></DataTemplate></mah:HamburgerMenu.HamburgerMenuHeaderTemplate><mah:HamburgerMenu.OptionsItemsSource><mah:HamburgerMenuItemCollection><mah:HamburgerMenuIconItem x:Name="AboutOption"Label="About"><mah:HamburgerMenuIconItem.Icon><iconPacks:PackIconMaterial Width="22"Height="22"HorizontalAlignment="Center"VerticalAlignment="Center"Kind="Help" /></mah:HamburgerMenuIconItem.Icon><mah:HamburgerMenuIconItem.Tag><TextBlock HorizontalAlignment="Center"VerticalAlignment="Center"FontSize="28"FontWeight="Bold">About</TextBlock></mah:HamburgerMenuIconItem.Tag></mah:HamburgerMenuIconItem></mah:HamburgerMenuItemCollection></mah:HamburgerMenu.OptionsItemsSource><!-- Content --><mah:HamburgerMenu.ContentTemplate><DataTemplate><Grid x:Name="ContentGrid"><Grid.RowDefinitions><RowDefinition Height="48" /><RowDefinition /></Grid.RowDefinitions><Border Grid.Row="0"Margin="-1 0 -1 0"Background="#7A7A7A"><TextBlock x:Name="Header"HorizontalAlignment="Center"VerticalAlignment="Center"FontSize="24"Foreground="White"Text="{Binding Label}" /></Border><mah:TransitioningContentControl Grid.Row="1"Content="{Binding}"RestartTransitionOnContentChange="True"Transition="Default"><mah:TransitioningContentControl.Resources><DataTemplate DataType="{x:Type mah:HamburgerMenuGlyphItem}"><Image Source="{Binding Glyph, Mode=OneWay, Converter={mah:NullToUnsetValueConverter}}" /></DataTemplate><DataTemplate DataType="{x:Type mah:HamburgerMenuIconItem}"><ContentControl Content="{Binding Tag, Mode=OneWay}"Focusable="True"IsTabStop="False" /></DataTemplate></mah:TransitioningContentControl.Resources></mah:TransitioningContentControl></Grid></DataTemplate></mah:HamburgerMenu.ContentTemplate></mah:HamburgerMenu></Grid></UserControl>
导航页面NavigationViewModel页面代码，如下所示：
namespace SIMS.NavigationModule.ViewModels{public class NavigationViewModel : BindableBase{#region 属性和构造函数private IEventAggregator eventAggregator;private List<HamburgerMenuItemBase> navItems;public List<HamburgerMenuItemBase> NavItems { get { return navItems; } set { SetProperty(ref navItems, value); } }public NavigationViewModel(IEventAggregator eventAggregator){this.eventAggregator = eventAggregator;navItems = new List<HamburgerMenuItemBase>();navItems.Add(new HamburgerMenuHeaderItem() { Label = "学生管理"});navItems.Add(new HamburgerMenuGlyphItem() { Label="学生管理",Tag="Student" ,Glyph="/images/icon_student.png" });navItems.Add(new HamburgerMenuGlyphItem() { Label = "班级管理",Tag="Classes" , Glyph = "/images/icon_classes.png" });navItems.Add(new HamburgerMenuGlyphItem() { Label = "课程管理", Tag="Course" , Glyph = "/images/icon_course.png" });navItems.Add(new HamburgerMenuGlyphItem() { Label = "成绩管理" ,Tag="Score", Glyph = "/images/icon_score.png" });navItems.Add(new HamburgerMenuHeaderItem() { Label = "系统管理", });navItems.Add(new HamburgerMenuGlyphItem() { Label = "个人信息",Tag="Personal", Glyph = "/images/icon_personal.png" });navItems.Add(new HamburgerMenuGlyphItem() { Label = "用户管理",Tag="User", Glyph = "/images/icon_user.png" });navItems.Add(new HamburgerMenuGlyphItem() { Label = "角色管理",Tag="Role", Glyph = "/images/icon_role.png" });}#endregion#region 命令private DelegateCommand<object> navCommand;public DelegateCommand<object> NavCommand{get{if (navCommand == null){navCommand = new DelegateCommand<object>(Navigation);}return navCommand;}}private void Navigation(object obj) {var menuItem = (HamburgerMenuItem)obj;if (menuItem != null) {var tag = menuItem.Tag;if (tag!=null) {this.eventAggregator.GetEvent<NavEvent>().Publish(tag.ToString());}}}#endregion}}
示例截图

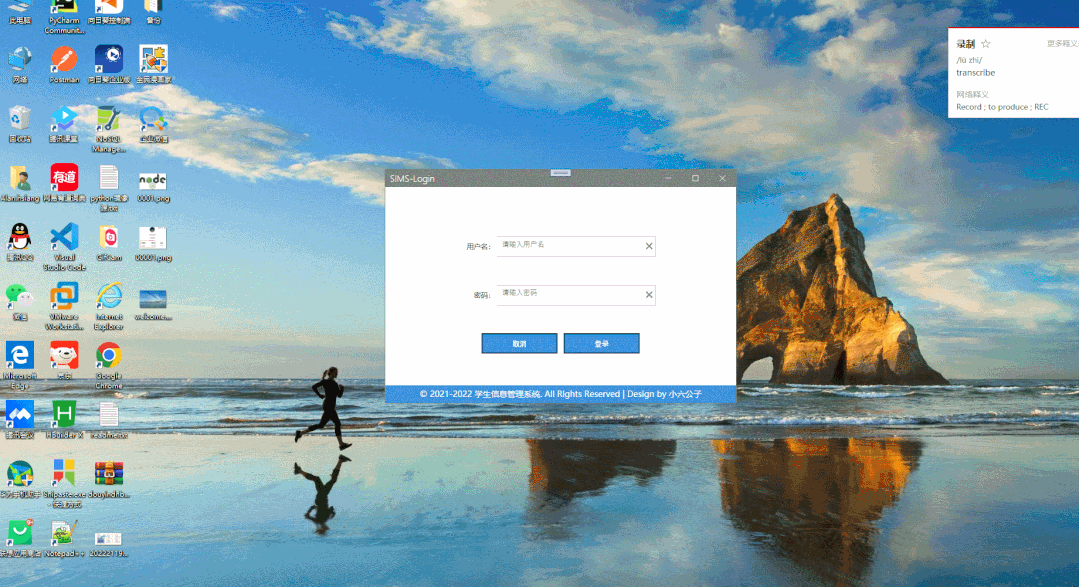

本示例目前主要实现了登录，及主页面布局，导航等功能，如下所示：
备注
以上是本文介绍的关于学生信息管理系统的主要内容，旨在抛砖引玉一起学习，共同进步。
