基于.Net开发的对比Html效果差异的开源项目

说到对比两个文件差异,对于我们程序员来说,可以说是天天碰到。我们经常需要对比两份代码是否不同。但今天给大家推荐的是,一个对比两份Html代码最终效果差异的项目。

项目简介

一个基于.Net 4.5开发的对比Html文件、片段效果差异的项目。两份Html效果不一样的地方会通过颜色、删除线、背景色分别标记出来。

该项目使用场景一般是针对一些文章排版、错别字显示等情况,项目比较简单,感兴趣的可以了解下。.

技术架构

1、平台:基于.Net Framework 4.5、netstandard2.0开发

2、开发工具:Visual Studio 2017

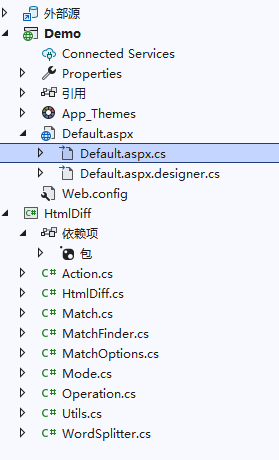

项目结构

基于.Net开发的对比Html效果差异的开源项目

使用方法

对比Html片段

var oldText = @"<p><i>This is</i> some sample text to <strong>demonstrate</strong> the capability of the <strong>HTML diff tool</strong>.</p><p>It is based on the <b>Ruby</b> implementation found <a href='http://github.com/myobie/htmldiff'>here</a>. Note how the link has no tooltip</p><p>What about a number change: 123456?</p><table cellpadding='0' cellspacing='0'><tr><td>Some sample text</td><td>Some sample value</td></tr><tr><td>Data 1 (this row will be removed)</td><td>Data 2</td></tr></table> Here is a number 2 32<br><br> This date: 1 Jan 2016 is about to change (note how it is treated as a block change!)";
var newText = @"<p>This is some sample <strong>text to</strong> demonstrate the awesome capabilities of the <strong>HTML <u>diff</u> tool</strong>.</p><br/><br/>Extra spacing here that was not here before.<p>It is <i>based</i> on the Ruby implementation found <a title='Cool tooltip' href='http://github.com/myobie/htmldiff'>here</a>. Note how the link has a tooltip now and the HTML diff algorithm has preserved formatting.</p><p>What about a number change: 123356?</p><table cellpadding='0' cellspacing='0'><tr><td>Some sample <strong>bold text</strong></td><td>Some sample value</td></tr></table> Here is a number 2 <sup>32</sup><br><br> This date: 22 Feb 2017 is about to change (note how it is treated as a block change!)";
var diffHelper = new HtmlDiff.HtmlDiff(oldText, newText);litOldText.Text = oldText;litNewText.Text = newText;
// Lets add a block expression to group blocks we care about (such as dates)diffHelper.AddBlockExpression(new Regex(@"[\d]{1,2}[\s]*(Jan|Feb)[\s]*[\d]{4}", RegexOptions.IgnoreCase));
litDiffText.Text = diffHelper.Build();

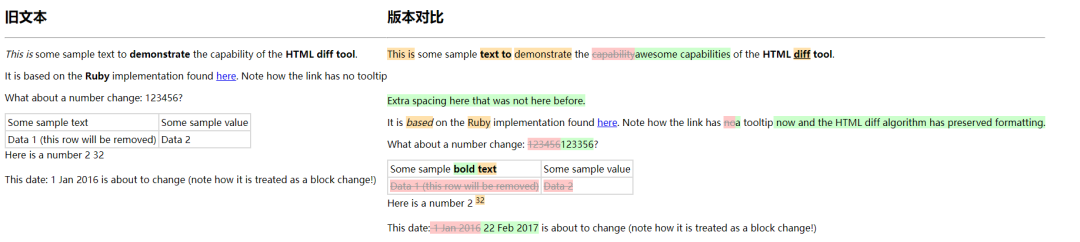

效果

通过效果图,我们可以看出:
1、不一样的地方,通过橙色背景色标记;
2、增加的地方,通过绿色背景色标记;
3、删除的地方,通过粉色背景色+删除线标记。

基于.Net开发的对比Html效果差异的开源项目

自定义对比效果

标记效果,也可以自定义,只需在Css文件修改样式

/* ***************************************** Diff related styles*****************************************/
ins {background-color: #cfc;text-decoration:inherit;
}
del {color: #999;background-color:#FEC8C8;}
ins.mod {background-color: #FFE1AC;}
项目地址:https://github.com/Rohland/htmldiff.net
